RZ 3016 CA (966612302) - Husqvarna 30" Zero-Turn Mower, CARB (2011-03) MOWER DECK / CUTTING DECK Parts Diagram

30" Zero-Turn Mower, CARB

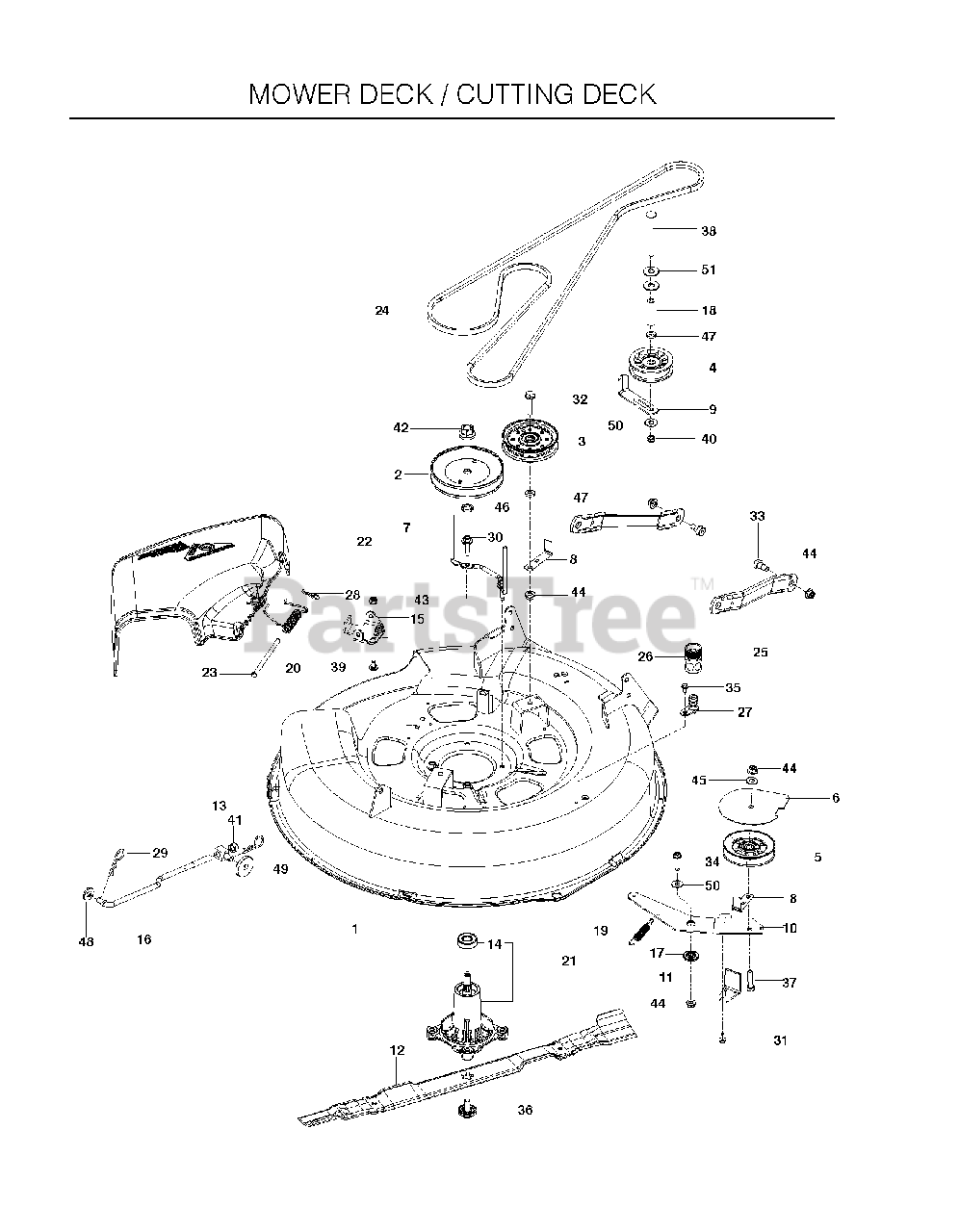

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Husqvarna 574453401

DECK.SVC.W/DECALS.30".RZ.ORN

$

$

Not available

2

Husqvarna 532199791

PULLEY MANDREL 5.0"

$31.99

$

In Stock, only 2 left!

0

3

Husqvarna 532175820

PULLEY.IDLER.FLAT.46.PR.DR.

$

$

Not available

4

Husqvarna 539110311

PULLEY, IDLER RAKE & ZTR

$17.99

$

In Stock, Qty 20+

0

5

Husqvarna 532173902

Idler Pulley, 4.25
(Superseded to 532146763)

$

$

Not available

6

Husqvarna 573970402

COVER, PULLEY, BLACK

$21.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532400140

BELT KEEPER.MANDREL.38"COATED

$53.99

$

In Stock, only 1 left!

0

8

Husqvarna 529311701

KEEPER, BELT, BLACK

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 525851801

GUIDE, BELT

$13.99

$

In Stock, only 1 left!

0

10

Husqvarna 574172804

ARM, IDLER 30, BLK

$36.99

$

Usually ships in 3-10 days

0

11

Husqvarna 529311801

ARM, LH BRAKE
(Superseded to 532400130)

$18.99

$

In Stock, only 2 left!

0

12

Husqvarna 532419274

BLADE.MOWER.BAGGING.30"

$34.99

$

In Stock, only 1 left!

0

$17.99

$

In Stock, only 2 left!

0

14

Husqvarna 539112050

BEARING, BALL

$7.49

$

In Stock, only 4 left!

0

15

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 8

0

16

Husqvarna 532195740

LINK LIFT SUSP. FRONT MOWER
(Superseded to 581506902)

$11.99

$

In Stock, Qty 15

0

17

Husqvarna 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

18

Husqvarna 525848801

SPACER .39 ID X 2.25

$8.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532401872

SPRING RETURN

$5.99

$

In Stock, Qty 7

0

20

Husqvarna 539107609

TORSION SPRING

$5.99

$

In Stock, Qty 20+

0

21

Husqvarna 539112057

MANDREL GREASABLE
(Superseded to 587820301)

$56.99

$

In Stock, Qty 11

0

22

Husqvarna 532417344

SHIELD.DEFLECT.MWR.30S.BLACK

$53.99

$

In Stock, only 1 left!

0

23

Husqvarna 539110736

PIN-CLEVIS 5/16 DIA X 5.19 ZD

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 574173002

BELT, 100" EL

$66.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

$14.99

$

In Stock, Qty 5

0

26

Husqvarna 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 6

0

27

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 17

0

28

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

31

Husqvarna 539107631

SCREW- 1/4-20 X 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 539990701

BLT 3/8-16X1-3/4 WHIZLK ZN SP

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539113621

SB 3/8-16 X 3/8 SKT HD ZD
(Superseded to 596241101)

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539110025

BOLT 3/8-16 X 1 1/2 ZINC CLEAR

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539108461

BOLT 1/4-20 X 1/2 HWST

$4.99

$

In Stock, Qty 5

0

36

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 10

0

38

Husqvarna 525848601

RHSNB 3/8-16 X 4 GR5 ZD

$5.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

In Stock, only 3 left!

0

41

Husqvarna 573975201

NUT, 7/16-20 HEX NYLOC ZC

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

43

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

44

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

45

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

46

Husqvarna 539107520

WASHER-SPACER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 539109562

WASHER 3/8 X 3/4 X .187 TK

$4.99

$

In Stock, Qty 16

0

48

Husqvarna 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

49

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

50

Husqvarna 539990517

RP WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

51

Husqvarna 539104864

WASHER 7/16 FLAT ZD
(Superseded to 596437601)

$3.99

$

Usually ships in 3-10 days

0
