RZ 3016 CA (966612302) - Husqvarna 30" Zero-Turn Mower, CARB (2011-03) IGNITION SYSTEM Parts Diagram

30" Zero-Turn Mower, CARB

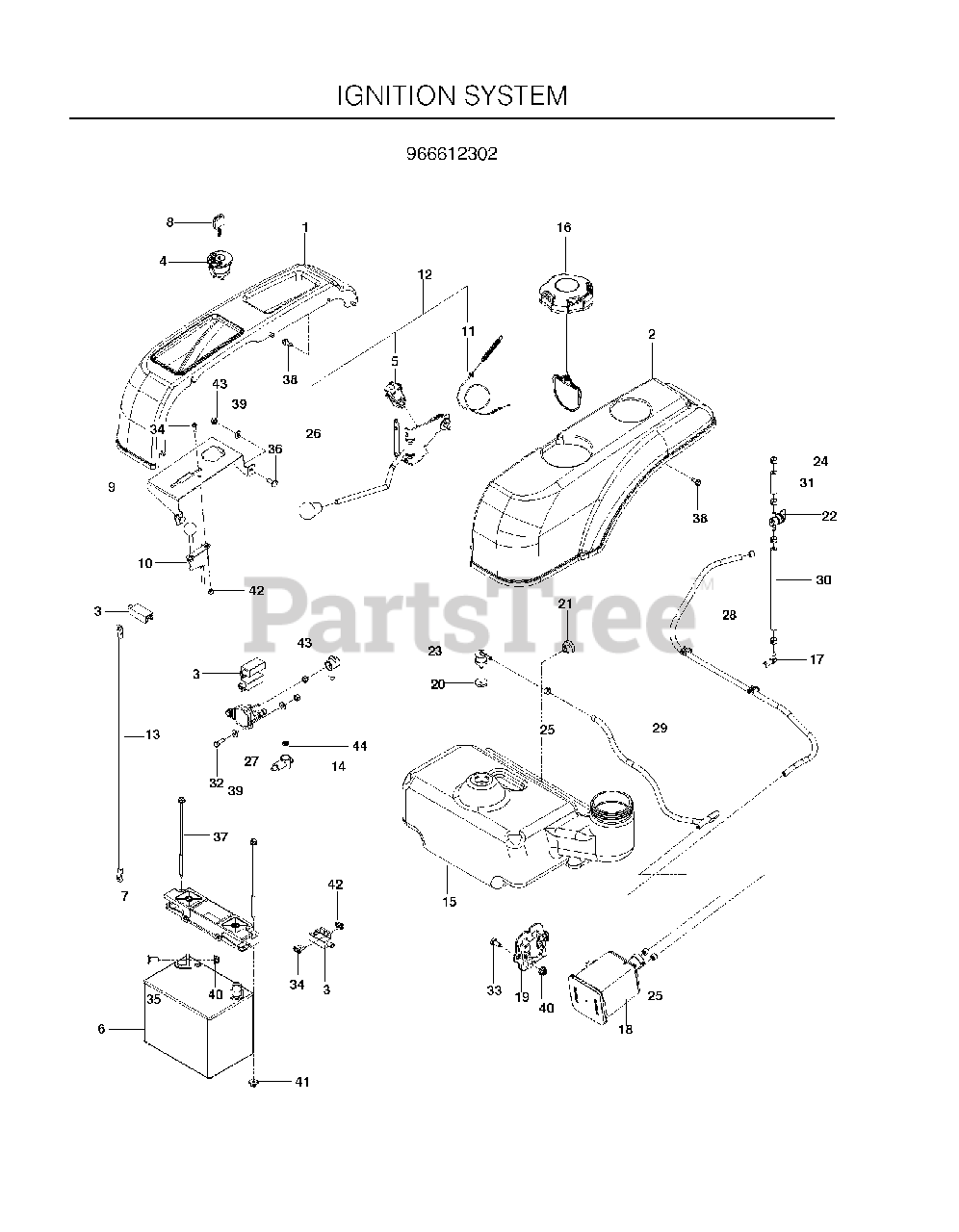

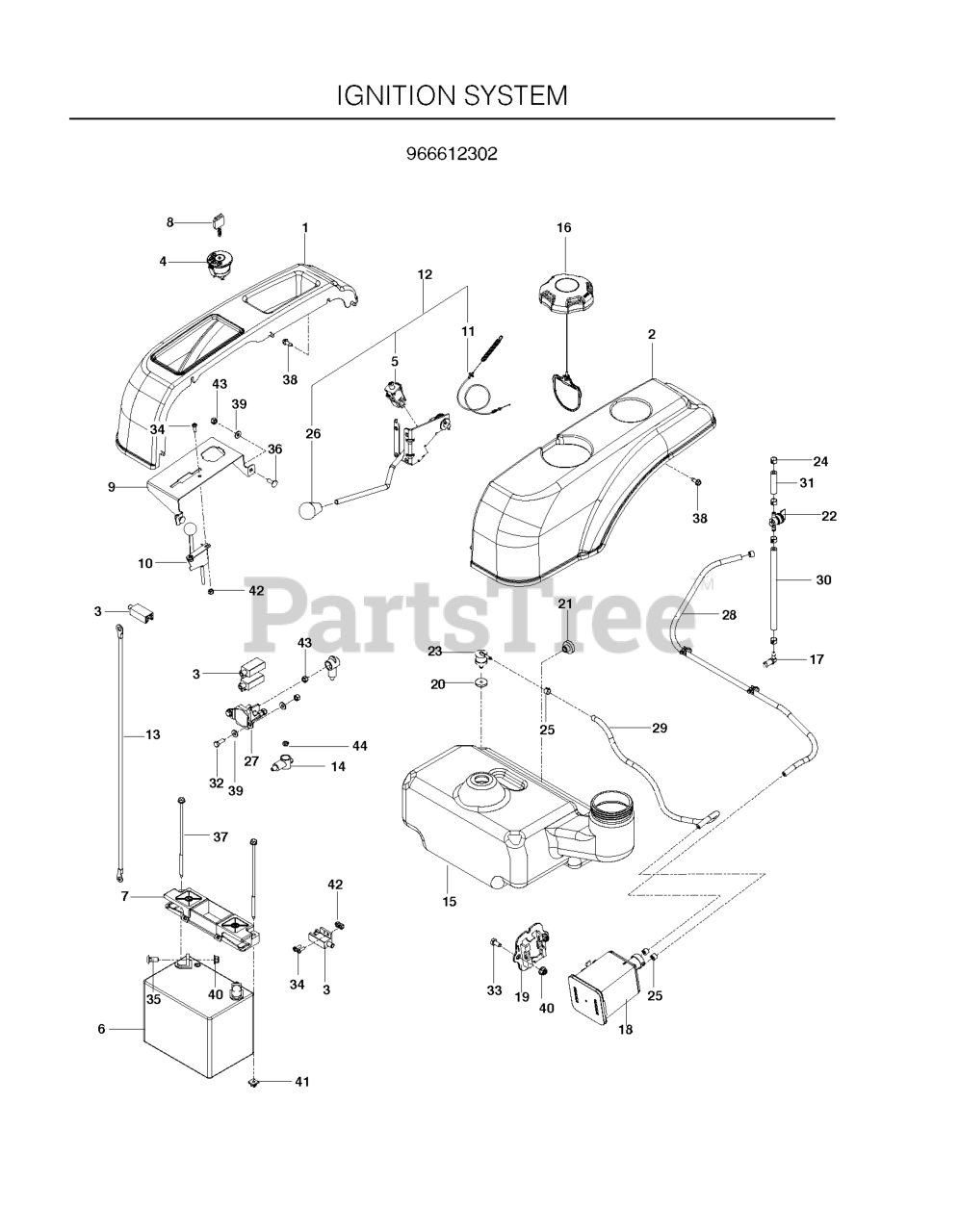

IGNITION SYSTEM Parts Diagram

  • Title

1

Husqvarna 525594701

FENDER, RZ 30/38 RT

$

$

Not available

2

Husqvarna 525594702

FENDER, RZ 30/38 LT

$

$

Not available

3

Husqvarna 539101080

SWITCH, INTERLOCK

$20.99

$

In Stock, Qty 20+

0

4

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$28.99

$

In Stock, Qty 20+

0

5

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 20+

0

6

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

7

Husqvarna 539107628

BATTERY HOLD DOWN

$10.99

$

In Stock, Qty 7

0

8

Husqvarna 539107544

KEY
(Superseded to 532140401)

$6.99

$

In Stock, Qty 20+

0

9

Husqvarna 525598601

MOUNT, CONTROLS, BLK

$54.99

$

Usually ships in 3-10 days

0

10

Husqvarna 522730101

CABLE, THROTTLE

$31.99

$

In Stock, Qty 5

0

11

Husqvarna 532193235

CABLE.CLUTCH.38".SERVICE

$56.99

$

In Stock, Qty 13

0

12

Husqvarna 575661501

ASM, CLUTCH ENGAGE W/CABLE

$62.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539110068

BATTERY CABLE, NEGATIVE

$9.49

$

Usually ships in 3-10 days

0

14

Husqvarna 539116400

TERMINAL COVER-SM

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 576369501

TANK, FUEL EPA
(Superseded to 576646403)

$262.99

$

Usually ships in 3-10 days

0

16

Husqvarna 575018101

CAP, FUEL
(Superseded to 575018103)

$37.99

$

In Stock, only 3 left!

0

17

Husqvarna 539110432

STEM, FUEL TANK
(Superseded to 532139277)

$8.99

$

In Stock, Qty 20+

0

18

Husqvarna 532414114

CANNISTER, CARBON

$68.99

$

Usually ships in 3-10 days

0

19

Husqvarna 575242701

BRACKET, CANISTER

$10.99

$

Usually ships in 3-10 days

0

20

Husqvarna 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 539916325

FUEL VALVE

$47.99

$

In Stock, only 2 left!

0

23

Husqvarna 576618101

VALVE.FUEL.CHECK

$28.99

$

In Stock, Qty 20+

0

24

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

25

Husqvarna 575436501

CLAMP, HOSE

$6.49

$

In Stock, Qty 13

0

26

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 5

0

27

Husqvarna 539101714

SOLENOID

$28.99

$

Usually ships in 3-10 days

0

28

Husqvarna 575437802

FUEL LINE 33"
(Superseded to 575437801)

$17.99

$

Usually ships in 3-10 days

0

29

Husqvarna 574521305

HOSE, FUEL, 3/16" X 20"

$17.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539115736

HOSE 1/4 X 8

$7.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539121486

HOSE 1/4 X 2"

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539108392

HCS 5/16-18 X 5/8 GR 5 ZD
(Superseded to 596031601)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 19

0

35

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 539990074

RHSNB 1/4C X 3/4
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539107632

Bolt, 1/4-20 X 7.5

$

$

Not available

38

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

39

Husqvarna 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

40

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

41

Husqvarna 539107629

PUSH NUT-NYLON

$4.99

$

In Stock, only 1 left!

0

42

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

43

Husqvarna 539976978

RP_NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

44

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

Husqvarna 539104974

POST.CABLE LONG

Note: NOT SHOWN

$

$

Not available

Husqvarna 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

Note: NOT SHOWN

$11.99

$

In Stock, only 1 left!

0

Husqvarna 525744301

RP HARNESS, WIRING 30/38

Note: NOT SHOWN

$109.99

$

Usually ships in 3-10 days

0

Husqvarna 539976856

TIE, PLASTIC

$6.99

$

Usually ships in 3-10 days

0
