RZ 3016 CA (966612302) - Husqvarna 30" Zero-Turn Mower, CARB (2011-03) ENGINE PLATE Parts Diagram

30" Zero-Turn Mower, CARB

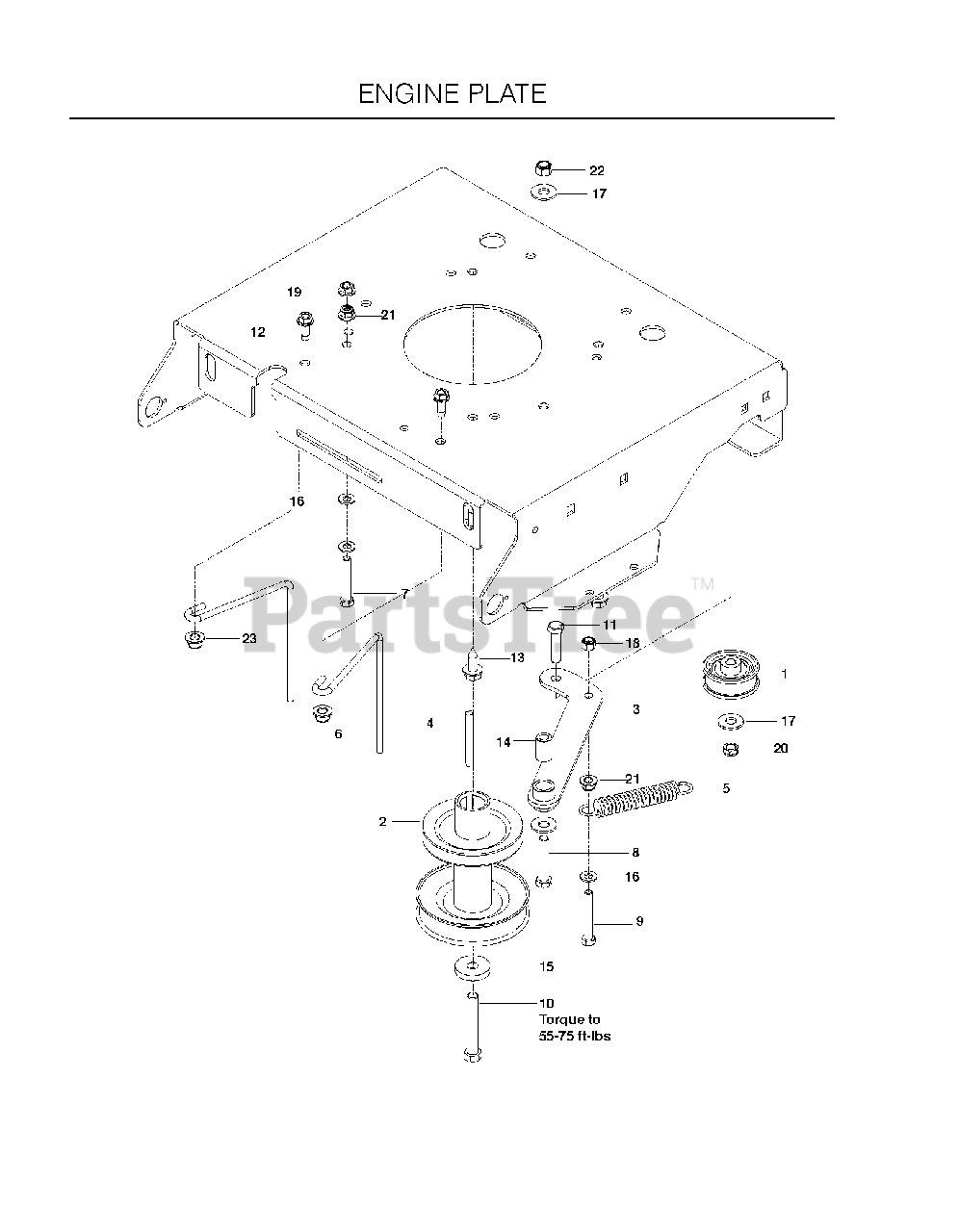

ENGINE PLATE Parts Diagram

  • Title

1

Husqvarna 539120812

PULLEY IDLER

$26.99

$

Usually ships in 3-10 days

0

2

Husqvarna 574872801

PULLEY, ENGINE 30"
(Superseded to 588586501)

$56.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539120990

IDLER WLDT.

$

$

Not available

4

Husqvarna 539917033

KEY 1/4 SQ X 2-1/2

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539116350

SPRING - 3.50

$9.49

$

In Stock, only 1 left!

0

6

Husqvarna 574172901

BELT GUIDE

$

$

Not available

7

Husqvarna 539976937

HCS 5/16-18X2

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 10

0

9

Husqvarna 539976938

CAPSCREW

$4.99

$

In Stock, only 2 left!

0

10

Husqvarna 539110065

HCS 7/16-20 X 2-3/4

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 532120616

HHFS 3/8-16 X 1.0 THD FORMING
(Superseded to 817120616)

$5.99

$

In Stock, Qty 17

0

14

Husqvarna 539115270

BUSHING

$7.49

$

In Stock, only 1 left!

0

15

Husqvarna 539115546

WASHER .43X1.38X.25

$4.99

$

In Stock, only 3 left!

0

16

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539990517

RP WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

21

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

22

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available
