RZ 3016 CA (966612302-04) - Husqvarna 30" Zero-Turn Mower, CARB (2015-04) MOWER DECK / CUTTING DECK Parts Diagram

30" Zero-Turn Mower, CARB

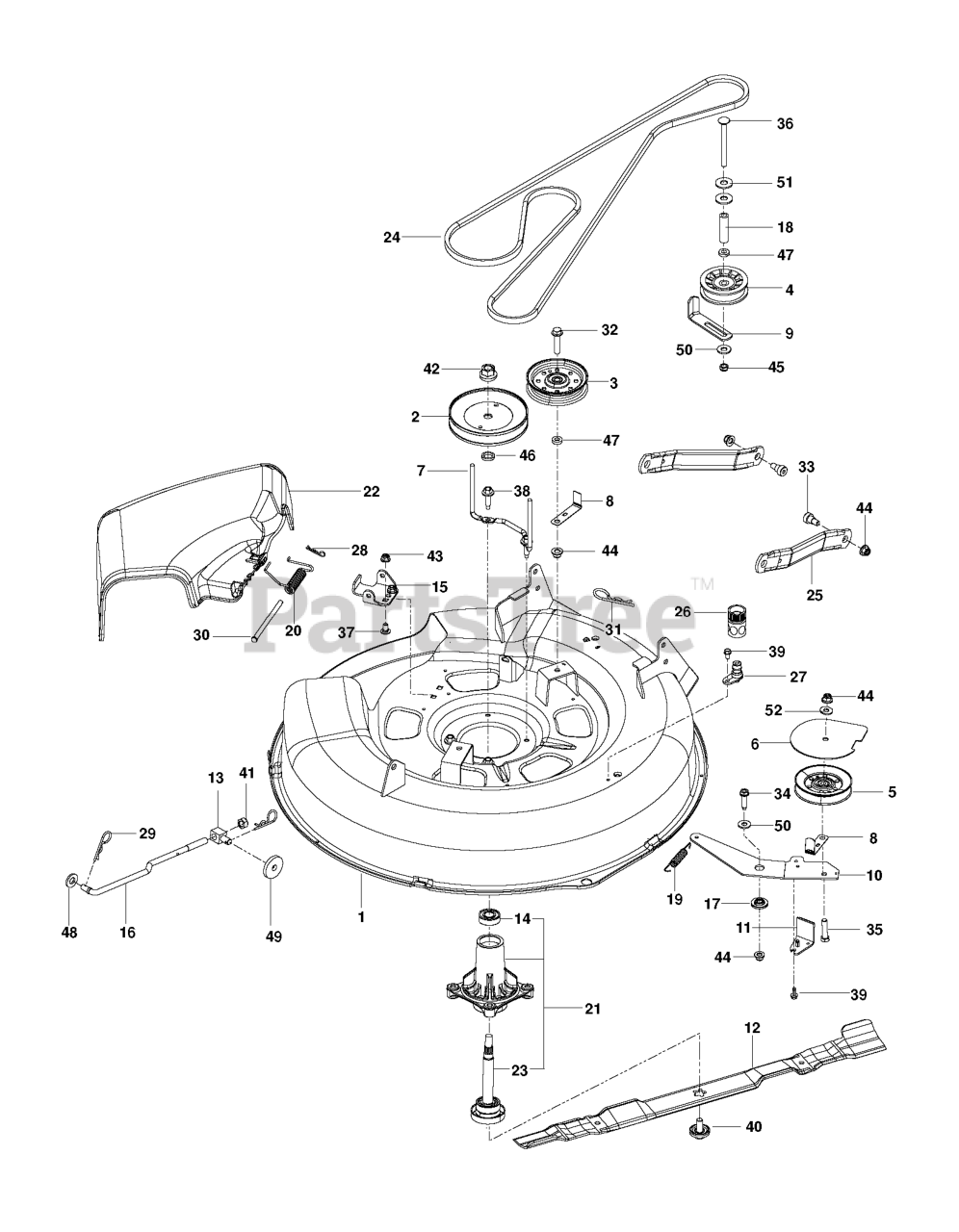

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

49

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

13

Husqvarna 581514301

SWIVEL.TRUNION.LINK.DECK.FRONT

$4.99

$

In Stock, only 1 left!

0

3

Husqvarna 532175820

PULLEY.IDLER.FLAT.46.PR.DR.

$

$

Not available

26

Husqvarna 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 6

0

38

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 16

0

43

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

52

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 525851801

GUIDE, BELT

$13.99

$

In Stock, only 1 left!

0

27

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 17

0

42

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

15

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 8

0

16

Husqvarna 532195740

LINK LIFT SUSP. FRONT MOWER
(Superseded to 581506902)

$11.99

$

In Stock, Qty 15

0

7

Husqvarna 532400140

BELT KEEPER.MANDREL.38"COATED

$53.99

$

In Stock, only 1 left!

0

10

Husqvarna 585053902

ARM.IDLER.30".RZ.X431

$8.99

$

Usually ships in 3-10 days

0

35

Husqvarna 874780632

CAP.SCREW.HEX.HD.3/8-16
(Superseded to 583614701)

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532420253

KEEPER.BELT.30"SRD
(Superseded to 529311701)

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532193216

SPRING.BRAKE.RETURN.38"

$7.49

$

In Stock, only 1 left!

0

34

Husqvarna 817490624

SCREW LT
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

37

Husqvarna 872110505

BOLT.CARR.5/16-18X5/8.SHORT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

1

Husqvarna 574453401

DECK.SVC.W/DECALS.30".RZ.ORN

Note: w/ SAFETY DECALS

$

$

Not available

50

Husqvarna 819141614

RP WASHER 3/8 FLAT
(Superseded to 539990517)

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 819171713

WASHER STEEL

$3.99

$

In Stock, Qty 8

0

45

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

33

Husqvarna 539113621

SB 3/8-16 X 3/8 SKT HD ZD
(Superseded to 596241101)

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

$14.99

$

In Stock, Qty 5

0

41

Husqvarna 573975201

NUT, 7/16-20 HEX NYLOC ZC

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 587253301

MANDREL.NONGREASEABLE.TALL
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

36

Husqvarna 525848601

RHSNB 3/8-16 X 4 GR5 ZD

$5.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532178102

SPRING, TORSION
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

40

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

2

Husqvarna 532199791

PULLEY MANDREL 5.0"

$31.99

$

In Stock, only 2 left!

0

24

Husqvarna 585054001

BELT DECK 99.60 EFL

$84.99

$

In Stock, only 1 left!

0

22

Husqvarna 532417344

SHIELD.DEFLECT.MWR.30S.BLACK

$53.99

$

In Stock, only 1 left!

0

12

Husqvarna 532419274

BLADE.MOWER.BAGGING.30"

$34.99

$

In Stock, only 1 left!

0

18

Husqvarna 525848801

SPACER .39 ID X 2.25

$8.99

$

Usually ships in 3-10 days

0

39

Husqvarna 817490408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 573970402

COVER, PULLEY, BLACK

$21.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990701

BLT 3/8-16X1-3/4 WHIZLK ZN SP

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532400130

BRAKE.ARM.LH.38"TEX.COATED

$18.99

$

In Stock, only 2 left!

0

30

Husqvarna 539110736

PIN-CLEVIS 5/16 DIA X 5.19 ZD

$3.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532165898

SPRING.RETAINER.YELLOW.ZINC

$7.49

$

Usually ships in 3-10 days

0

51

Husqvarna 539104864

WASHER 7/16 FLAT ZD
(Superseded to 596437601)

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

28

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539109562

WASHER 3/8 X 3/4 X .187 TK

$4.99

$

In Stock, Qty 16

0

44

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

14

Husqvarna 532110485

BEARING

$13.99

$

In Stock, Qty 11

0

29

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539110311

PULLEY, IDLER RAKE & ZTR

$17.99

$

In Stock, Qty 20+

0

5

Husqvarna 532173902

REPL BY 532 1467-63
(Superseded to 532146763)

$

$

Not available
