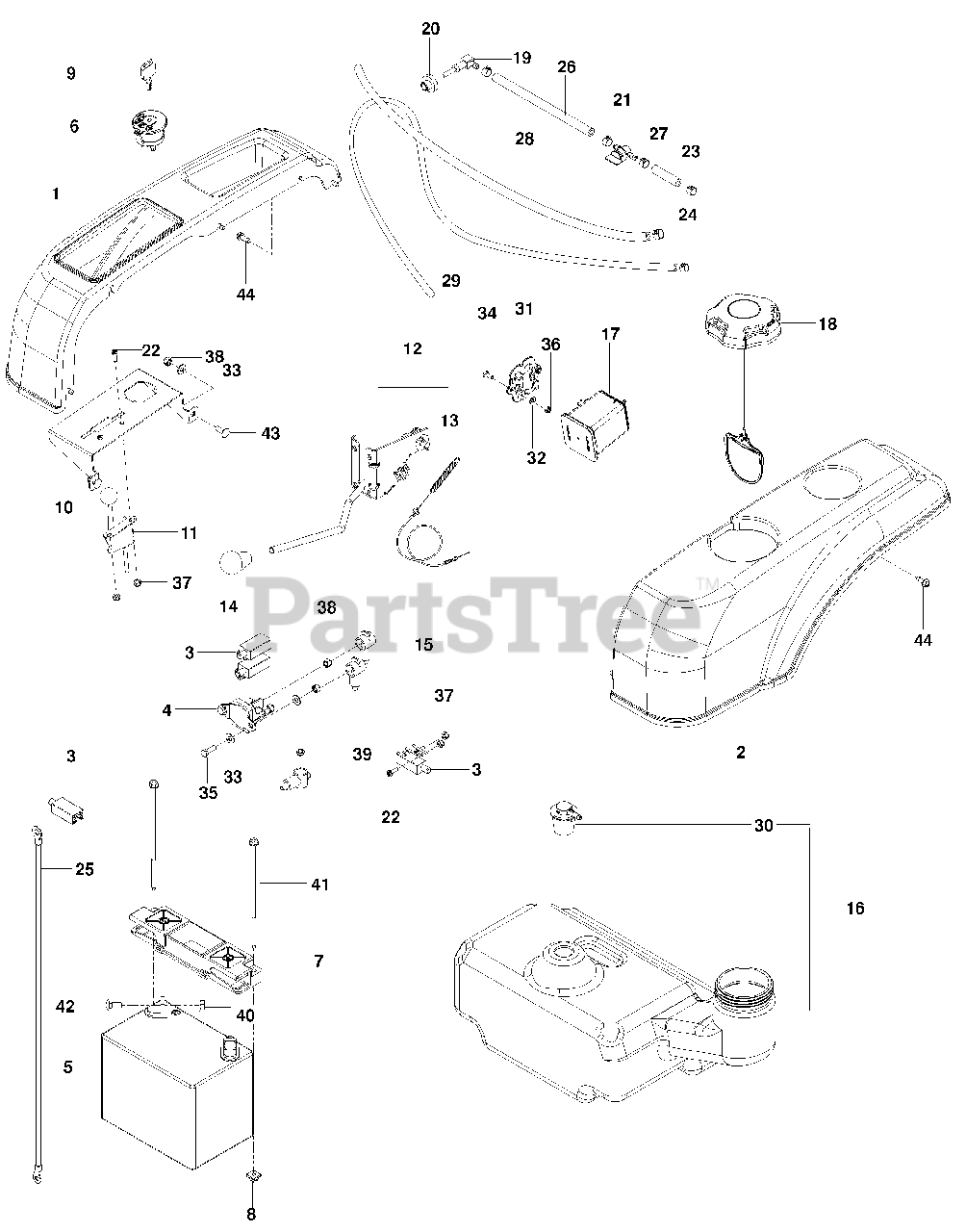

RZ 3016 CA (966503701) - Husqvarna 30" Zero-Turn Mower, CARB (2010-01) Ignition System Parts Diagram

30" Zero-Turn Mower, CARB

Ignition System Parts Diagram

  • Title
1

Husqvarna 525594701

FENDER, RH

$

$

Not available

2

Husqvarna 525594702

FENDER, LH

$

$

Not available

$17.99

$

Usually ships in 3-10 days

0

4

$26.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539102436

BATTERY
(Superseded to 579411601)

$

$

Not available

6

Husqvarna 539107541

SWITCH, IGNITION
(Superseded to 532175566)

$26.99

$

In Stock, Qty 7

0

7

Husqvarna 539107628

BATTERY HOLD DOWN

$10.99

$

In Stock, only 1 left!

0

8

Husqvarna 539107629

NUT 1/4 PUSH NYLON

$4.99

$

In Stock, Qty 7

0

9

Husqvarna 539107544

KEY, IGNITION
(Superseded to 532140401)

$6.99

$

In Stock, Qty 8

0

10

Husqvarna 525598601

MOUNT, CONTROLS BLK

$54.99

$

Usually ships in 3-10 days

0

11

Husqvarna 522730101

CABLE, THROTTLE

$30.99

$

In Stock, only 1 left!

0

12

Husqvarna 575661501

CLUTCH ASSY w/ CABLE

$53.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532193235

CABLE, CLUTCH

$51.99

$

In Stock, only 2 left!

0

14

Husqvarna 539132624

KNOB, CLUTCH

$7.99

$

In Stock, Qty 6

0

15

Husqvarna 539116400

TERMINAL COVER, SM

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 575379401

TANK, FUEL w/ VALVE

$

$

Currently unavailable

17

Husqvarna 532414114

CANISTER, CARBON

$62.99

$

Usually ships in 3-10 days

0

18

Husqvarna 575018101

CAP, FUEL w/ TETHER
(Superseded to 575018103)

$34.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539124804

ELBOW w/ FILTER

$

$

Not available

20

Husqvarna 539126217

FITTING, TANK

$

$

Not available

21

Husqvarna 539916325

VALVE, FUEL

$47.99

$

In Stock, only 1 left!

0

22

Husqvarna 539976952

SCREW #10-24 x 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

23

Husqvarna 539912222

CLAMP, HOSE

$4.99

$

In Stock, only 1 left!

0

24

Husqvarna 575436501

CLAMP, HOSE

$6.49

$

In Stock, only 4 left!

0

25

Husqvarna 539110068

BATTERY CABLE, NEGATIVE

$9.49

$

Usually ships in 3-10 days

0

26

Husqvarna 539115736

HOSE 1/4 x 8

$6.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539121486

HOSE, 1/4 x 2

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539110424

FUEL LINE 24"
(Superseded to 539107765)

$7.99

$

In Stock, only 2 left!

0

29

Husqvarna 575437801

FUEL LINE 46"

$14.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532414112

VALVE, ROLLOVER

$17.99

$

Usually ships in 3-10 days

0

31

Husqvarna 575242701

BRACKET, CANISTER

$10.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990188

WASHER 5/16 SAE FLAT
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 539990055

WASHER 1/4 FLAT SAE

$3.99

$

In Stock, Qty 19

0

34

Husqvarna 539108392

HCS 5/16-18 x 5/8
(Superseded to 596031601)

$3.99

$

In Stock, only 3 left!

0

35

Husqvarna 539990580

HCS 1/4-20 x 3/4

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539115617

NUT 5/16-18 HEX NYL INSERT

$

$

Not available

37

Husqvarna 539976977

NUT #10-24 HEX NYLOC

$

$

Not available

38

Husqvarna 539976978

NUT 1/4-20 HEX NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

39

Husqvarna 539108120

NUT 1/4-20 HEX THIN NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

40

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

41

Husqvarna 539107632

BOLT 1/4 x 7 1/2

$

$

Not available

42

Husqvarna 539990316

RHSNB 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

43

Husqvarna 539990074

RHSNB 1/4-20 x 3/4 GR2
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539990362

SCREW 1/4-20 x 5/8 SLF TAP

$4.99

$

In Stock, Qty 12

0

Husqvarna 539104974

CABLE, POSITIVE

Note: NOT SHOWN

$

$

Not available

Husqvarna 539103306

CABLE, POSITIVE LONG
(Superseded to 586108201)

Note: NOT SHOWN

$10.99

$

In Stock, only 2 left!

0

Husqvarna 525744301

WIRING HARNESS

Note: NOT SHOWN

$109.99

$

Usually ships in 3-10 days

0

Husqvarna 539110290

FOAM STRIP, TANK

Note: NOT SHOWN

$3.49

$

Usually ships in 3-10 days

0
