RZ 3016 CA (966503701) - Husqvarna 30" Zero-Turn Mower, CARB (2010-01) Hydraulic Pump / Motor Parts Diagram

30" Zero-Turn Mower, CARB

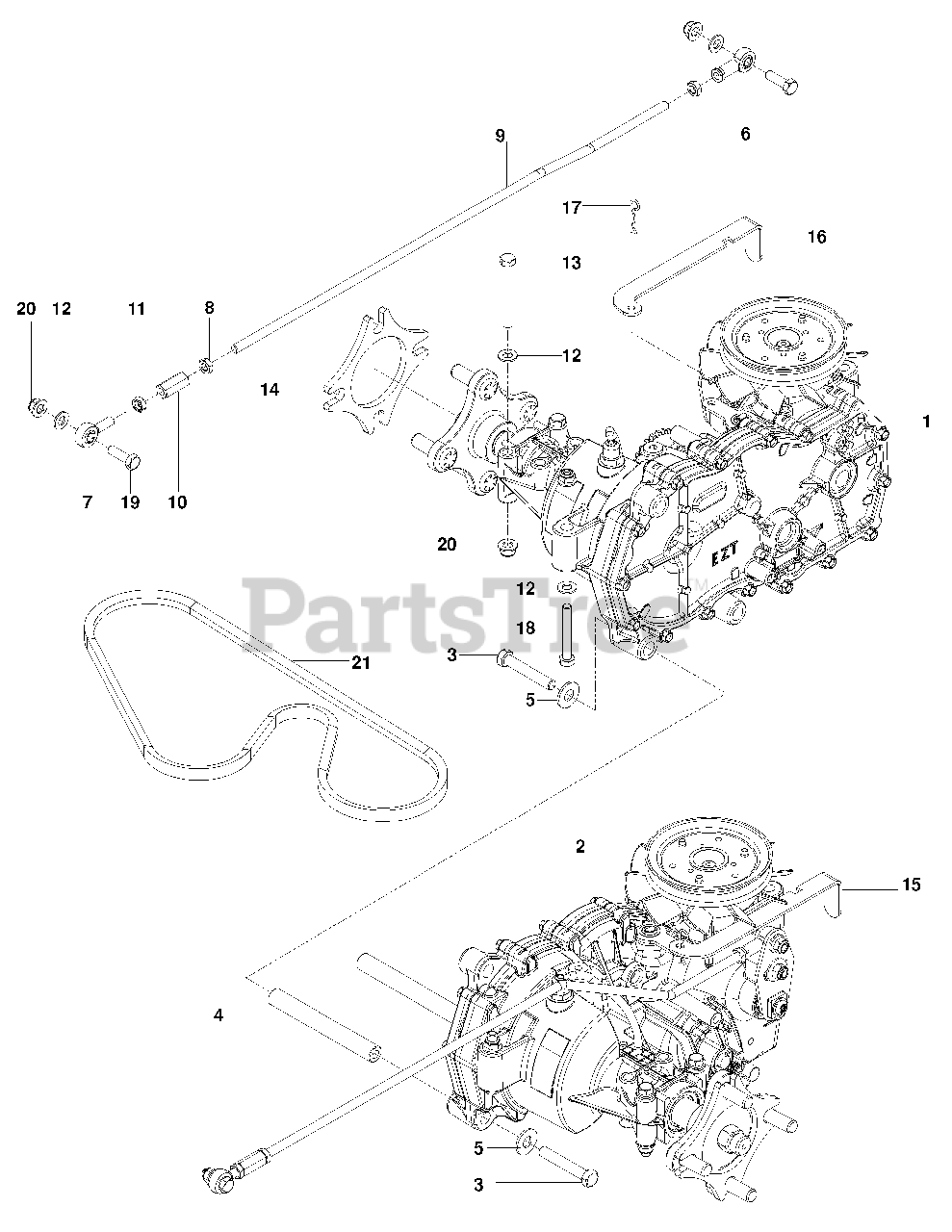

Hydraulic Pump / Motor Parts Diagram

  • Title

1

Husqvarna 539120152

HYDRO, RH
(Superseded to 539120941)

$1942.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539120153

HYDRO, LH

$1455.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539990629

HCS 3/8-16 x 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539120154

SPACER, HYDRO

$40.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539990517

WASHER 3/8 FLAT STD

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539115729

ROD END, RH
(Superseded to 579764601)

$9.49

$

Usually ships in 3-10 days

0

7

Husqvarna 539116690

ROD END, MALE LH
(Superseded to 588692502)

$10.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539115502

NUT 5/16-24 HEX JAM

$3.99

$

In Stock, Qty 5

0

9

Husqvarna 539120169

ROD, CONTROL

$14.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539116689

ROD END COUPLER

$

$

Not available

11

Husqvarna 539991073

NUT 5/16-24 HEX JAM LH

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539990188

WASHER 5/16 SAE FLAT
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

13

Husqvarna 539101721

HCS 5/16-18 x 2 3/4

$4.99

$

In Stock, Qty 7

0

14

Husqvarna 539114804

SPACER, WHEEL

$10.99

$

In Stock, only 1 left!

0

15

Husqvarna 539120156

RELEASE HANDLE, LH

$30.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539120157

RELEASE HANDLE, RH

$14.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539976988

HAIRPIN COTTER

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539976938

HCS 5/16-18 x 2 1/4

$4.99

$

In Stock, only 2 left!

0

19

Husqvarna 539990209

HCS 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

21

Husqvarna 539120806

BELT, EZT

$27.99

$

In Stock, only 1 left!

0
