RZ 3016 CA (966503701) - Husqvarna 30" Zero-Turn Mower, CARB (2010-01) Frame Parts Diagram

30" Zero-Turn Mower, CARB

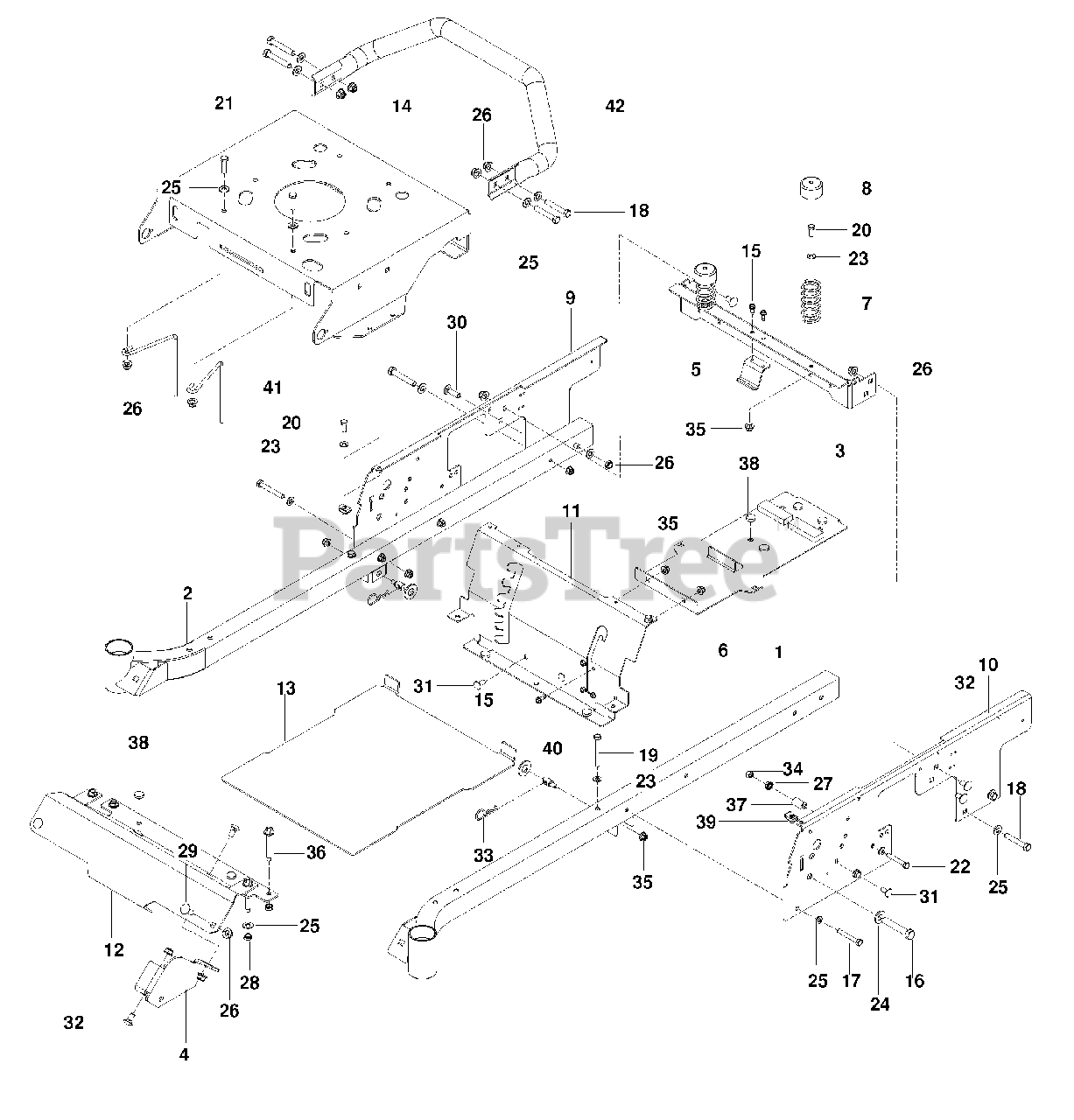

Frame Parts Diagram

  • Title

1

Husqvarna 525454702

FRAME TUBE, LH ORG

$182.99

$

Usually ships in 3-10 days

0

2

Husqvarna 525454902

FRAME TUBE, RH ORG

$182.99

$

Usually ships in 3-10 days

0

3

Husqvarna 525464602

SUPPORT, REAR SEAT ORG

$

$

Not available

4

Husqvarna 525605502

BRACKET, FRONT DECK BLK

$46.99

$

Usually ships in 3-10 days

0

5

Husqvarna 525864502

BRACKET, FUEL TANK BLK

$12.99

$

Usually ships in 3-10 days

0

6

Husqvarna 525798402

SUPPORT, TANK BLK

$60.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539122632

SPRING, SEAT

$9.49

$

In Stock, only 2 left!

0

8

Husqvarna 539119884

CAP, SPRING

$

$

Not available

9

Husqvarna 575328302

PLATE, LH ORG

$

$

Not available

10

Husqvarna 575328402

PLATE, RH ORG

$

$

Not available

11

Husqvarna 575852102

PANEL, SEAT SUPPORT ORG

$

$

Not available

12

Husqvarna 525835902

FOOT REST ORG

$97.99

$

Usually ships in 3-10 days

0

13

Husqvarna 525455102

FOOT PLATE ORG
(Superseded to 576452401)

$

$

Not available

14

Husqvarna 525462603

PLATE, ENGINE ORG
(Superseded to 525462606)

$

$

Not available

15

Husqvarna 539990362

SCREW 1/4-20 x 5/8 SLF TAP

$4.99

$

In Stock, Qty 12

0

16

Husqvarna 539101332

HCS 1/2-13 x 2 3/4

$5.99

$

In Stock, only 3 left!

0

17

Husqvarna 539976938

HCS 5/16-18 x 2 1/4

$4.99

$

In Stock, only 2 left!

0

18

Husqvarna 539990629

HCS 3/8-16 x 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539101721

HCS 5/16-18 x 2 3/4

$4.99

$

In Stock, Qty 7

0

20

Husqvarna 539976934

HCS 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 539976941

HCS 3/8-16 x 1 1/4

$4.99

$

In Stock, only 1 left!

0

22

Husqvarna 539976937

HCS 5/16-18 x 2

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539990188

WASHER 5/16 SAE FLAT
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

24

Husqvarna 539990250

WASHER 1/2 SAE

$1.99

$

In Stock, only 2 left!

0

25

Husqvarna 539990122

WASHER 3/8 SAE FLT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 521996501

NUT 3/8-16 FLANGE NYLOC

$

$

Not available

27

Husqvarna 539990585

NUT 5/16-18 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539200282

NUT 3/8-16 HEX JAM NYLOC
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

29

Husqvarna 539990645

RHSNB 3/8-16 x 1

$

$

Not available

30

Husqvarna 539100413

RHSNB 3/8-16 x 11/4

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990316

RHSNB 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 539111785

RHSNB 3/8-16 x 3/4

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539976989

HAIRPIN

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

36

Husqvarna 539111976

BOLT 3/8-16 x 25/8 THD FRM

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539119087

BUSHING

$9.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

39

Husqvarna 539104763

RETAINER, U TYPE

$6.49

$

In Stock, Qty 12

0

40

Husqvarna 532195161

STUD w/ ANTI-ROTATE

$

$

Not available

41

Husqvarna 574172901

GUIDE, BELT

$

$

Not available

42

Husqvarna 525865902

BAR, IMPACT ORG

$

$

Not available
