RZ 3016 CA (966503701) - Husqvarna 30" Zero-Turn Mower, CARB (2010-01) Engine Plate Parts Diagram

30" Zero-Turn Mower, CARB

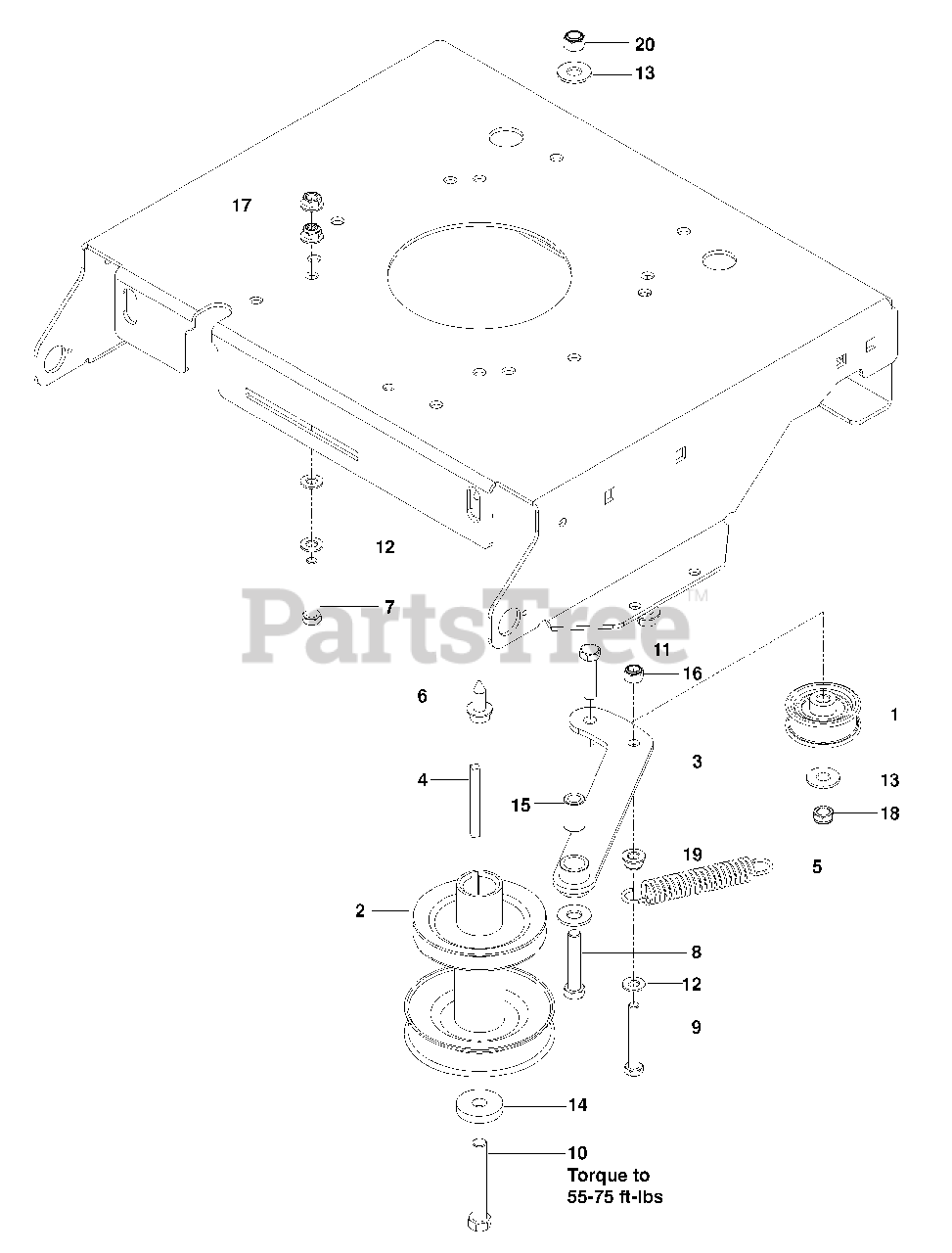

Engine Plate Parts Diagram

  • Title

1

Husqvarna 539120812

PULLEY, IDLER

$26.99

$

Usually ships in 3-10 days

0

2

Husqvarna 574872801

PULLEY, ENGINE
(Superseded to 588586501)

$56.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539120990

IDLER, BLK

$

$

Not available

4

Husqvarna 539917033

KEY 1/4 SQ x 2 1/2 LG

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539116350

SPRING 3 1/2

$9.49

$

In Stock, only 1 left!

0

6

Husqvarna 532120616

SCREW 3/8-16 x 1 THD FRM
(Superseded to 817120616)

$5.99

$

In Stock, Qty 17

0

7

Husqvarna 539976937

HCS 5/16-18 x 2

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539990588

HCS 3/8-16 x 2

$4.99

$

In Stock, Qty 10

0

9

Husqvarna 539976938

HCS 5/16-18 x 2 1/4

$4.99

$

In Stock, only 2 left!

0

10

Husqvarna 539110065

HCS 7/16-20 x 2 3/4

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539990655

HCS 3/8-16 x 1 1/2

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 539990188

WASHER 5/16 SAE FLAT
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 539990517

WASHER 3/8 FLAT STD

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539115546

WASHER

$4.99

$

In Stock, only 3 left!

0

15

Husqvarna 539115270

BUSHING, METAL

$7.49

$

In Stock, only 1 left!

0

16

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539990585

NUT 5/16-18 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539200282

NUT 3/8-16 HEX JAM NYLOC
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

19

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

20

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0
