RZ 3016 (966612301) - Husqvarna 30" Zero-Turn Mower (2011-02) FRAME Parts Diagram

30" Zero-Turn Mower

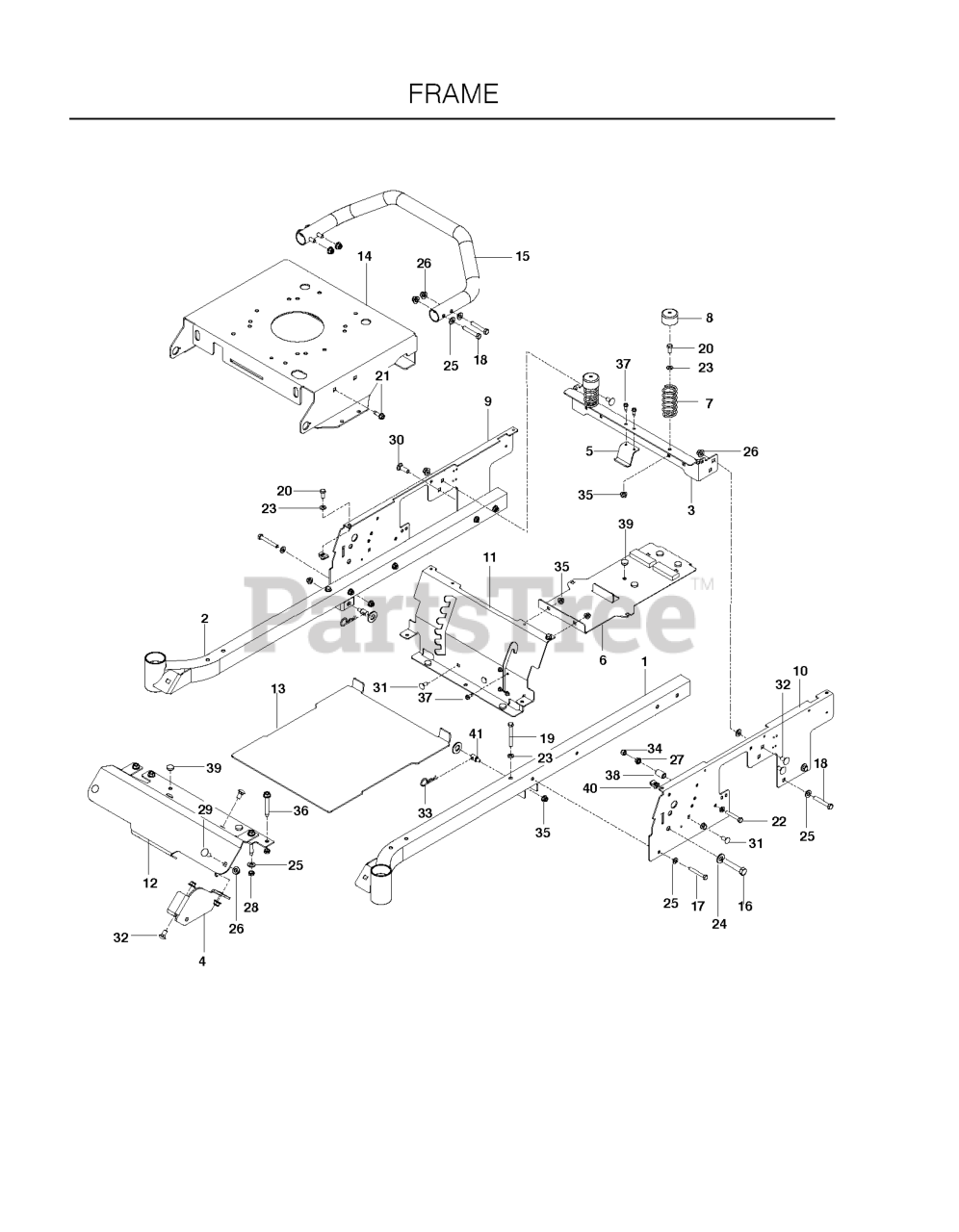

FRAME Parts Diagram

  • Title

1

Husqvarna 525454702

FRAME TUBE, LH, ORG

$182.99

$

Usually ships in 3-10 days

0

2

Husqvarna 525454902

FRAME TUBE, RH, ORG

$182.99

$

Usually ships in 3-10 days

0

3

Husqvarna 525464602

SUPPORT, REAR SEAT, ORG

$

$

Not available

4

Husqvarna 525605502

BRACKET, FRONT DECK, BLK

$46.99

$

Usually ships in 3-10 days

0

5

Husqvarna 525864502

HOLDING DEVICE, FUEL TANK, BLK

$12.99

$

Usually ships in 3-10 days

0

6

Husqvarna 525798402

SUPPORT, TANK/BATT, BLK

$60.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539122632

SEAT SPRING

$9.49

$

In Stock, only 2 left!

0

8

Husqvarna 539119884

SPRING CAP

$

$

Not available

9

Husqvarna 575328302

PLATE.LH.SIDE.ORANGE

$

$

Not available

10

Husqvarna 575328402

PLATE.RH.SIDE.ORANGE

$

$

Not available

11

Husqvarna 575852102

PANEL, SEAT SUPP. ORG

$

$

Not available

12

Husqvarna 525835902

FOOT.REST.30/38.ORANGE

$97.99

$

Usually ships in 3-10 days

0

13

Husqvarna 576452401

PLATE, FOOT W/DECALS, HUSQ

$

$

Not available

14

Husqvarna 525462603

PLATE, ENGINE, ORG
(Superseded to 525462606)

$

$

Not available

15

Husqvarna 525865902

IMPACT BAR, ORG

$

$

Not available

16

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

17

Husqvarna 539976938

CAPSCREW

$4.99

$

In Stock, only 2 left!

0

18

Husqvarna 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 7

0

20

Husqvarna 539107476

BOLT 3/8-16 X 1.0

$6.49

$

In Stock, only 1 left!

0

21

Husqvarna 539990369

SCREW

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539976937

HCS 5/16-18X2

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 17

0

24

Husqvarna 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

25

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

27

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

29

Husqvarna 539990645

RHSNB 3/8C X 1

$

$

Not available

30

Husqvarna 539100413

RHSNB 3/8-16 X 1-1/4

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 539111785

RHSNB 3/8-16 X 3/4 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

36

Husqvarna 539111976

ENGINE BOLT, SPECIAL

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

38

Husqvarna 539119087

BUSHING

$9.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

40

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

41

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available
