RZ 3016 (966042901) - Husqvarna 30" Zero-Turn Mower (2009-04) Wheels / Tires Parts Diagram

30" Zero-Turn Mower

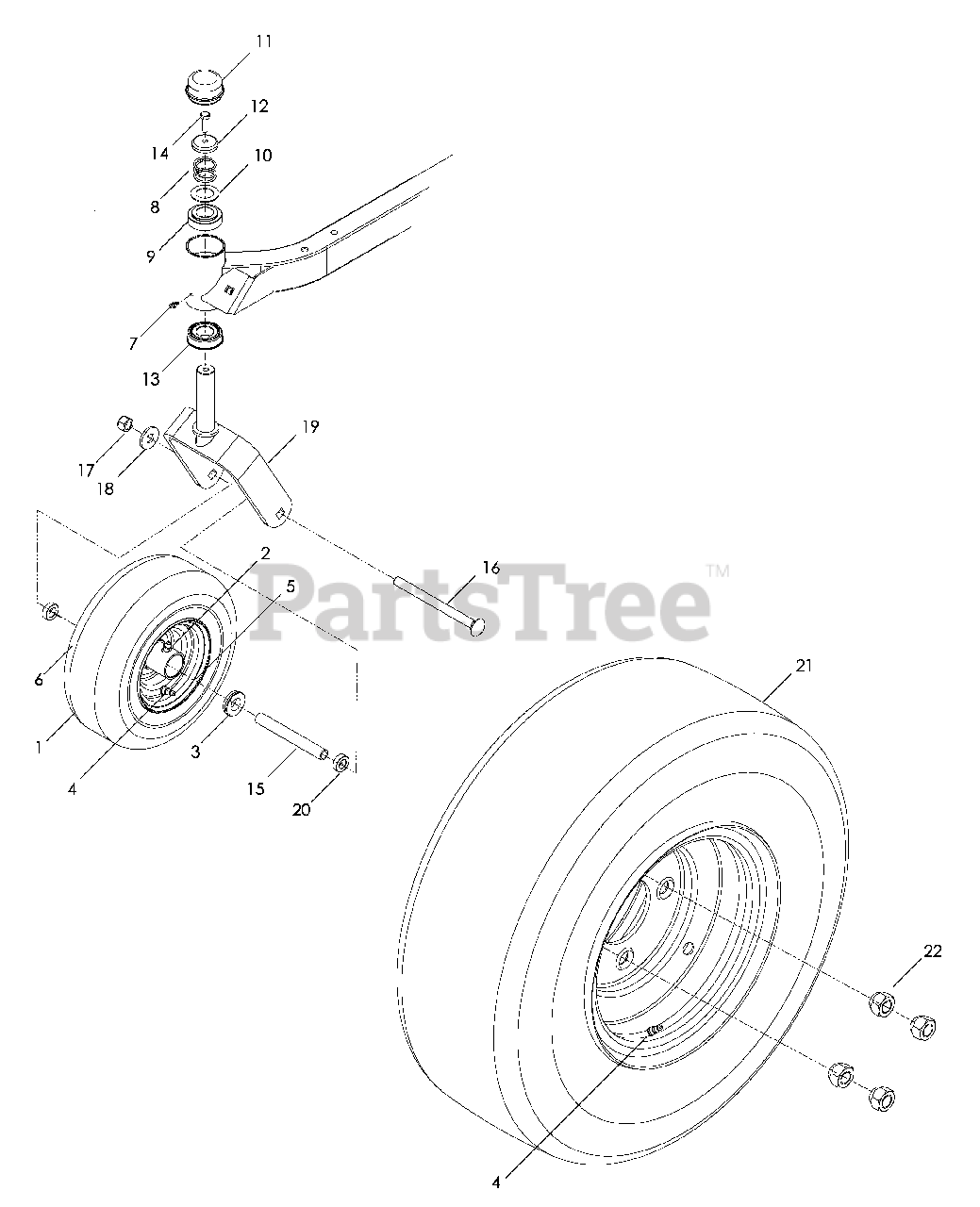

Wheels / Tires Parts Diagram

  • Title

1

Husqvarna 539110333

CASTER TIRE ASSM Items 2-6
(Superseded to 590486802)

Note:

$87.99

$

In Stock, only 1 left!

0

2

Husqvarna 539103300

ZERK

Note:

$4.99

$

In Stock, Qty 18

0

3

Husqvarna 539102484

BEARING, FLANGED

Note:

$5.99

$

In Stock, only 1 left!

0

4

Husqvarna 539912234

VALVE

Note:

$6.49

$

In Stock, Qty 20+

0

5

Husqvarna 539106994

RIM

Note:

$

$

Not available

6

Husqvarna 539106995

TIRE
(Superseded to 539114697)

Note:

$

$

Not available

7

Husqvarna 539115638

ZERK
(Superseded to 596623501)

Note:

$3.99

$

In Stock, only 4 left!

0

8

Husqvarna 539115747

SPRING, CASTER

Note:

$

$

Not available

9

Husqvarna 539117901

BUSHING, CASTER

Note:

$10.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539115675

WASHER

Note:

$

$

Not available

11

Husqvarna 539102535

CAP, GREASE
(Superseded to 595281301)

Note:

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539115749

PLUG, CASTER

Note:

$

$

Not available

13

Husqvarna 539112660

BEARING, FLANGED

Note:

$34.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539115566

HHB 5/16-18 x 1 NYLOC
(Superseded to 874950516)

Note:

$

$

Not available

15

Husqvarna 539105543

SPACER

Note:

$10.99

$

In Stock, only 2 left!

0

16

Husqvarna 539121159

RHSNB ½-13 x 6½

Note:

$24.99

$

In Stock, only 2 left!

0

17

Husqvarna 539101331

NUT ½ HEX NYLOC
(Superseded to 596135601)

Note:

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 539109554

WASHER ½ FLAT

Note:

$

$

Not available

19

Husqvarna 510186501

YOKE, CASTER
(Superseded to 510186505)

Note:

$109.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539114805

SPACER 5/16

Note:

$12.99

$

In Stock, Qty 8

0

21

Husqvarna 539120187

WHEEL ASSM REAR
(Superseded to 581199001)

Note:

$

$

Not available

22

Husqvarna 539101173

NUT ½ LUG

Note:

$

$

Not available
