RZ 3016 (966042901) - Husqvarna 30" Zero-Turn Mower (2009-04) Chassis / Frame Parts Diagram

30" Zero-Turn Mower

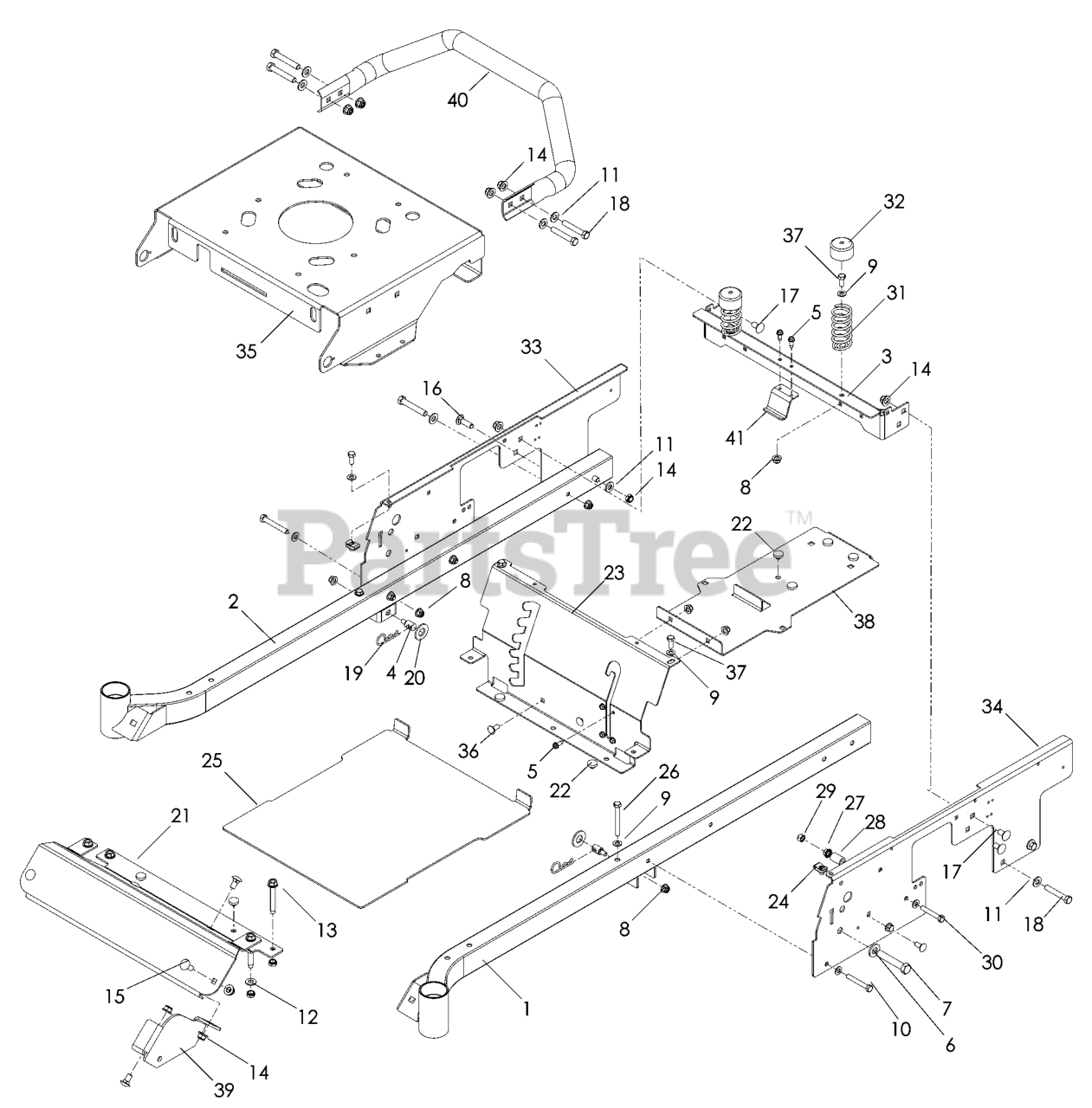

Chassis / Frame Parts Diagram

  • Title

1

Husqvarna 525454702

FRAME TUBE, LH

Note:

$182.99

$

Usually ships in 3-10 days

0

2

Husqvarna 525454902

FRAME TUBE, RH

Note:

$182.99

$

Usually ships in 3-10 days

0

3

Husqvarna 525464602

SUPPORT, REAR SEAT

Note:

$

$

Not available

4

Husqvarna 532195161

STUD w/ ANTI-ROTATE

Note:

$

$

Not available

5

Husqvarna 539990362

SCREW ¼-20 x 5/8 SLF TAP

Note:

$4.99

$

In Stock, Qty 12

0

6

Husqvarna 539990250

WASHER ½ SAE

Note:

$1.99

$

In Stock, only 2 left!

0

7

Husqvarna 539101332

HCS ½-13 x 2¾

Note:

$5.99

$

In Stock, only 3 left!

0

8

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

Note:

$6.99

$

In Stock, Qty 20+

0

9

Husqvarna 539990188

WASHER 5/16 SAE FLAT
(Superseded to 819111116)

Note:

$3.99

$

In Stock, Qty 11

0

10

Husqvarna 539976938

HCS 5/16-18 x 2¼

Note:

$4.99

$

In Stock, only 2 left!

0

11

Husqvarna 539990122

WASHER 3/8 SAE FLT
(Superseded to 596565301)

Note:

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 539200282

NUT 3/8-16 HEX JAM NYLOC
(Superseded to 596230801)

Note:

$3.99

$

In Stock, Qty 15

0

13

Husqvarna 539111976

BOLT 3/8-16 x 25/8 THD FRM

Note:

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 521996501

NUT 3/8-16 FLANGE NYLOC

Note:

$

$

Not available

15

Husqvarna 539990645

RHSNB 3/8-16 x 1

Note:

$

$

Not available

16

Husqvarna 539100413

RHSNB 3/8-16 x 1¼

Note:

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539111785

RHSNB 3/8-16 x ¾

Note:

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990629

HCS 3/8-16 x 2¼
(Superseded to 874520636)

Note:

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539976989

HAIRPIN

Note:

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539976982

WASHER 5/8 SAE FLT

Note:

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 525835902

FOOT REST

Note:

$97.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539102587

GROMMET,BUMPER

Note:

$5.99

$

In Stock, Qty 15

0

23

Husqvarna 525503402

PANEL, SEAT SUPPORT

Note:

$

$

Not available

24

Husqvarna 539104763

U TYPE RETAINER

Note:

$6.49

$

In Stock, Qty 12

0

25

Husqvarna 525455102

FOOT PLATE
(Superseded to 576452401)

Note:

$

$

Not available

26

Husqvarna 539101721

HCS 5/16-18 x 2¾

Note:

$4.99

$

In Stock, Qty 7

0

27

Husqvarna 539990585

NUT 5/16-18 HEX WHIZLK

Note:

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539119087

BUSHING

Note:

$9.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

Note:

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 539976937

HCS 5/16-18 x 2

Note:

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539122632

SPRING, SEAT

Note:

$9.49

$

In Stock, only 2 left!

0

32

Husqvarna 539119884

CAP, SPRING

Note:

$

$

Not available

33

Husqvarna 525813802

PLATE, RH

Note:

$

$

Not available

34

Husqvarna 525813902

PLATE, LH

Note:

$

$

Not available

35

Husqvarna 525462603

PLATE, ENGINE
(Superseded to 525462606)

Note:

$

$

Not available

36

Husqvarna 539990316

RHSNB 5/16-18 x ¾
(Superseded to 595901601)

Note:

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 539976934

HCS 5/16-18 x ¾
(Superseded to 596030501)

Note:

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 525798402

SUPPORT, TANK

Note:

$60.99

$

Usually ships in 3-10 days

0

39

Husqvarna 525605502

BRACKET, FRONT DECK

Note:

$46.99

$

Usually ships in 3-10 days

0

40

Husqvarna 525865902

GUARD, REAR

Note:

$

$

Not available

41

Husqvarna 525864502

BRACKET, FUEL TANK

Note:

$12.99

$

Usually ships in 3-10 days

0
