RZ 3016 (966042901) - Husqvarna 30" Zero-Turn Mower (2009-04) Brake / Deck Lift Parts Diagram

30" Zero-Turn Mower

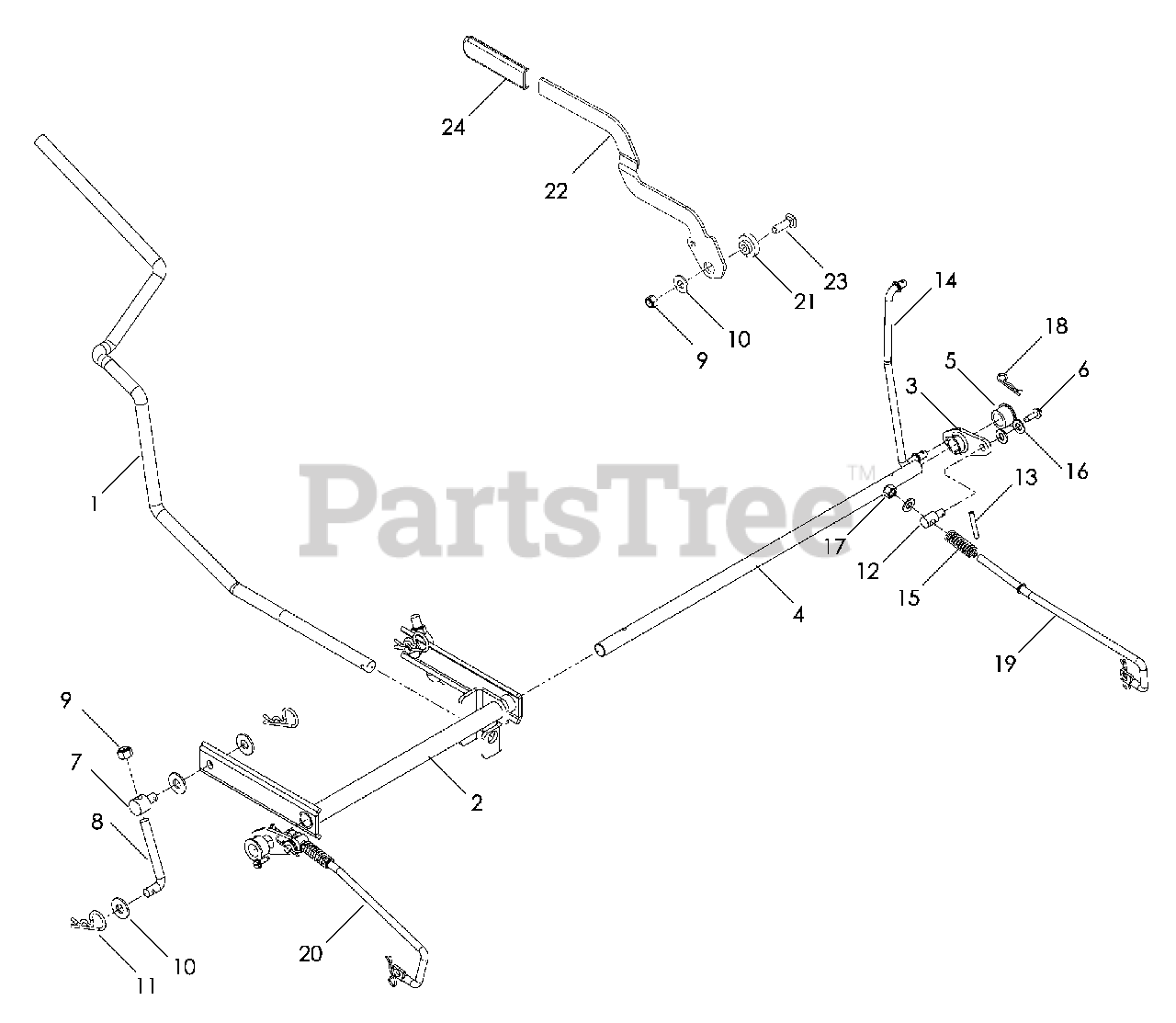

Brake / Deck Lift Parts Diagram

  • Title
1

Husqvarna 525580402

HANDLE, LIFT

Note:

$48.99

$

In Stock, only 1 left!

0

2

Husqvarna 525580602

SHAFT, LIFT
(Superseded to 525580604)

Note:

$103.99

$

Usually ships in 3-10 days

0

3

Husqvarna 525580201

BELLCRANK, BRAKE

Note:

$54.99

$

Usually ships in 3-10 days

0

4

Husqvarna 525580301

ROD, BRAKE

Note:

$

$

Not available

5

Husqvarna 539109368

BUSHING, PLASTIC

Note:

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539991034

SCREW 10-24 x 5/8" WSH HD

Note:

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539118179

SWIVEL

Note:

$13.99

$

In Stock, only 2 left!

0

8

Husqvarna 539115247

L-ROD 31/8"

Note:

$

$

Not available

9

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

Note:

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 539990517

WASHER 3/8 FLAT STD

Note:

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539976989

HAIRPIN

Note:

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539112308

SWIVEL, BRAKE

Note:

$10.99

$

In Stock, only 1 left!

0

13

Husqvarna 539101082

ROLL PIN 3/16"

Note:

$3.99

$

In Stock, only 1 left!

0

14

Husqvarna 525735701

LINKAGE, UPPER

Note:

$9.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539101224

SPRING

Note:

$22.99

$

In Stock, only 1 left!

0

16

Husqvarna 539990188

WASHER 5/16 SAE FLAT
(Superseded to 819111116)

Note:

$3.99

$

In Stock, Qty 17

0

17

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

Note:

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 539976988

HAIRPIN COTTER

Note:

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 525583601

LINKAGE, BRAKE RT

Note:

$26.99

$

In Stock, only 4 left!

0

20

Husqvarna 525583701

LINKAGE, BRAKE LT

Note:

$9.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539120220

PIVOT, BRAKE ARM

Note:

$

$

Not available

22

Husqvarna 525485602

HANDLE, BRAKE

Note:

$27.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539100413

RHSNB 3/8-16 x 1¼

Note:

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539196492

GRIP, BRAKE HANDLE

Note:

$

$

Currently unavailable

Husqvarna 532196492

GRIP, LIFT HANDLE
(Superseded to 532411555)

Note: NOT SHOWN

$9.49

$

Usually ships in 3-10 days

0
