RZ 19 CE (966658901-02) - Husqvarna Zero-Turn Mower (2011-13) WHEELS & TIRES Parts Diagram

Zero-Turn Mower

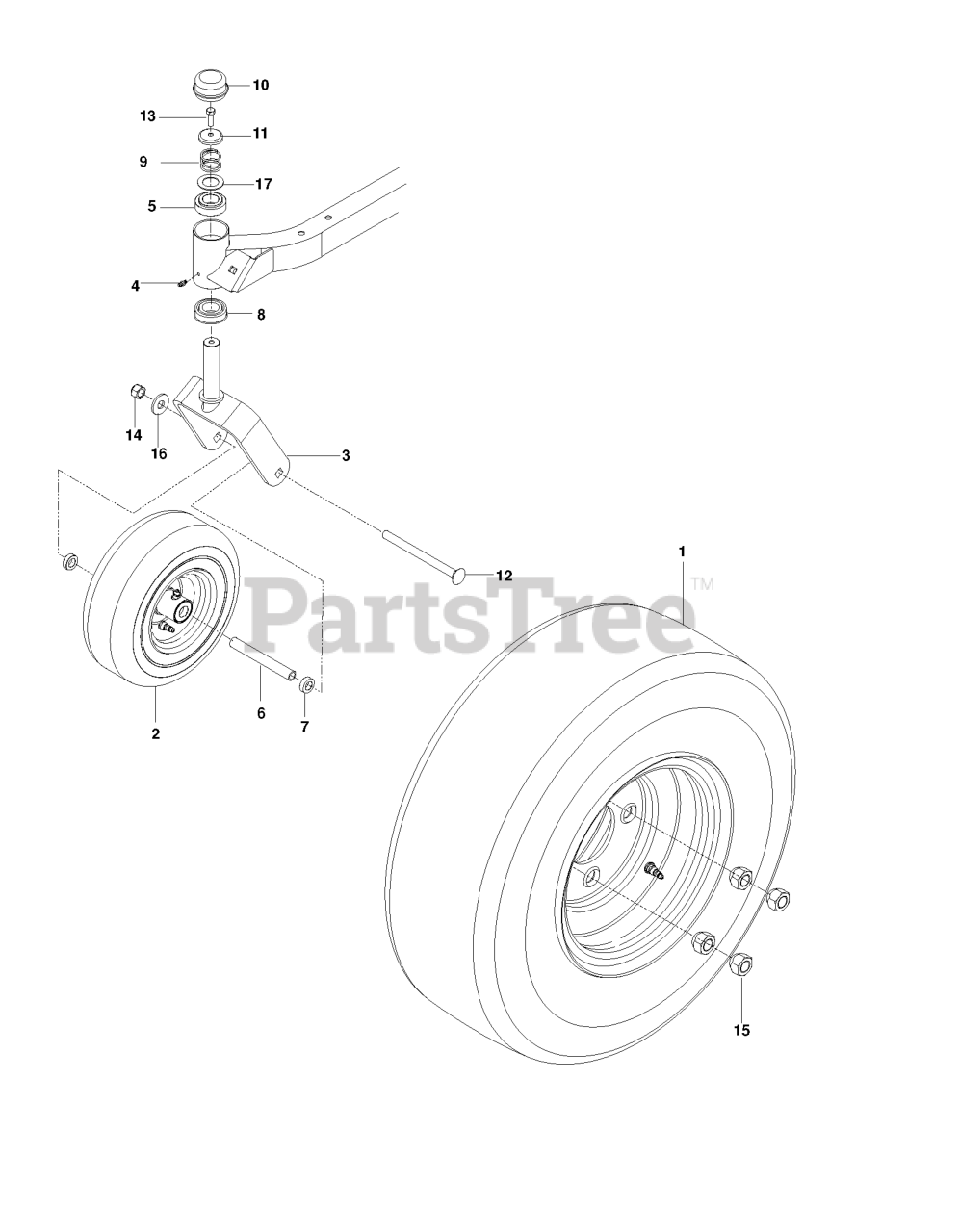

WHEELS & TIRES Parts Diagram

  • Title

11

Husqvarna 539115749

CASTER.PLUG

$

$

Not available

10

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539112660

BEARING FLANGED

$34.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

14

Husqvarna 539200100

NUT 1/2-13 HEX CNTRLK GR 5 ZD

$6.49

$

In Stock, only 4 left!

0

5

Husqvarna 539117901

BUSHING, CASTER

$10.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539121159

RHSNB 1/2-13 X 6.50 GR2 ZD

$24.99

$

In Stock, only 1 left!

0

2

Husqvarna 590486802

WHEEL.CARLSTAR.11X4-5".MS417

$87.99

$

In Stock, only 1 left!

0

9

Husqvarna 539115747

SPRING, CASTER

$

$

Not available

6

Husqvarna 539105543

SPACER

$10.99

$

In Stock, only 1 left!

0

1

Husqvarna 581199001

WHEEL.18X6.50-8.4P.K500.8X3.75

$

$

Not available

16

Husqvarna 819182212

WASHER.9/16 X 1 3/8 X 12 GA.

$

$

Not available

3

Husqvarna 510186505

YOKE.CASTER.ORANGE
(Superseded to 510186501)

$109.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539115566

5/16-18X1 HHB G5W/NY
(Superseded to 874950516)

$

$

Not available

4

Husqvarna 539115638

ZERK, 3/16, DRIVE IN
(Superseded to 596623501)

$3.99

$

In Stock, only 3 left!

0

7

Husqvarna 539114805

SPACER, 5/16"

$12.99

$

In Stock, Qty 8

0

17

Husqvarna 539115675

WASHER, 1.025 ID X 1.64

$

$

Not available
