RYC i911 LP (090930329) - Ryobi Digital Inverter Generator, Rev 01 (2018-07) Figure M Parts Diagram

Digital Inverter Generator, Rev 01

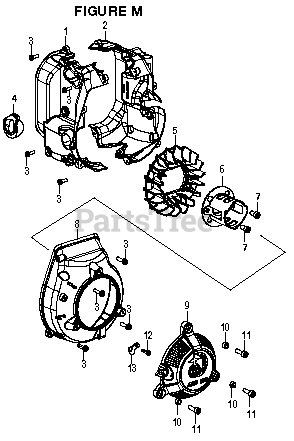

Figure M Parts Diagram

  • Title

1

Homelite 14811100001002

Air Guide Sleeve (A)

$

$

Not available

2

Homelite 14761100014002

Air Guide Sleeve (B)

$

$

Not available

3

Homelite 00427014801681

Screw (M4.8 x 16 mm)

$

$

Not available

4

Homelite 14761100006003

Pad

$

$

Not available

5

Homelite 14761100001003

Cooling Fan

$

$

Not available

6

Homelite 14760602000001

Starting Hub

$

$

Not available

7

Homelite 00204000601081

Screw (M6 x 10 mm, Hex Hd.)

$

$

Not available

8

Homelite 14761100002081

Fan Volute

$

$

Not available

9

Homelite 14760601000002

Recoil Starter

$15.99

$

Usually ships in 3-7 days

0

10

Homelite 15600600002003

Recoil Starter Bushing

$

$

Not available

11

Homelite 00031000501681

Bolt (M5 x 16 mm, Flange Hex Hd.)

$

$

Not available

12

Homelite 00421114201081

Screw (M4.2 x 10 mm)

$

$

Not available

13

Homelite 14761000006081

Ignition Coil Wires Clamp

$

$

Not available
