RYC i911 LP (090930329) - Ryobi Digital Inverter Generator, Rev 01 (2018-07) Figure L Parts Diagram

Digital Inverter Generator, Rev 01

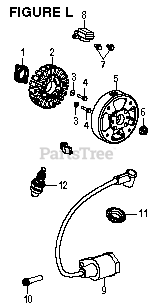

Figure L Parts Diagram

  • Title

1

Homelite 14761000001001

Locating Plate

$6.99

$

Usually ships in 3-7 days

0

2

Homelite 14871001100201

Stator Assembly

Note: (Inc. Key No. 2a)

$143.99

$

Usually ships in 3-7 days

0

3

Homelite 00030000500081

Washer (M5)

$

$

Not available

4

Homelite 00033000502281

Bolt (M5 x 22 mm, Flange Hex Hd.)

$

$

Not available

5

Homelite 14761001200101

Rotor

$101.99

$

Usually ships in 3-7 days

0

6

Homelite 00129001000081

Hex Flange Nut (M10)

$

$

Not available

7

Homelite 00033000501081

Bolt (M5 x 10 mm, Hex Flange Hd.)

$

$

Not available

8

Homelite 14761000004003

Trigger

$8.49

$

Usually ships in 3-7 days

0

9

Homelite 14761003000181

Ignition Coil

$

$

Not available

10

Homelite 00241004802581

Screw (M4.8 x 25 mm)

$

$

Not available

11

Homelite 14761000003081

Ignition Coil Cap Seal

$2.99

$

Usually ships in 3-7 days

0

12

Homelite 14761002000001

Spark Plug (CMR6A)

$20.99

$

Usually ships in 3-7 days

0

2a

Homelite 14761000002002

Bushing

Note: Not Shown

$

$

Not available
