RYC i911 LP (090930329) - Ryobi Digital Inverter Generator, Rev 01 (2018-07) Figure A Parts Diagram

Digital Inverter Generator, Rev 01

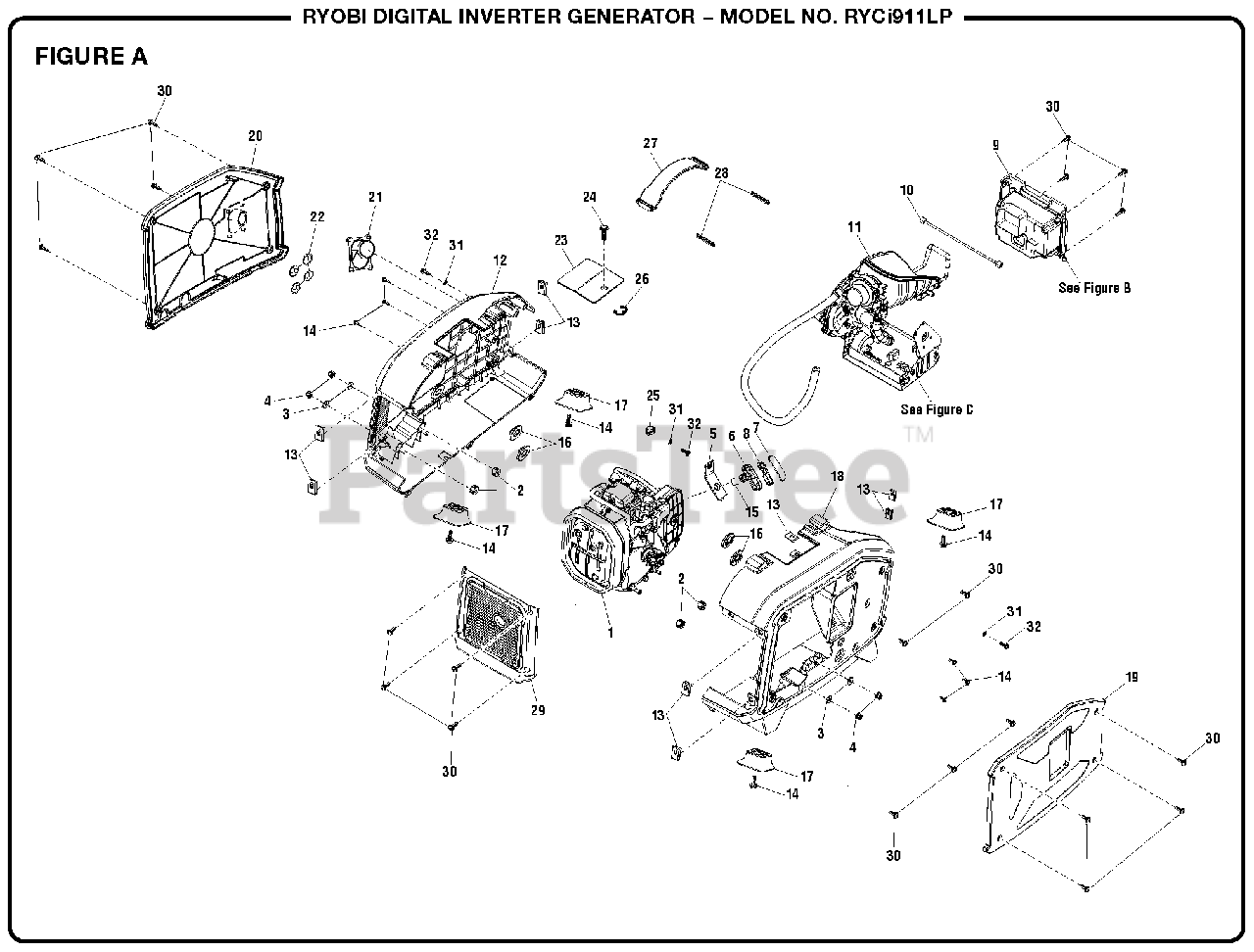

Figure A Parts Diagram

  • Title

1

Engine

Note: OWT Industries, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

2

Homelite 561454003

Side Engine Isolator

$2.99

$

Usually ships in 3-7 days

0

3

Homelite 460703000130

Rubber Washer (ID6.25 x OD15.5 x 2t)

$

$

Not available

4

Homelite 001410006001

Lock Flange Nut (M6)

$

$

Not available

5

Homelite 524003042

Starter Cover

$2.99

$

Usually ships in 3-7 days

0

6

Homelite 524003026

Recoil Handle

$

$

Not available

7

Homelite 524003027

Recoil Handle Cover

$

$

Not available

8

Homelite 524003066

Recoil Handle Support

$

$

Not available

9

Control Panel Assembly

$

$

Not available

10

Homelite 469020030000

Stepper Motor Extended Wire Harness

$

$

Not available

11

Fuel System & Bracket Assembly

$

$

Not available

12

Homelite 524003031

Panel Housing (Right)

$72.99

$

Usually ships in 3-7 days

0

13

Homelite 469003000150

U-Clip

$

$

Not available

14

Homelite 662770002

Screw (M5 x 12 mm, T-25 Torx Washer Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 564158009

Rubber Grommet Handle

$

$

Not available

16

Homelite 561454005

Rubber Grommet

$

$

Not available

17

Homelite 561454010

Rubber Foot w/Metal Insert and Ribs

$

$

Not available

18

Homelite 524003032

Panel Housing (Left)

$68.99

$

Usually ships in 3-7 days

0

19

Homelite 524003035

Maintenance Panel (Left)

$30.99

$

Usually ships in 3-7 days

0

20

Homelite 524003034

Maintenance Panel (Right)

$27.99

$

Usually ships in 3-7 days

0

21

Homelite 564158008

Rubber Grommet

$

$

Not available

22

Homelite 638704008

Internal Tooth Washer (ID5)

$

$

Not available

23

Homelite 524003033

Spark Plug Door

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 662770003

Screw (M5 x 16 mm, T-25 Torx Washer Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 678409011

Fuel Hose Clamp

$

$

Not available

26

Homelite 638623009

E-Clip Lock Washer

$

$

Not available

27

Homelite 564158002

Rubber Handle (Upper)

$

$

Not available

28

Homelite 678815018

Side Lock (U-Shaped)

$

$

Not available

29

Homelite 524003040

Muffler Cover

$14.99

$

Usually ships in 3-7 days

0

30

Homelite 662770001

Screw (M5 x 18 mm, T-25 Torx Washer Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 638128034

Washer (ID5.2 x OD10 x 1t)

$2.99

$

Usually ships in 3-7 days

0

32

Homelite 660345017

Screw (M5 x 16 mm, T-25 Torx Pan Hd.)

$

$

Not available

Homelite 308792011

Propane Hose Adapter

Note: Not Shown

$

$

Not available

Homelite 480210016145

Spark Plug Wrench

$

$

Not available

Homelite 480212002100

Screw Driver

$1.99

$

Usually ships in 3-7 days

0

Homelite 995000440

Operator's Manual

$

$

Currently unavailable
