RYC i2001 (100930192) - Ryobi Digital Inverter Generator Figure C Parts Diagram

Digital Inverter Generator

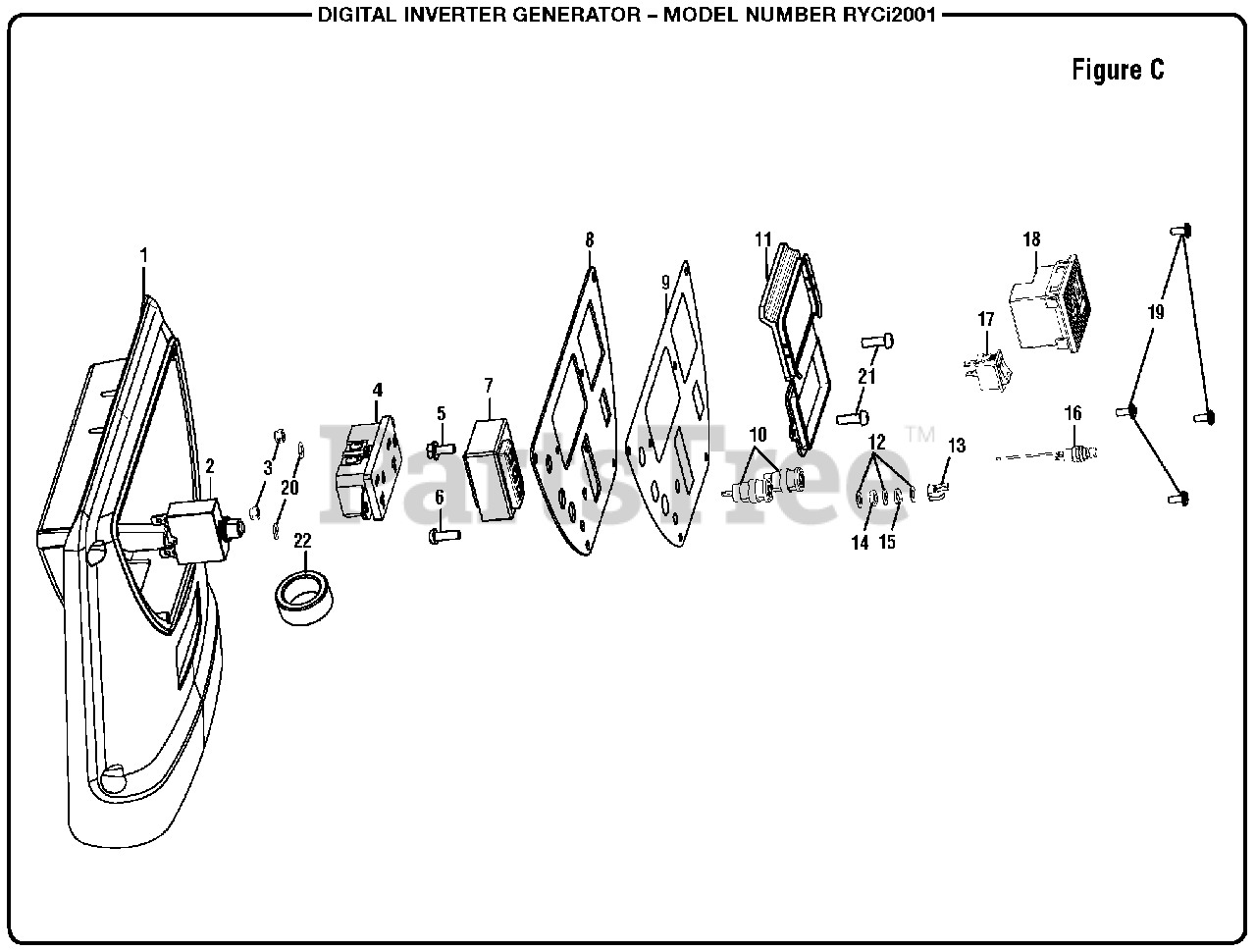

Figure C Parts Diagram

  • Title

1

Homelite 518728003

Front Cover

$52.99

$

Usually ships in 3-7 days

0

2

Homelite 780350001

Circuit Breaker (20 Amp)

$

$

Not available

3

Homelite 661514002

Flange Nut (M4)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 290400017

120 Volt Duplex Receptacle

$

$

Not available

5

Homelite 661345009

Bolt (#10 x 32 mm, Flanged Hd)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 660976002

Screw (M5 x 16 mm, Phillips Pan Hd)

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 850201002

Ignition Module

$

$

Not available

8

Homelite 638700022

Control Panel

$8.49

$

Usually ships in 3-7 days

0

9

Homelite 940780062

Front Panel Label

$8.99

$

Usually ships in 3-7 days

0

10

Homelite 870932002

Connector

$4.99

$

Usually ships in 3-7 days

0

11

Homelite 570412003

120 Volt Outlet Cover

$4.99

$

Usually ships in 3-7 days

0

12

Homelite 638623005

Washer (M5 x 10 mm x 05t)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 678016009

Wing Nut (M5)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 678016008

Hex Nut (M5)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 678343001

Lock Washer (OD9 x ID5 x 13t)
(Superseded to 099069001005)

$2.99

$

Usually ships in 3-7 days

0

16

Homelite 760945001

Reset Button

$

$

Not available

17

Homelite 760504009

Intelligent Switch

$2.99

$

In Stock, Qty 5

0

18

Homelite 290400019

Receptacle DC

$

$

Not available

19

Homelite 660345009

Screw w/Washer (M4 x 10 mm, T20 Torx Button Hd)

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 638623006

Washer (OD8 x ID43 x 05t)

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 660465002

Screw (M4 x 10 mm, Phillips Pan Hd)

$9.49

$

Usually ships in 3-7 days

0

22

Homelite 291477001

Magnetic Ring

$6.49

$

Usually ships in 3-7 days

0
