RY SST44 (090110014) - Ryobi Expand-It Straight Shaft Trimmer Attachment, Rev 01 (2017-04) General Assembly Parts Diagram

Expand-It Straight Shaft Trimmer Attachment, Rev 01

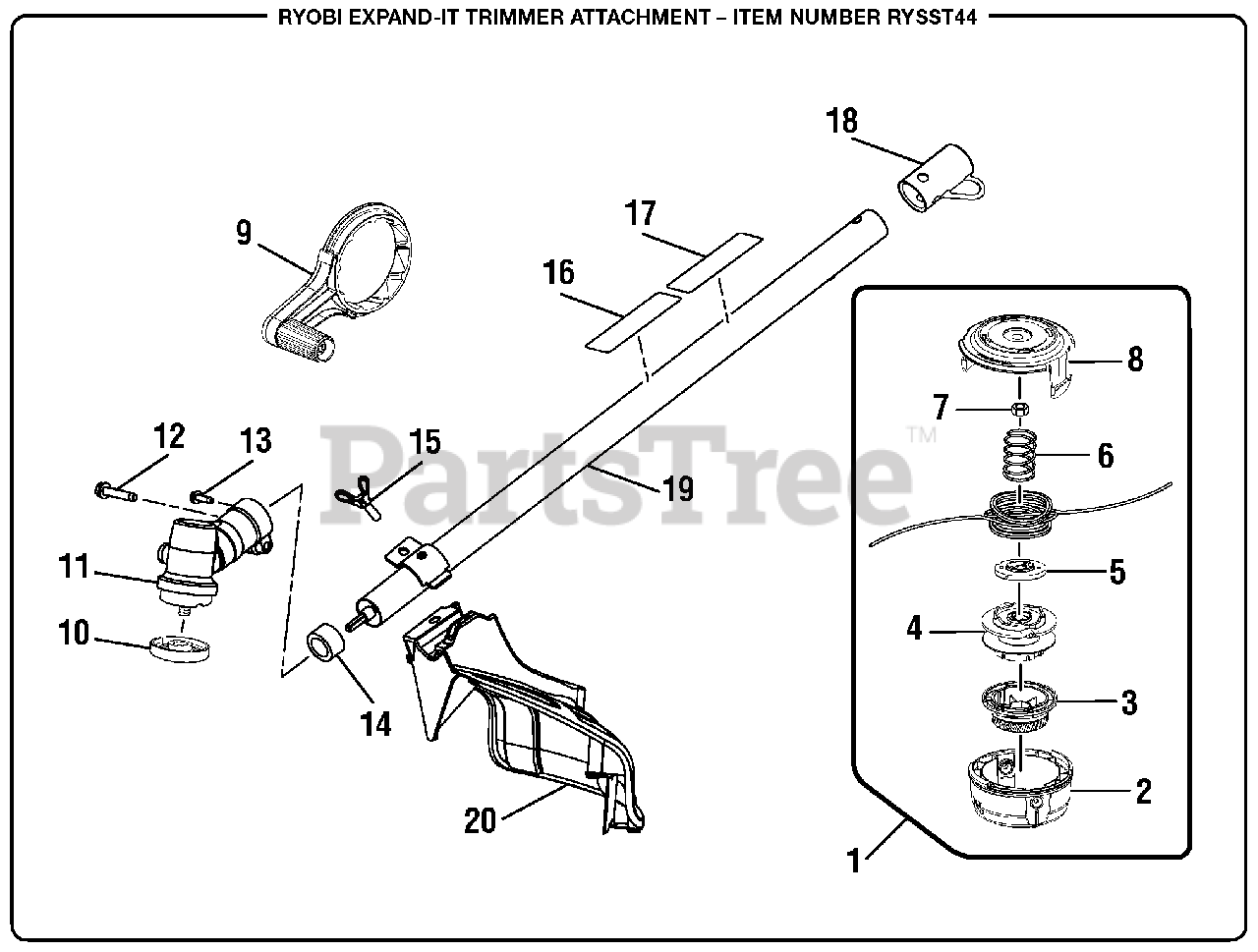

General Assembly Parts Diagram

  • Title

1

Homelite 311759004

Trimmer Head Assembly (.095)
(Superseded to 313248004)

Note: (Inc. Key Nos. 2-8)

$28.99

$

In Stock, only 1 left!

0

2

Homelite 530366001

Lower Housing

$8.49

$

In Stock, only 2 left!

0

3

Homelite 530455002

Bump Knob (Green)

$4.49

$

In Stock, Qty 8

0

4

Homelite 530670001

Spool

$2.99

$

In Stock, Qty 9

0

5

Homelite 529803001

String Guide

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 678749001

Compression Spring

$1.99

$

In Stock, Qty 20+

0

7

Homelite 695215001

Hex Nut (M8, L.H. Thread)

$

$

Not available

8

Homelite 530001001

Upper Housing

$

$

Not available

9

Homelite 312283001

Crank Handle Assembly

$2.99

$

In Stock, only 2 left!

0

10

Homelite 678011001

Flanged Washer
(Superseded to 099078001005)

$10.99

$

Usually ships in 3-7 days

0

11

Homelite 308210009

Gear Case Assembly

$48.99

$

In Stock, only 1 left!

0

12

Homelite 660642001

Screw (1/4-20 x 1-1/4 in., Hex Washer Hd. S.T.)
(Superseded to 983381007)

$2.49

$

In Stock, Qty 5

0

13

Homelite 660641001

Screw (10-24 x 5/8 in., Hex Washer Hd. S.T.)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 518367001

Spacer

$1.99

$

In Stock, only 3 left!

0

15

Homelite 660886001

Wing Screw (1/4-20 x 7/8 in.)

$1.99

$

In Stock, Qty 5

0

16

Homelite 940726013

Expand-it Label

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 940657165

Warning Icon Label

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 518019002

Storage Hanger Cap
(Superseded to 518019004)

$1.99

$

In Stock, Qty 6

0

19

Homelite 308035047

Straight Shaft Assembly

Note: (Inc. Key Nos. 16-18)

$37.99

$

Usually ships in 3-7 days

0

20

Homelite 308473005

Grass Deflector Assembly

Note: (Inc. Key No. 15)

$16.99

$

In Stock, only 1 left!

0

Homelite 995000172

Operator's Manual

Note: NOT SHOWN

$

$

Not available
