RY RM8003 (099263002) - Ryobi 54" Zero-Turn Mower, Rev 01 (2022-08) FIGURE N - ELECTRICAL COMPONENTS Parts Diagram

54" Zero-Turn Mower, Rev 01

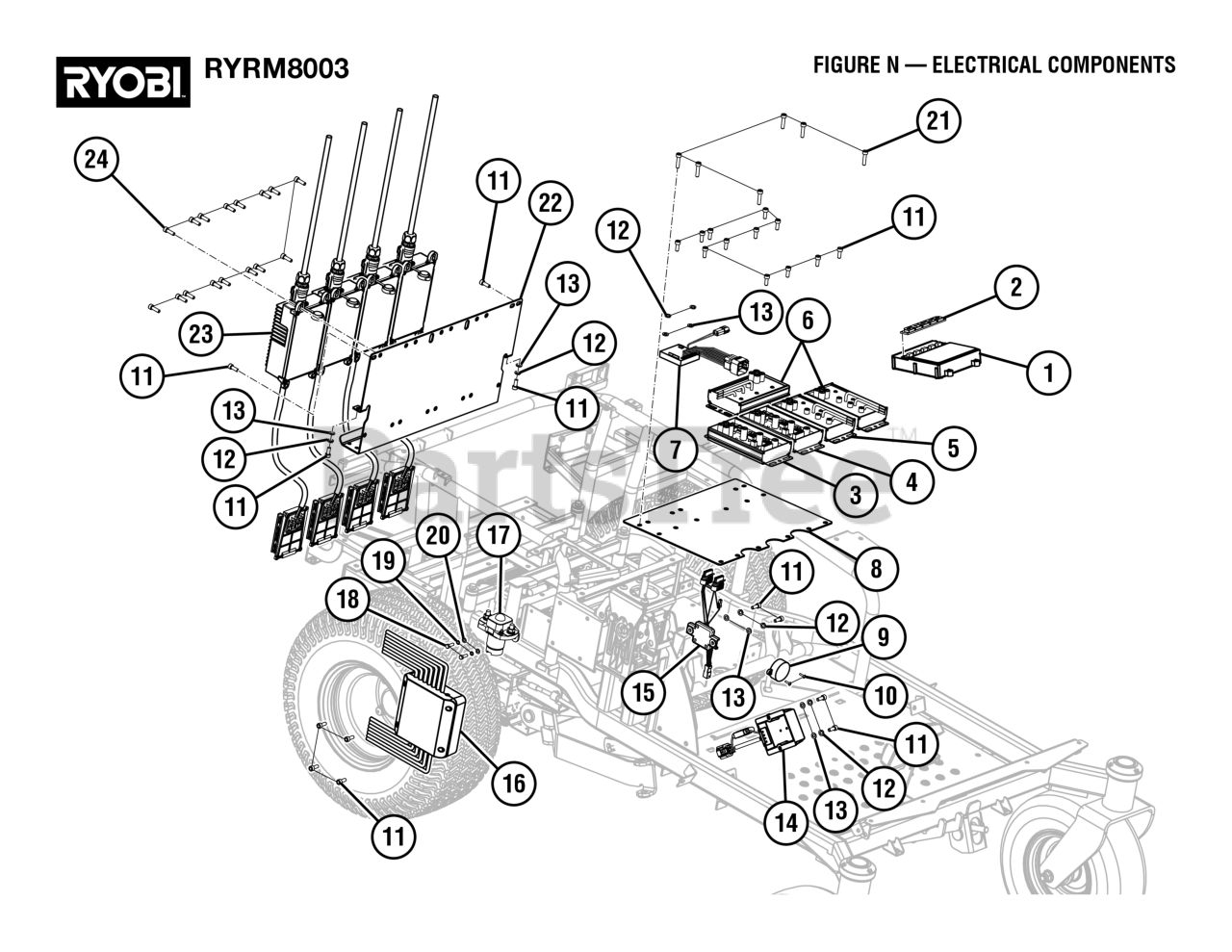

FIGURE N - ELECTRICAL COMPONENTS Parts Diagram

  • Title

1

Homelite 997000281

LCD Module Assembly

$992.99

$

Usually ships in 3-7 days

0

2

Homelite 997000006

LCD Buttons

$2.99

$

Usually ships in 3-7 days

0

3

Homelite 997958001

Drive Deck Controller (Right)

$943.99

$

Usually ships in 3-7 days

0

4

Homelite 997957001

Drive Deck Controller (Left)

$943.99

$

Usually ships in 3-7 days

0

5

Homelite 997000272

Deck Controller (Primary)

$574.99

$

Usually ships in 3-7 days

0

6

Homelite 997000273

Deck Controller (Secondary)

$556.99

$

Usually ships in 3-7 days

0

7

Homelite 281478001

TIC Assembly

$185.99

$

Usually ships in 3-7 days

0

8

Homelite 997961001

Controller Mounting Plate

$31.99

$

Usually ships in 3-7 days

0

9

Homelite 997149001

Beeper, ZTR

$22.99

$

Usually ships in 3-7 days

0

10

Homelite 997094001

Screw (M3 x 12 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 997098001

Screw (M6 x 16 mm, Soc. Hd.)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 996058001

Spring Washer (M6) (For Deck Motor Controllers T & U)

$2.99

$

Usually ships in 3-7 days

0

13

Homelite 996281001

Washer (OD12 x ID6.4 x 1.6t) (For Deck Motor Controllers T & U)

$2.99

$

Usually ships in 3-7 days

0

14

Homelite 997077001

DC to DC Converter, ZTR

$120.99

$

Usually ships in 3-7 days

0

15

Homelite 281496002

Mixing Board Assembly

$99.99

$

Usually ships in 3-7 days

0

16

Homelite 997000080

Terminal Box Assembly

$30.99

$

Usually ships in 3-7 days

0

17

Homelite 994993001

Main Relay (G)
(Superseded to 996497001)

$161.99

$

Usually ships in 3-7 days

0

18

Homelite 996565001

Bolt (M5 x 16 mm, Hex hd.) (For Main Relay G)

$2.99

$

Usually ships in 3-7 days

0

19

Homelite 996286001

Lock Washer (For Main Relay G)

$3.49

$

Usually ships in 3-7 days

0

20

Homelite 996295001

Washer (OD12 x ID5.3 x 1t) (For Main Relay G and Power Converter I)

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 997000230

Bolt (M6 x 25 mm, Socket Hd.)

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 997962001

Booster Mounting Plate

$47.99

$

Usually ships in 3-7 days

0

23

Homelite 997976001

80V Booster

$1233.99

$

Usually ships in 3-7 days

0

24

Homelite 997148001

Screw (M6 x 20 mm, Soc. Hd.)

$1.49

$

Usually ships in 3-7 days

0

Homelite 997000187

Main Wiring Harness

Note: Not Shown

$339.99

$

Usually ships in 3-7 days

0

Homelite 997000275

Main Battery Cable

Note: Not Shown

$929.99

$

Usually ships in 3-7 days

0

Homelite 997000189

Battery Cable 2

Note: Not Shown

$56.99

$

Usually ships in 3-7 days

0

Homelite 997000190

Battery Cable 3

Note: Not Shown

$268.99

$

Usually ships in 3-7 days

0

Homelite 997000191

Battery Cable 4

Note: Not Shown

$476.99

$

Usually ships in 3-7 days

0
