RY RM8003 (099263002) - Ryobi 54" Zero-Turn Mower, Rev 01 (2022-08) FIGURE L - CHARGER PORT ASSEMBLY Parts Diagram

54" Zero-Turn Mower, Rev 01

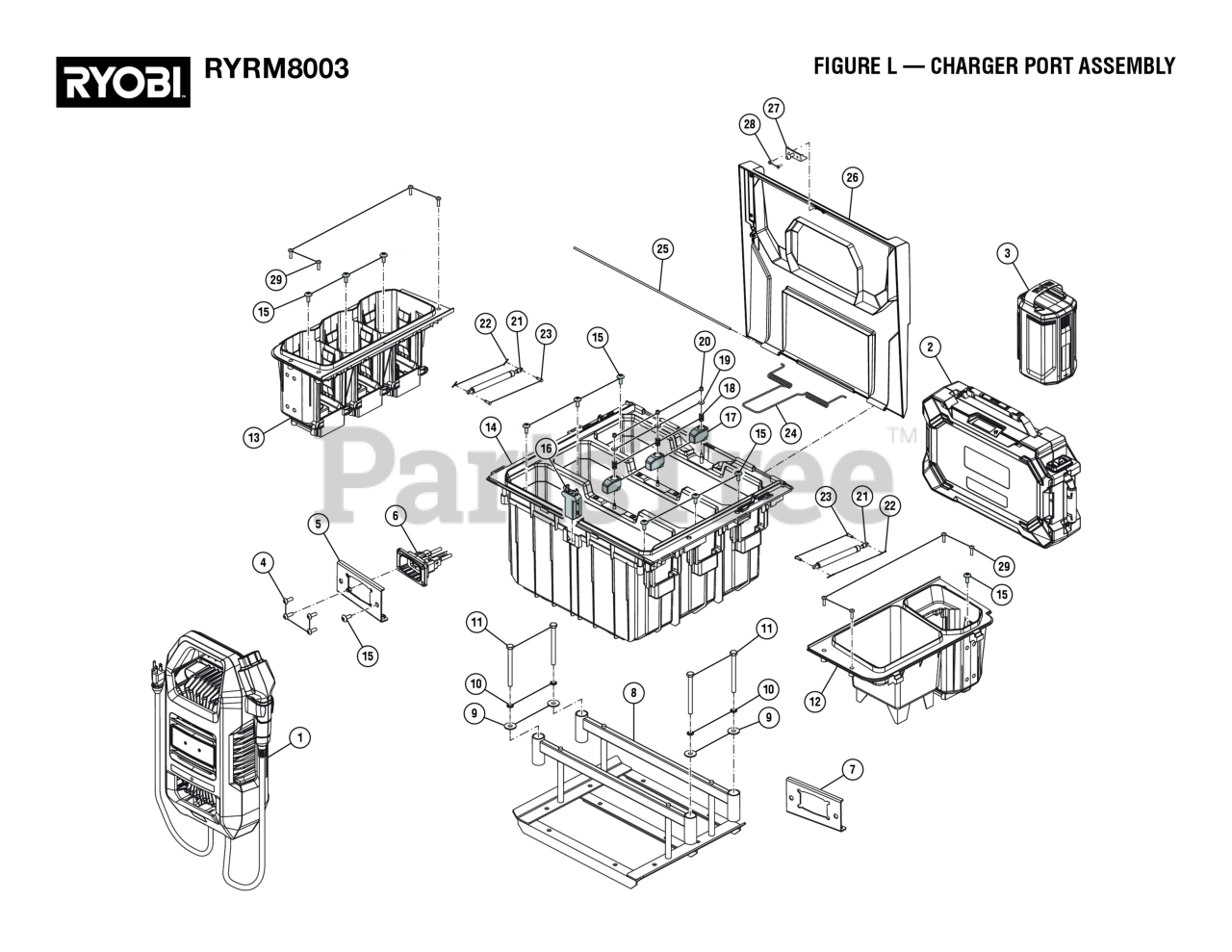

FIGURE L - CHARGER PORT ASSEMBLY Parts Diagram

  • Title
1

Homelite 140494001

Charger, 120V-AC (1440W, 90V-DC)

$2435.99

$

Usually ships in 3-7 days

0

2

Homelite 130662001DG9

80V Battery Pack (720Wh)

$

$

Currently unavailable

3

Homelite 130531003DG9

40V Battery Pack (12Ah)

$

$

Currently unavailable

4

Homelite 997000283

Screw (M6 x 16 mm, Torx Hd.)

$

$

Currently unavailable

5

Homelite 997000196

Charging Port Mount

$10.99

$

Usually ships in 3-7 days

0

6

Homelite 997772001

80V Charging Receptacle

$

$

Currently unavailable

7

Homelite 997000213

Mount Plate (Right)

$7.99

$

Usually ships in 3-7 days

0

8

Homelite 997000210

Battery Compartment Frame

$88.99

$

Usually ships in 3-7 days

0

9

Homelite 994827001

Washer (OD 24 x ID8.4 x 2t)

$2.99

$

In Stock, only 1 left!

0

10

Homelite 994770001

Lock Washer (OD9.8 x ID8.5 x 5t)

$2.99

$

Usually ships in 3-7 days

0

11

Homelite 997000297

Bolt (M8 x 90 mm, Hex Hd.)

$

$

Currently unavailable

12

Homelite 997952001

40V Battery Bucket (Right)

$60.99

$

Usually ships in 3-7 days

0

13

Homelite 997946001

40V Battery Bucket (Left)

$67.99

$

Usually ships in 3-7 days

0

14

Homelite 997000282

80V Battery Bucket Assembly

$

$

Currently unavailable

15

Homelite 994989001

Screw (M6 x 10 mm, Soc. Button Hd.)

$2.99

$

In Stock, Qty 5

0

16

Homelite 997945001

Push-To-Open Switch

$26.99

$

Usually ships in 3-7 days

0

17

Homelite 997000211

Battery Retainer

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 997000137

Battery Retainer Spring

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 996294001

Washer (OD12 x ID4.3 x 1t)

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 996301001

Nut (M4 x 0.7, Lock)

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 997000198

Battery Compartment Shock

$23.99

$

Usually ships in 3-7 days

0

22

Homelite 997000139

Cotter Pin

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 997000138

Damper Pin

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 997000201

Torsion Spring

$9.49

$

Usually ships in 3-7 days

0

25

Homelite 997000199

Compartment Lid Pin

$3.49

$

Usually ships in 3-7 days

0

26

Homelite 997000200

80V Battery Lid

$139.99

$

Usually ships in 3-7 days

0

27

Homelite 997000206

Battery Cover Lock

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 997000299

Lock Block Screw

$

$

Currently unavailable

29

Homelite 996213001

SCREW,PPHMS, M5 X 0.8 X 16 - STEEL,

$2.49

$

Usually ships in 3-7 days

0
