RY RM8003 (099263002) - Ryobi 54" Zero-Turn Mower, Rev 01 (2022-08) FIGURE G - DECK LIFTING ASSEMBLY Parts Diagram

54" Zero-Turn Mower, Rev 01

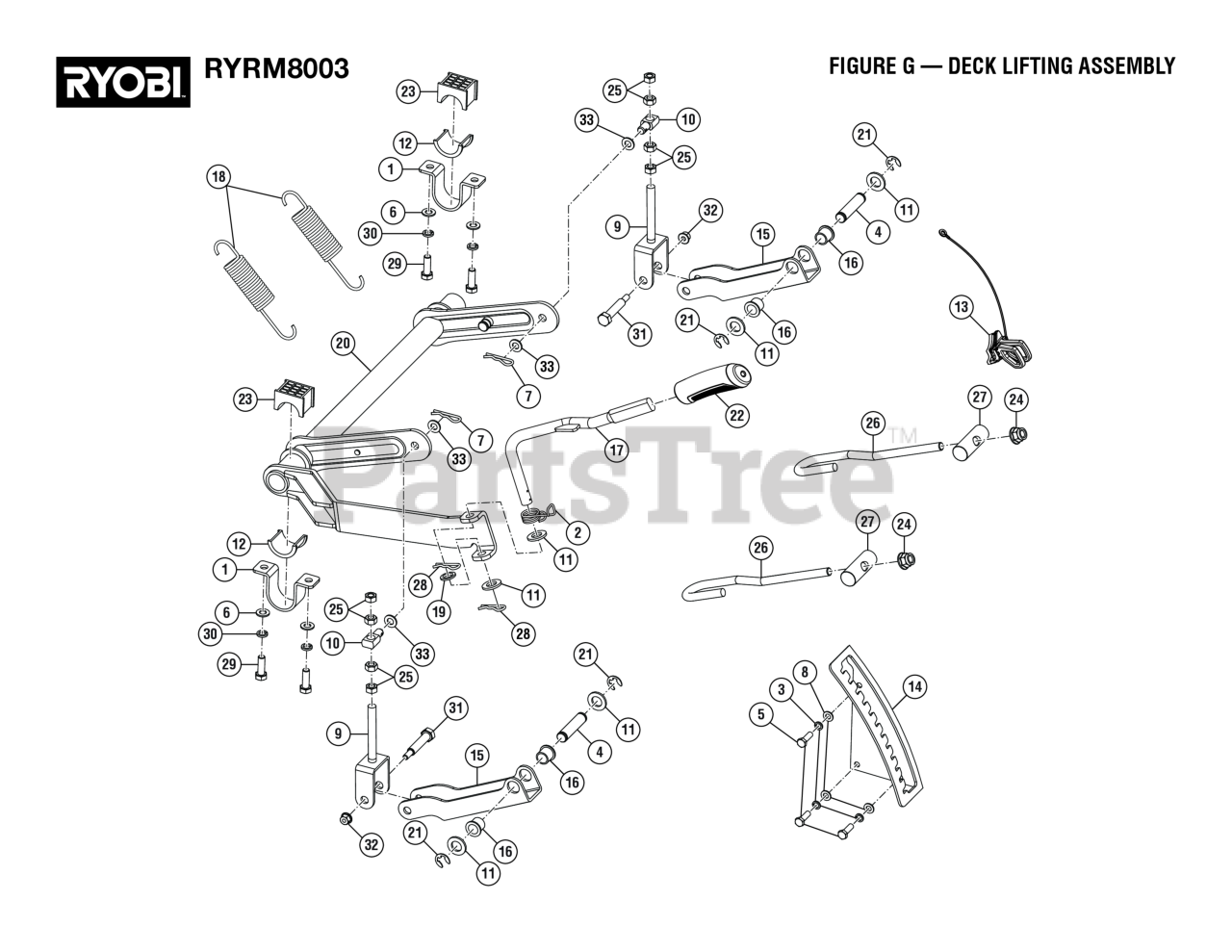

FIGURE G - DECK LIFTING ASSEMBLY Parts Diagram

  • Title
1

Homelite 997458001

Deck Lift Axle Mount

$8.99

$

Usually ships in 3-7 days

0

2

Homelite 997000256

Deck Lift Lever Torsion Spring

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 994771001

Washer (OD16 x ID8.4 x 1.6t)

$2.99

$

Usually ships in 3-7 days

0

4

Homelite 997474001

Deck Baffle (42 in.)

$9.99

$

In Stock, only 1 left!

0

5

Homelite 996046001

Bolt (M8 x 25 mm, Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

6

Homelite 994996001

Washer (OD20 x ID10.5 x 2t)

$3.49

$

In Stock, Qty 5

0

7

Homelite 996233001

Cotter Pin

$1.99

$

In Stock, only 1 left!

0

8

Homelite 994771001

Washer (OD16 x ID8.4 x 1.6t)

$2.99

$

Usually ships in 3-7 days

0

9

Homelite 997000247

Deck Lift Linkage

$14.99

$

Usually ships in 3-7 days

0

10

Homelite 997455001

Hanger Stud

$9.99

$

Usually ships in 3-7 days

0

11

Homelite 994763001

Washer (OD30 x ID17 x 3t)

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 997456001

Deck Lift Axle Bushing, Bottom

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 997128001

Cut Height Memory Plug

$4.99

$

Usually ships in 3-7 days

0

14

Homelite 997679001

Detent Plate

$43.99

$

Usually ships in 3-7 days

0

15

Homelite 997460001

Deck Lift Linkage

$28.99

$

Usually ships in 3-7 days

0

16

Homelite 997359001

Deck Lift Linkage Bushing

$5.99

$

In Stock, only 1 left!

0

17

Homelite 997000258

Deck Lift Lever

$18.99

$

Usually ships in 3-7 days

0

18

Homelite 997461001

Deck Lift Spring

$27.99

$

Usually ships in 3-7 days

0

19

Homelite 997000257

Deck Lever Int. Washer

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 997000251

Deck Lift Axle

$167.99

$

Usually ships in 3-7 days

0

21

Homelite 994833001

E-Ring Clip (12 mm)

$2.49

$

In Stock, Qty 5

0

22

Homelite 997000259

Decklift Handle

$5.99

$

Usually ships in 3-7 days

0

23

Homelite 997457001

Deck Lift Axle Bushing,Top

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 996999001

Flange Nut (M12)

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 994788001

Hex Nut (M12 x 1.75 mm)

$

$

Not available

26

Homelite 997453001

J-Hook, Front Deck Hanger

$27.99

$

Usually ships in 3-7 days

0

27

Homelite 997097001

Front Deck Hanger Pivot Axle

$6.49

$

Usually ships in 3-7 days

0

28

Homelite 994930001

Lock Pin (16 mm)

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 997106001

Hex Head (M10 x 30 mm)

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 994998001

Lock Washer (M10)

$

$

Not available

31

Homelite 997478001

Deck Linkage Shoulder Bolt

$10.99

$

In Stock, only 1 left!

0

32

Homelite 994867001

Flange Nut (M8) (For Drive Motor Controller V)

$2.49

$

In Stock, Qty 7

0

33

Homelite 994891001

Washer (OD24 x ID13 x 2.5t)

$2.99

$

Usually ships in 3-7 days

0
