RY RM8003 (099263002) - Ryobi 54" Zero-Turn Mower, Rev 01 (2022-08) FIGURE D - DECK ASSEMBLY Parts Diagram

54" Zero-Turn Mower, Rev 01

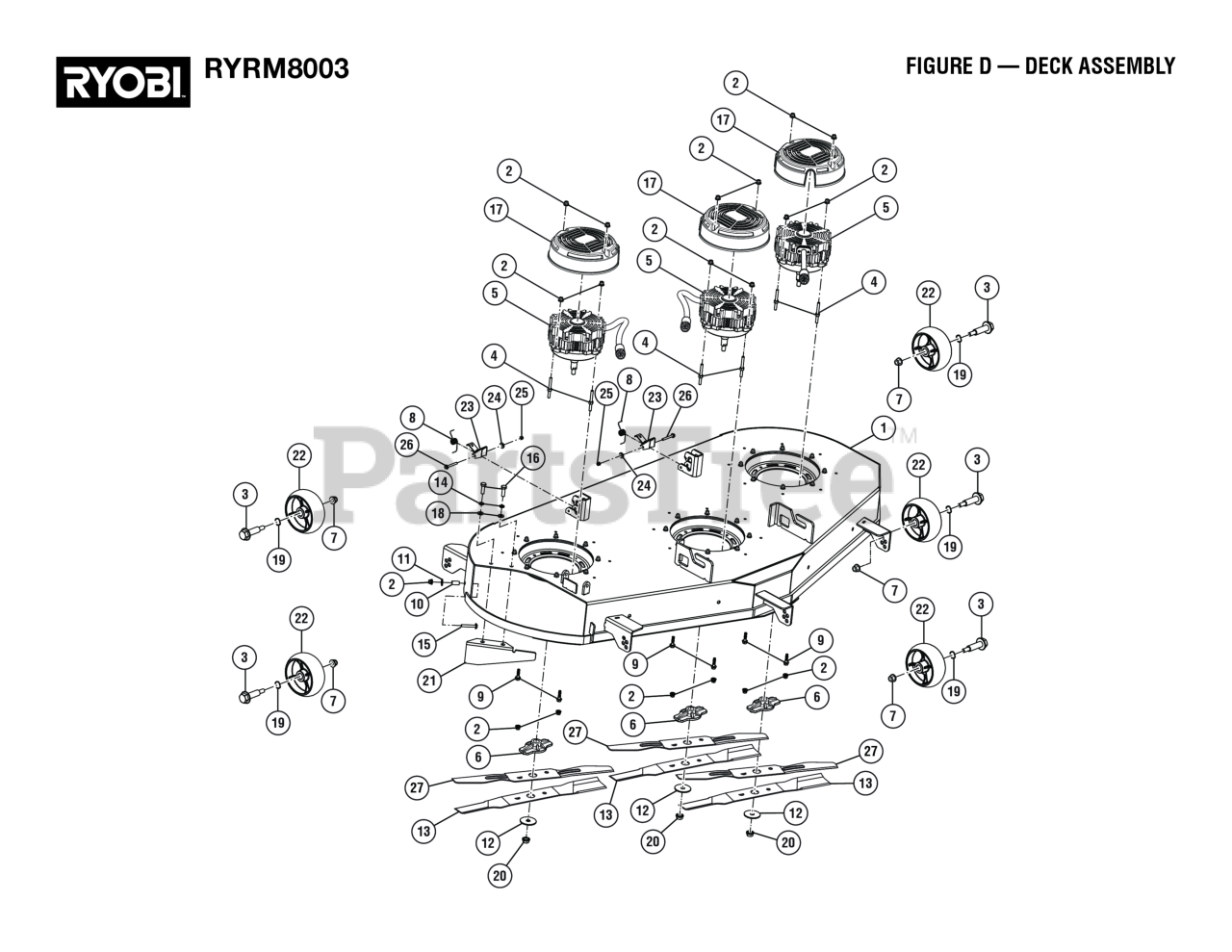

FIGURE D - DECK ASSEMBLY Parts Diagram

  • Title

1

Homelite 997462001

Deck, 54 in.

Note: (Inc. Key Nos. 8, 23, and 28-29)

$2637.99

$

Usually ships in 3-7 days

0

2

Homelite 996251001

Flange Lock Nut (M6 x 1.00)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 996205001

Shoulder Bolt (M10 x 70 mm)

$20.99

$

In Stock, only 1 left!

0

4

Homelite 996201001

Threaded Stud (M6 x 35 mm)

$18.99

$

In Stock, only 1 left!

0

5

Homelite 997886001

Deck Motor

$964.99

$

Usually ships in 3-7 days

0

6

Homelite 997920001

Crosscut Blade Adapter

$11.99

$

Usually ships in 3-7 days

0

7

Homelite 996192001

Lock Nut (M10 x 1.5 mm)

$2.49

$

In Stock, Qty 5

0

8

Homelite 997683001

Deck Clip Spring

$5.49

$

Usually ships in 3-7 days

0

9

Homelite 996057001

Flange Bolt (M6 x 25 mm, Hex Hd.)

$2.99

$

In Stock, only 4 left!

0

10

Homelite 996039001

Deck Bagger Chute Mounting Shaft

$2.99

$

Usually ships in 3-7 days

0

11

Homelite 996034001

Washer (OD18 x ID6.4 x 1.6t)

$3.49

$

In Stock, Qty 14

0

12

Homelite 997028001

Blade Retainer Washer

$5.99

$

In Stock, only 2 left!

0

13

Homelite 997464001

Blade (18.5 in.)

$34.99

$

In Stock, only 3 left!

0

14

Homelite 994770001

Lock Washer (OD9.8 x ID8.5 x 5t)

$2.99

$

Usually ships in 3-7 days

0

15

Homelite 996250001

Screw (M6 x 40, Soc Hd.)

$2.99

$

Usually ships in 3-7 days

0

16

Homelite 996046001

Bolt (M8 x 25 mm, Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

17

Homelite 997463001

Deck Motor Cover, Top

$14.99

$

In Stock, only 2 left!

0

18

Homelite 994771001

Washer (OD16 x ID8.4 x 1.6t)

$2.99

$

Usually ships in 3-7 days

0

19

Homelite 996355001

Spring Washer (OD20.5 x ID17 x 0.3t)

$3.49

$

In Stock, only 2 left!

0

20

Homelite 996261001

Flange Lock Nut (M10 x 1.25)

$2.49

$

In Stock, only 2 left!

0

21

Homelite 997471001

Deck Baffle

$17.99

$

Usually ships in 3-7 days

0

22

Homelite 996265001

Front Deck Roller Wheel (124.5 Dia.)

$32.99

$

In Stock, only 2 left!

0

23

Homelite 997479001

Deck Clip Latch

$9.99

$

Usually ships in 3-7 days

0

24

Homelite 996295001

Washer (OD12 x ID5.3 x 1t) (For Main Relay G and Power Converter I)

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 997477001

Flange Nut (M5)

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 997476001

Bolt (M5 x 45 mm)

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 682653001

Crosscut Blade

$

$

Currently unavailable
