RY RM8003 (099263002) - Ryobi 54" Zero-Turn Mower, Rev 01 (2022-08) FIGURE B - Floor Panel Assembly Parts Diagram

54" Zero-Turn Mower, Rev 01

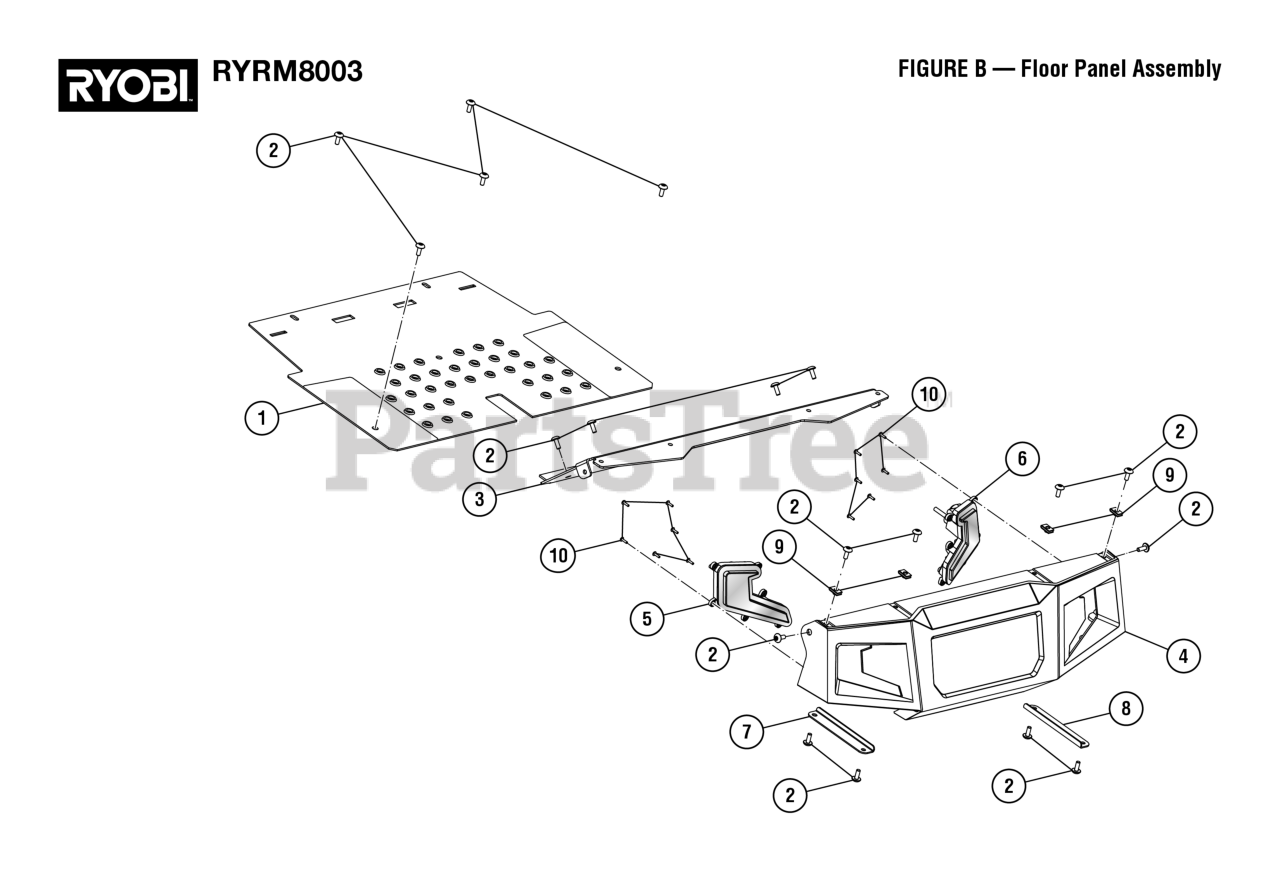

FIGURE B - Floor Panel Assembly Parts Diagram

  • Title
1

Homelite 997931001

Floor Board

$92.99

$

Usually ships in 3-7 days

0

2

Homelite 994989001

Screw (M6 x 10 mm, Soc. Button Hd.)

$2.99

$

In Stock, Qty 8

0

3

Homelite 997930001

Foot Rest

$82.99

$

Usually ships in 3-7 days

0

4

Homelite 997927001

Front Fascia

$28.99

$

Usually ships in 3-7 days

0

5

Homelite 997929001

LED Headlight Assemly (Right)

$53.99

$

Usually ships in 3-7 days

0

6

Homelite 997928001

LED Headlight Assembly (Left)

$53.99

$

Usually ships in 3-7 days

0

7

Homelite 997000181

Fascia Brace (Right)

$6.49

$

Usually ships in 3-7 days

0

8

Homelite 997000180

Fascia Brace (Left)

$6.49

$

Usually ships in 3-7 days

0

9

Homelite 994785001

Clip-On Nut (M6)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 997094001

Screw (M3 x 12 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0
