RY RM8003 (099263002) - Ryobi 54" Zero-Turn Mower, Rev 01 (2022-08) FIGURE A - WHEELS AND HUB CAPS Parts Diagram

54" Zero-Turn Mower, Rev 01

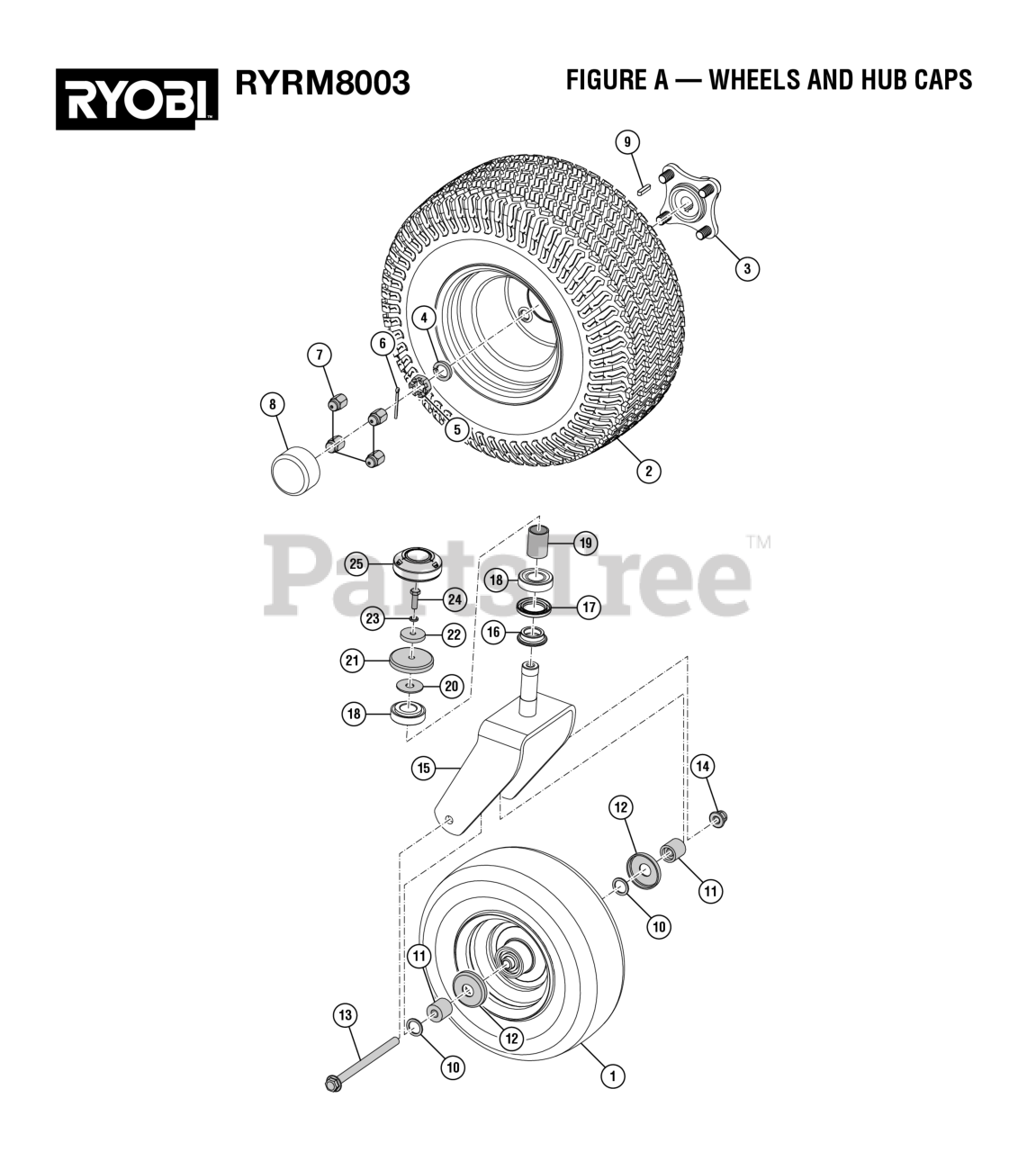

FIGURE A - WHEELS AND HUB CAPS Parts Diagram

  • Title
1

Homelite 996996001

Caster Wheel

$217.99

$

In Stock, only 1 left!

0

2

$

$

Currently unavailable

3

Homelite 996987001

Wheel Hub

$63.99

$

Usually ships in 3-7 days

0

4

Homelite 997134001

Lock Spring Washer (20.6 x 30.6 x 4.8t)

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 997138001

Castle Nut (M20)

$3.49

$

Usually ships in 3-7 days

0

6

Homelite 997139001

Drive Shaft Cotter Pin

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 997143001

Acorn Nut (M14)

$6.49

$

Usually ships in 3-7 days

0

8

Homelite 996029001

Wheel Hub Cover

$4.49

$

Usually ships in 3-7 days

0

9

Homelite 996988001

Key (6 mm x 6 mm x 30 mm)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 994842001

Washer (OD28 x ID20.5 x 2t)

$2.49

$

In Stock, only 3 left!

0

11

Homelite 996997001

Caster Wheel Spacer

$9.49

$

Usually ships in 3-7 days

0

12

Homelite 994857001

Front Wheel Bearing Cover

$7.49

$

Usually ships in 3-7 days

0

13

Homelite 996998001

Flange Bolt (M12 x 170 mm, Hex Hd.)

$17.99

$

Usually ships in 3-7 days

0

14

Homelite 996999001

Flange Nut (M12)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 996990001

Caster Fork

$141.99

$

Usually ships in 3-7 days

0

16

Homelite 996991001

Bearing Assembly Base

$17.99

$

Usually ships in 3-7 days

0

17

Homelite 997125001

Rubber Seal

$3.99

$

Usually ships in 3-7 days

0

18

Homelite 996992001

Roller Bearing (ID 25 mm x OD 52 mm)

$25.99

$

Usually ships in 3-7 days

0

19

Homelite 996993001

Bearing Assembly Spacer

$7.49

$

Usually ships in 3-7 days

0

20

Homelite 997036001

Fender Washer (OD40 x ID12.5 x 2t)

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 996994001

Bearing Assembly Cap

$7.49

$

Usually ships in 3-7 days

0

22

Homelite 996995001

Fender Washer (OD37 x ID8.4 x 6t)

$5.49

$

Usually ships in 3-7 days

0

23

Homelite 994770001

Lock Washer (OD9.8 x ID8.5 x 5t)

$2.99

$

Usually ships in 3-7 days

0

24

Homelite 996046001

Bolt (M8 x 25 mm, Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

25

Homelite 997130001

Caster Fork Cover

$3.99

$

Usually ships in 3-7 days

0

Homelite 998000937

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
