RY RM8002 (099262002) - Ryobi 42" Zero-Turn Mower, Rev 01 (2022-08) MAIN HARNESS WIRING DIAGRAM Parts Diagram

42" Zero-Turn Mower, Rev 01

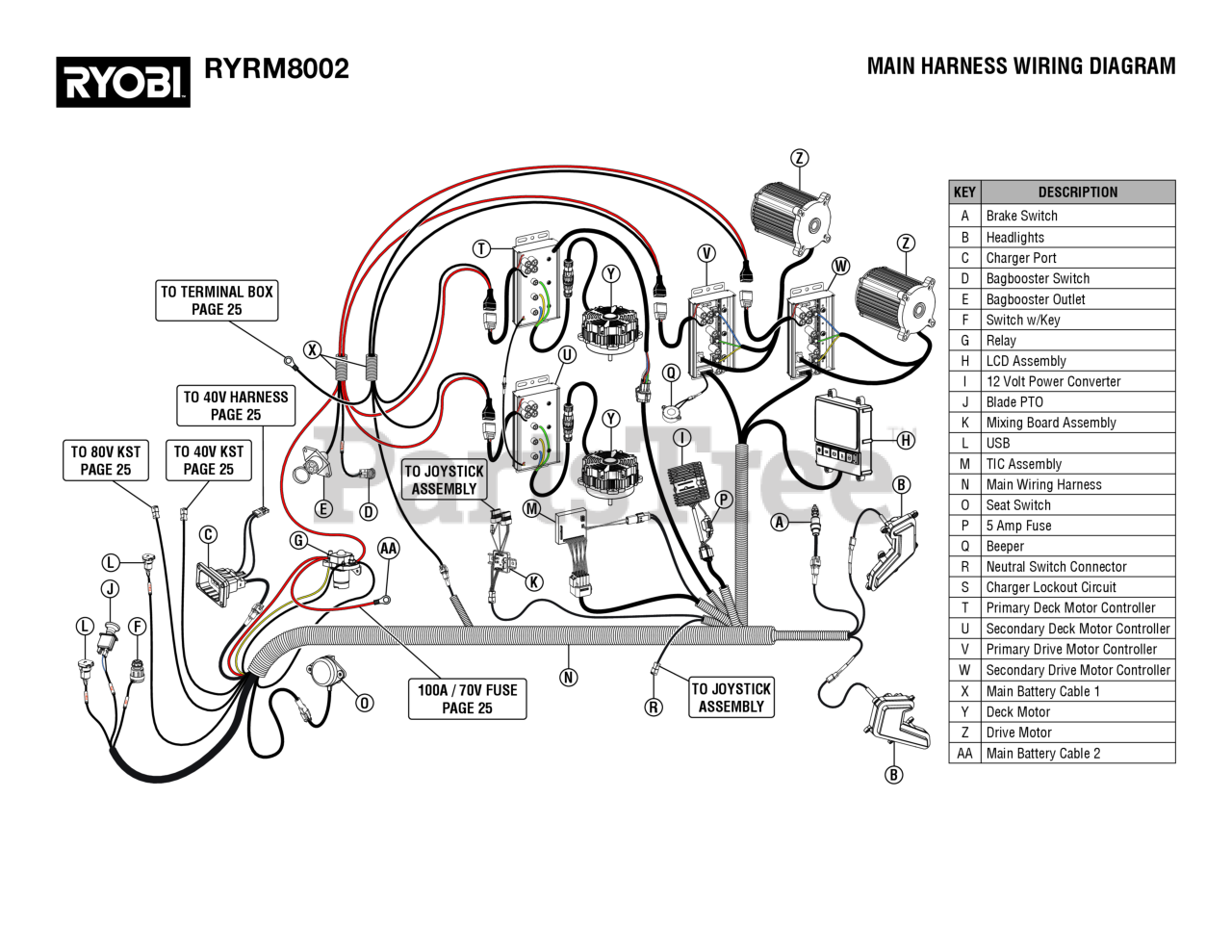

MAIN HARNESS WIRING DIAGRAM Parts Diagram

  • Title

A

Brake Switch

$

$

Not available

B

Headlights

$

$

Not available

C

Charger Port

$

$

Not available

D

Bagbooster Switch

$

$

Not available

E

Bagbooster Outlet

$

$

Not available

F

Switch w/Key

$

$

Not available

G

Relay

$

$

Not available

H

LCD Assembly

$

$

Not available

I

12 Volt Power Converter

$

$

Not available

J

Blade PTO

$

$

Not available

K

Mixing Board Assembly

$

$

Not available

L

USB

$

$

Not available

M

TIC Assembly

$

$

Not available

N

Main Wiring Harness

$

$

Not available

O

Seat Switch

$

$

Not available

P

5 Amp Fuse

$

$

Not available

Q

Beeper

$

$

Not available

R

Neutral Switch Connector

$

$

Not available

S

Charger Lockout Circuit

$

$

Not available

T

Primary Deck Motor Controller

$

$

Not available

U

Secondary Deck Motor Controller

$

$

Not available

V

Primary Drive Motor Controller

$

$

Not available

W

Secondary Drive Motor Controller

$

$

Not available

X

Main Battery Cable 1

$

$

Not available

Y

Deck Motor

$

$

Not available

Z

Drive Motor

$

$

Not available

AA

Main Battery Cable 2

$

$

Not available
