RY RM8002 (099262002) - Ryobi 42" Zero-Turn Mower, Rev 01 (2022-08) FIGURE G - DECK LIFTING ASSEMBLY Parts Diagram

42" Zero-Turn Mower, Rev 01

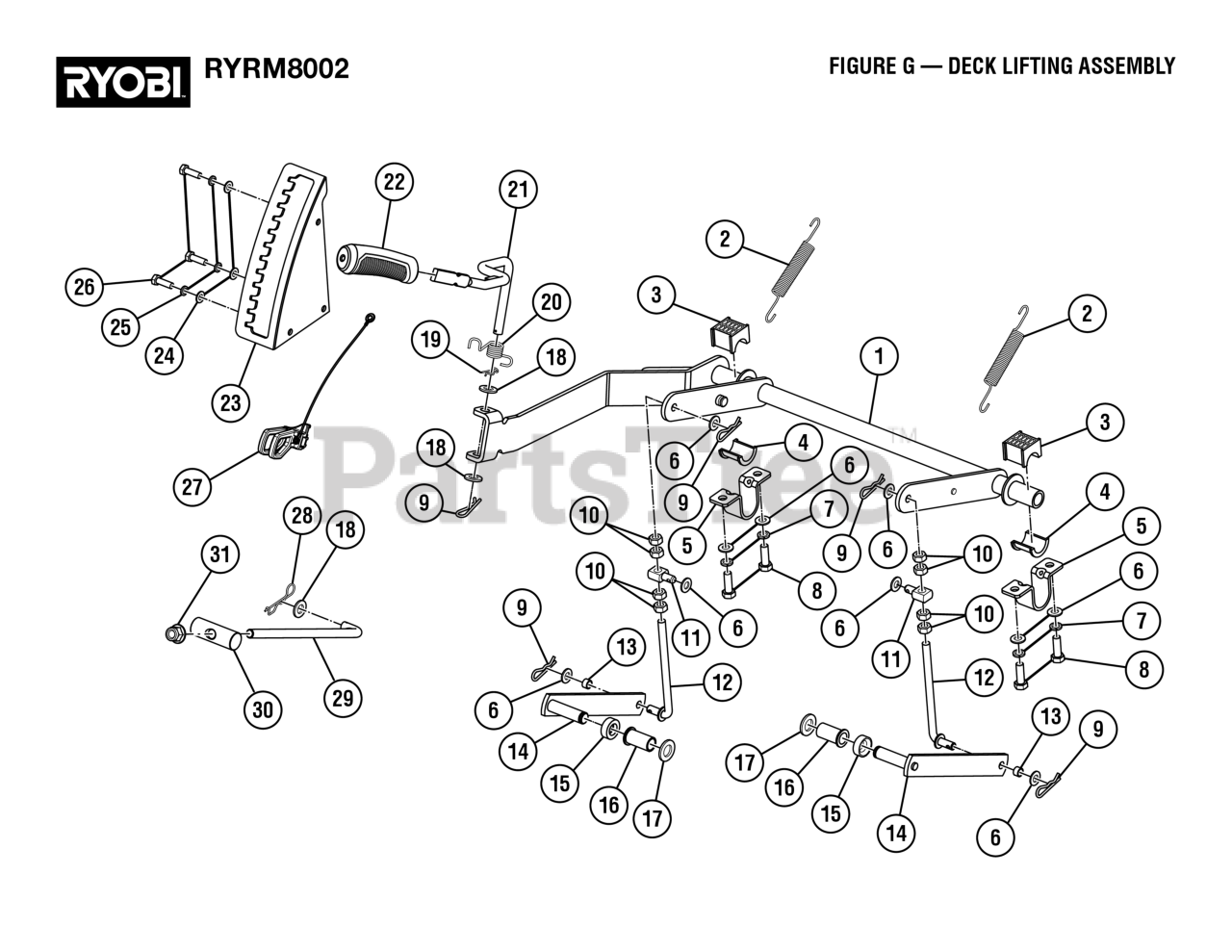

FIGURE G - DECK LIFTING ASSEMBLY Parts Diagram

  • Title
1

Homelite 997016001

Deck Lift Linkage and Axle Assembly

$122.99

$

Usually ships in 3-7 days

0

2

Homelite 997025001

Deck Lift Spring

$4.49

$

Usually ships in 3-7 days

0

3

Homelite 997014001

Deck Lift Axle Bushing,Top

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 997015001

Deck Lift Axle Bushing, Bottom

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 991013001

Deck Lift Axle Mount

$

$

Currently unavailable

6

Homelite 994996001

Washer (OD20 x ID10.5 x 2t)

$3.49

$

In Stock, Qty 5

0

7

Homelite 994998001

Lock Washer (M10)

$

$

Not available

8

Homelite 997106001

Hex Head (M10 x 30 mm)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 996233001

Cotter Pin

$1.99

$

In Stock, only 1 left!

0

10

Homelite 996263001

Nut (M10)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 997126001

Hanger Stud, ZTR

$4.49

$

Usually ships in 3-7 days

0

12

Homelite 997017001

J Hook, Deck Hanger

$6.49

$

Usually ships in 3-7 days

0

13

Homelite 997000171

J-Hook Bushing

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 997018001

Deck Lift Linkage

$20.99

$

Usually ships in 3-7 days

0

15

Homelite 997093001

Deck Lift Linkage Spacer

$3.99

$

Usually ships in 3-7 days

0

16

Homelite 997019001

Deck Lift Linkage Bushing

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 994763001

Washer (OD30 x ID17 x 3t)

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 994891001

Washer (OD24 x ID13 x 2.5t)

$2.99

$

Usually ships in 3-7 days

0

19

Homelite 994892001

Cotter Pin (12 mm)

$2.99

$

Usually ships in 3-7 days

0

20

Homelite 997023001

Deck Lift Lever Torsion Spring

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 997022001

Deck Lift Lever

$23.99

$

Usually ships in 3-7 days

0

22

Homelite 994972001

Decklift Handle

$13.99

$

Usually ships in 3-7 days

0

23

Homelite 997679001

Detent Plate

$43.99

$

Usually ships in 3-7 days

0

24

Homelite 994771001

Washer (OD16 x ID8.4 x 1.6t)

$2.99

$

Usually ships in 3-7 days

0

25

Homelite 994770001

Lock Washer (OD9.8 x ID8.5 x 5t)

$2.99

$

Usually ships in 3-7 days

0

26

Homelite 996046001

Bolt (M8 x 25 mm, Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

27

Homelite 997128001

Cut Height Memory Plug

$4.99

$

Usually ships in 3-7 days

0

28

Homelite 997140001

Hinge Cotter Pin

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 997000170

Front Deck Hook

$9.99

$

Usually ships in 3-7 days

0

30

Homelite 997097001

Front Deck Hanger Pivot Axle

$6.49

$

Usually ships in 3-7 days

0

31

Homelite 996999001

Flange Nut (M12)

$1.99

$

Usually ships in 3-7 days

0
