RY PRN33 (090112021) - Ryobi Expand-It Pruner Attachment General Assembly Parts Diagram

Expand-It Pruner Attachment

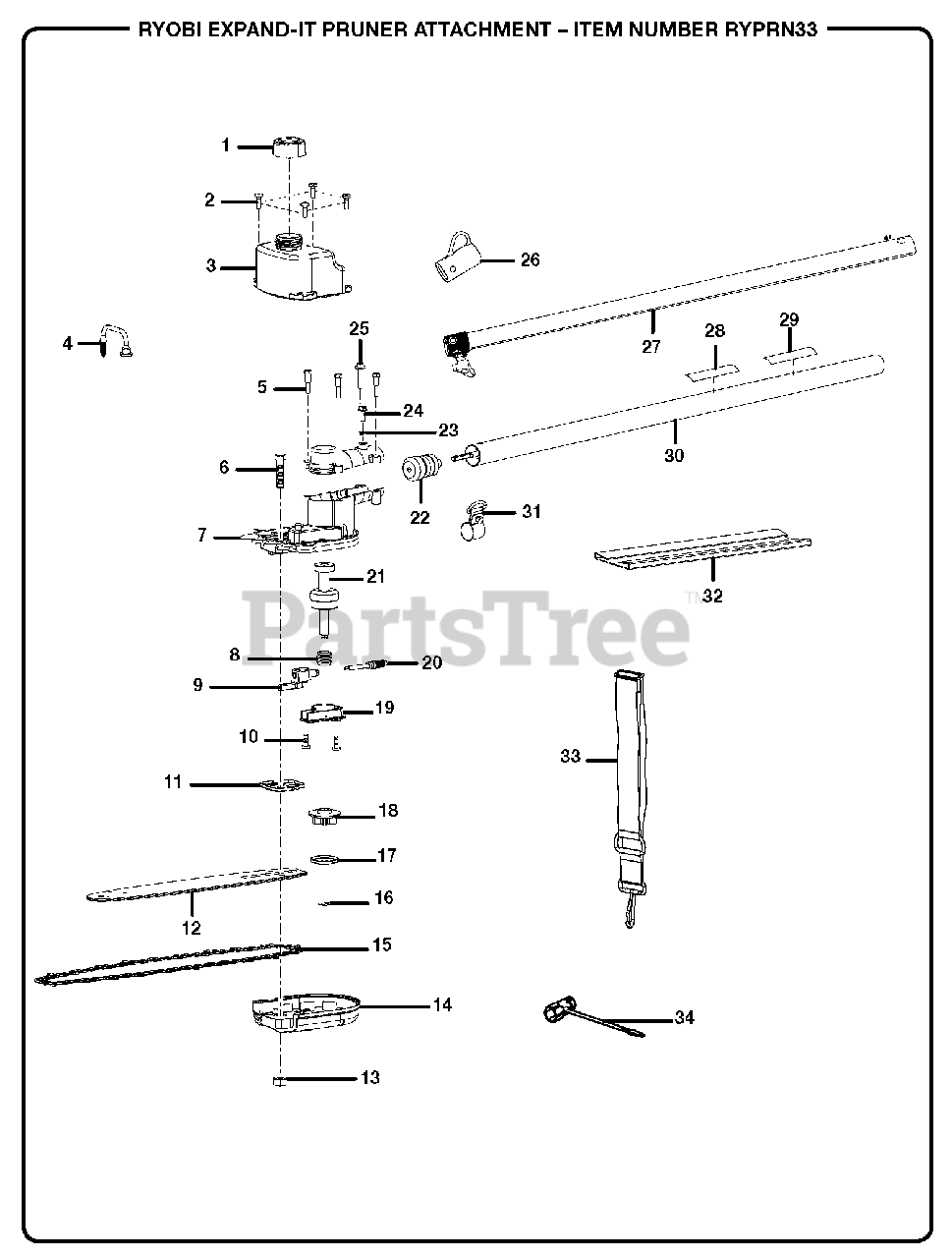

General Assembly Parts Diagram

  • Title

1

Homelite 308680010

Oil Cap Assembly
(Superseded to 308680008)

$11.99

$

In Stock, only 1 left!

0

2

Homelite 660934003

Screw (M5 x 18 mm)

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 580877001

Oil Tank Cover Assembly

$9.49

$

In Stock, only 1 left!

0

4

Homelite 570714001

Oil Pickup Tube

$2.99

$

Usually ships in 3-7 days

0

5

Homelite 660913001

Screw (M5 x 25 mm)
(Superseded to 986155001)

$

$

Not available

6

Homelite 660910002

Screw (M8 x 35 mm)

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 308532002

Gear Case Assembly

$43.99

$

Usually ships in 3-7 days

0

8

Homelite 610617001

Worm Gear
(Superseded to 985223001)

$26.99

$

Usually ships in 3-7 days

0

9

Homelite 308523001

Oil Pump Seal Assembly
(Superseded to 986166001)

$19.99

$

Usually ships in 3-7 days

0

10

Homelite 660912001

Screw (M5 x 13 mm)
(Superseded to 090038001017)

$

$

Not available

11

Homelite 638282001

Bar Pad Plate

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 671834023

Guide Bar

$46.99

$

In Stock, only 1 left!

0

13

Homelite 678355001

Hex Nut (M8 x 1.25, Special)
(Superseded to 986163001)

$

$

Not available

14

Homelite 120530013

Bar Clamp Assembly

$15.99

$

Usually ships in 3-7 days

0

15

Homelite 693814001

Chain (10 in.)

$22.99

$

In Stock, only 1 left!

0

16

Homelite 678354001

E-Ring (Dia. 6 mm)
(Superseded to 986162001)

$2.99

$

In Stock, only 2 left!

0

17

Homelite 631060001

Cupped Washer

$

$

Not available

18

Homelite 610618001

Sprocket
(Superseded to 985224001)

$

$

Not available

19

Homelite 308520001

Oil Pump Housing w/Cam Pin Assembly

$4.99

$

In Stock, only 1 left!

0

20

Homelite 308524001

Pinion Gear and Plunger Assembly

$2.99

$

Usually ships in 3-7 days

0

21

Homelite 308519001

Output Shaft Assembly
(Superseded to 985253001)

$83.99

$

In Stock, only 1 left!

0

22

Homelite 308514001

Pinion and Bearing Assembly
(Superseded to 985252001)

$48.99

$

In Stock, only 1 left!

0

23

Homelite 678284001

Lock Washer (5 mm)
(Superseded to 099078001031)

$

$

Not available

24

Homelite 660911001

Screw (M5 x 15 mm)

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 660935001

Screw (M5 x 25 mm)
(Superseded to 986158001)

$

$

Not available

26

Homelite 518019002

Hanger Cap
(Superseded to 518019004)

$1.99

$

In Stock, Qty 6

0

27

Homelite 308010016

Intermediate Boom Assembly

$

$

Not available

28

Homelite 940726013

Logo Label

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 940657030

Warning Label

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 120530014

Lower Drive Shaft Assembly

Note: (Inc. Key Nos. 28-29)

$

$

Not available

31

Homelite 308224001

Strap Hanger
(Superseded to 07255)

$

$

Not available

32

Homelite 518405001

Scabbard

$2.99

$

Usually ships in 3-7 days

0

33

Homelite 308487001

Shoulder Strap

$11.99

$

In Stock, only 1 left!

0

34

Homelite 631055001

Combination Wrench
(Superseded to 09207)

$12.99

$

Usually ships in 3-7 days

0

Homelite 991000570

Operator's Manual

Note: NOT SHOWN

$

$

Not available
