RY i911 LP (090930337) - Ryobi Digital Inverter Generator, Rev 05 (2018-10) Figure C Parts Diagram

Digital Inverter Generator, Rev 05

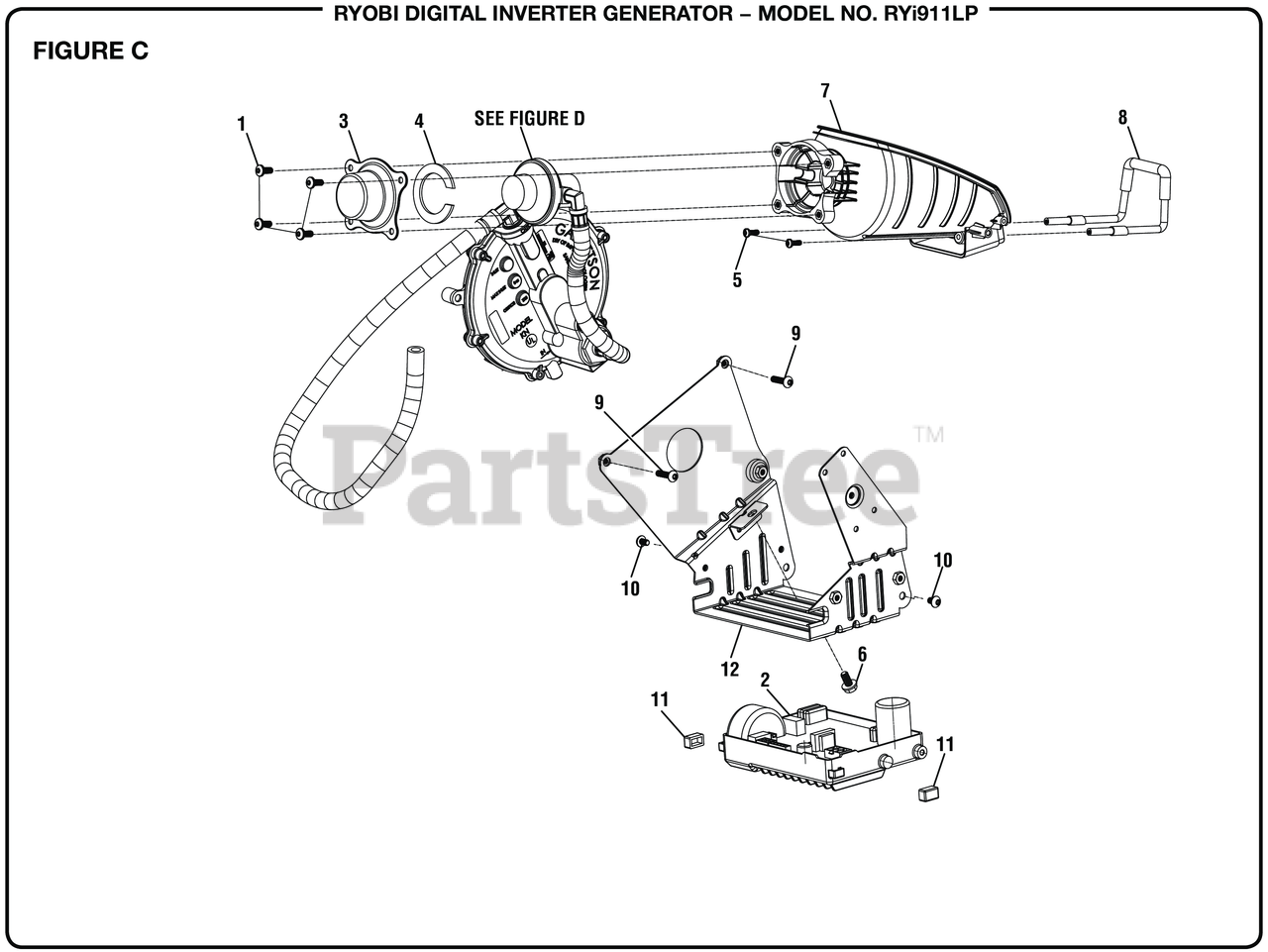

Figure C Parts Diagram

  • Title

1

Homelite 662770002

Screw (M5 x 12 mm, T-25 Torx Washer Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 290991024

Inverter Module (700W)

$342.99

$

Usually ships in 3-7 days

0

3

Homelite 638700049

Metal Cover

$

$

Not available

4

Homelite 564158010

Rubber Pad

$

$

Not available

5

Homelite 660345027

Screw (M4 x 12 mm, T-20 Torx Washer Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 660345024

Bolt (1/4 in. x 20-1/2 in., Flanged Hex Hd.)

$

$

Not available

7

Homelite 524003056

1LP Tank Assembly

$

$

Not available

8

Homelite 638701036

Metal Tube

$

$

Not available

9

Homelite 660345020

Screw (M5 x 22 mm, T-25 Torx Pan Hd.)

$

$

Not available

10

Homelite 661345002

Screw (M5 x 8 mm, T-25 Torx Pan Hd.)

$

$

Not available

11

Homelite 570356015

Rubber Support

$5.99

$

Usually ships in 3-7 days

0

12

Homelite 673678001

Bracket

$

$

Not available
