RY i911 LP (090930337) - Ryobi Digital Inverter Generator, Rev 04 (2018-06) Figure B Parts Diagram

Digital Inverter Generator, Rev 04

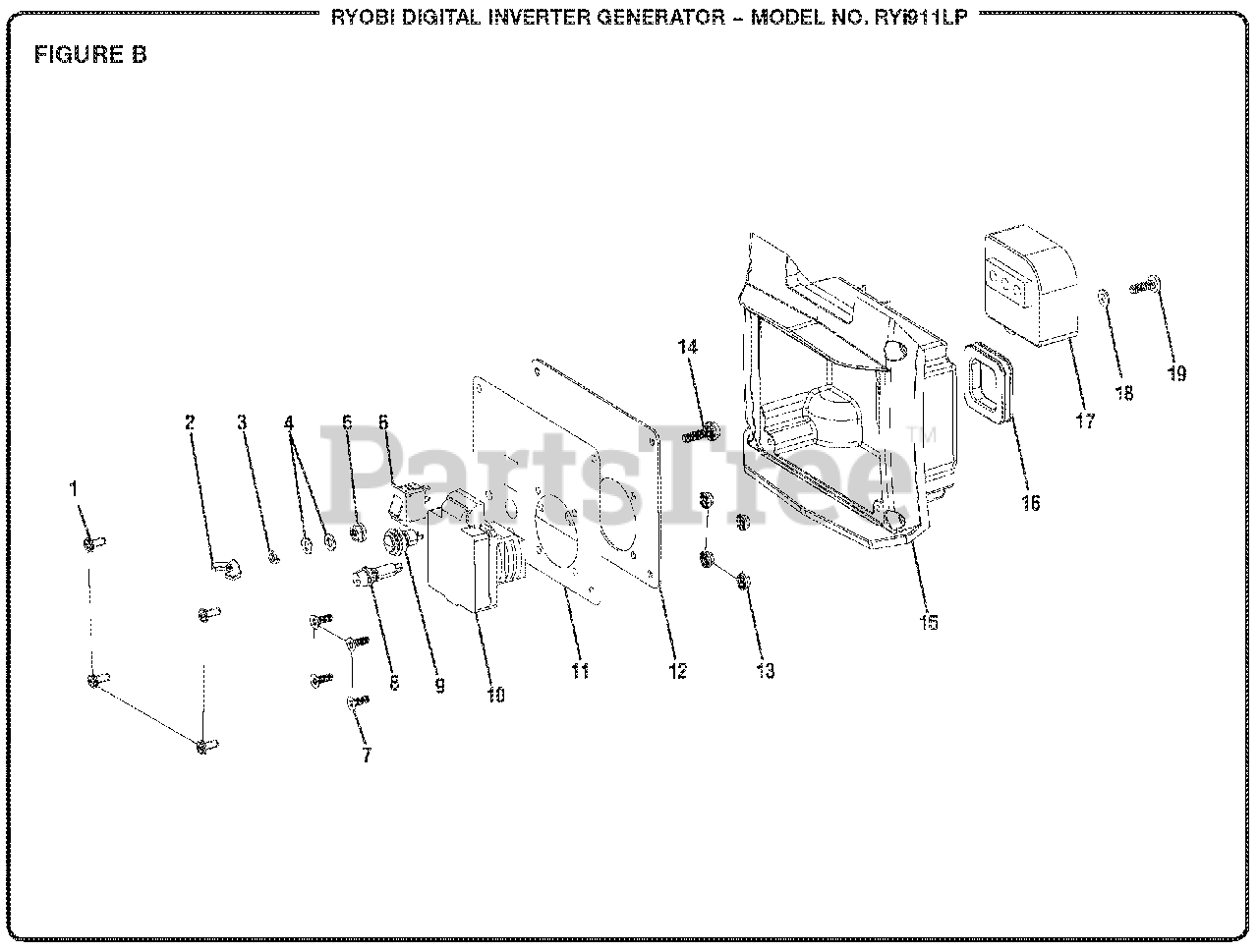

Figure B Parts Diagram

  • Title

1

Homelite 662653001

Screw (M4 x 13 mm, Flat Hd.)

$2.99

$

Usually ships in 3-7 days

0

2

Homelite 001030005000

Wingnut (M5)

$

$

Not available

3

Homelite 639799001

Washer (ID5 x OD8 x 1.4t)

$

$

Not available

4

Homelite 638128033

Washer (ID5.3 x OD10 x 1t)

$

$

Not available

5

Homelite 662652002

Lock Nut (M5)

$

$

Not available

6

Homelite 760700002

On/Off Switch
(Superseded to 760700001)

$4.49

$

In Stock, only 1 left!

0

7

Homelite 660345026

Screw (M4 x 10 mm, T-20 Torx Pan Hd.)

$

$

Not available

8

Homelite 291789001

Indicator (Red LED)

$

$

Not available

9

Homelite 760945005

Reset Button

$7.49

$

Usually ships in 3-7 days

0

10

Homelite 480101020040

120V-15A Single Receptacle

$

$

Not available

11

Homelite 940040051

Control Panel Label

$

$

Not available

12

Homelite 638700045

Control Panel Faceplate

$

$

Not available

13

Homelite 662652001

Lock Nut (M4)

$

$

Not available

14

Homelite 661345003

Screw (M5 x 18 mm, Flange Hex Hd.)

$

$

Not available

15

Homelite 524003022

Control Panel Housing

$

$

Not available

16

Homelite 564158004

Rubber Grommet

$

$

Not available

17

Homelite 462417016000

Ignition Module (700W)

$

$

Not available

18

Homelite 638128034

Washer (ID5.2 x OD10 x 1t)

$2.99

$

Usually ships in 3-7 days

0

19

Homelite 660345017

Screw (M5 x 16 mm, T-25 Torx Pan Hd.)

$

$

Not available

Homelite 469020020000

Unit Wire Harness

Note: Not Shown

$

$

Not available

Homelite 469017012500

AC Socket Wire Harness

$

$

Not available

Homelite 469017012650

Overload/Momentary Switch Wire Harness

$

$

Not available
