RY i4022 X (099930628) - Ryobi 4000 Watt Digital Inverter Generator, Rev 05 (2022-02) FIGURE D Parts Diagram

4000 Watt Digital Inverter Generator, Rev 05

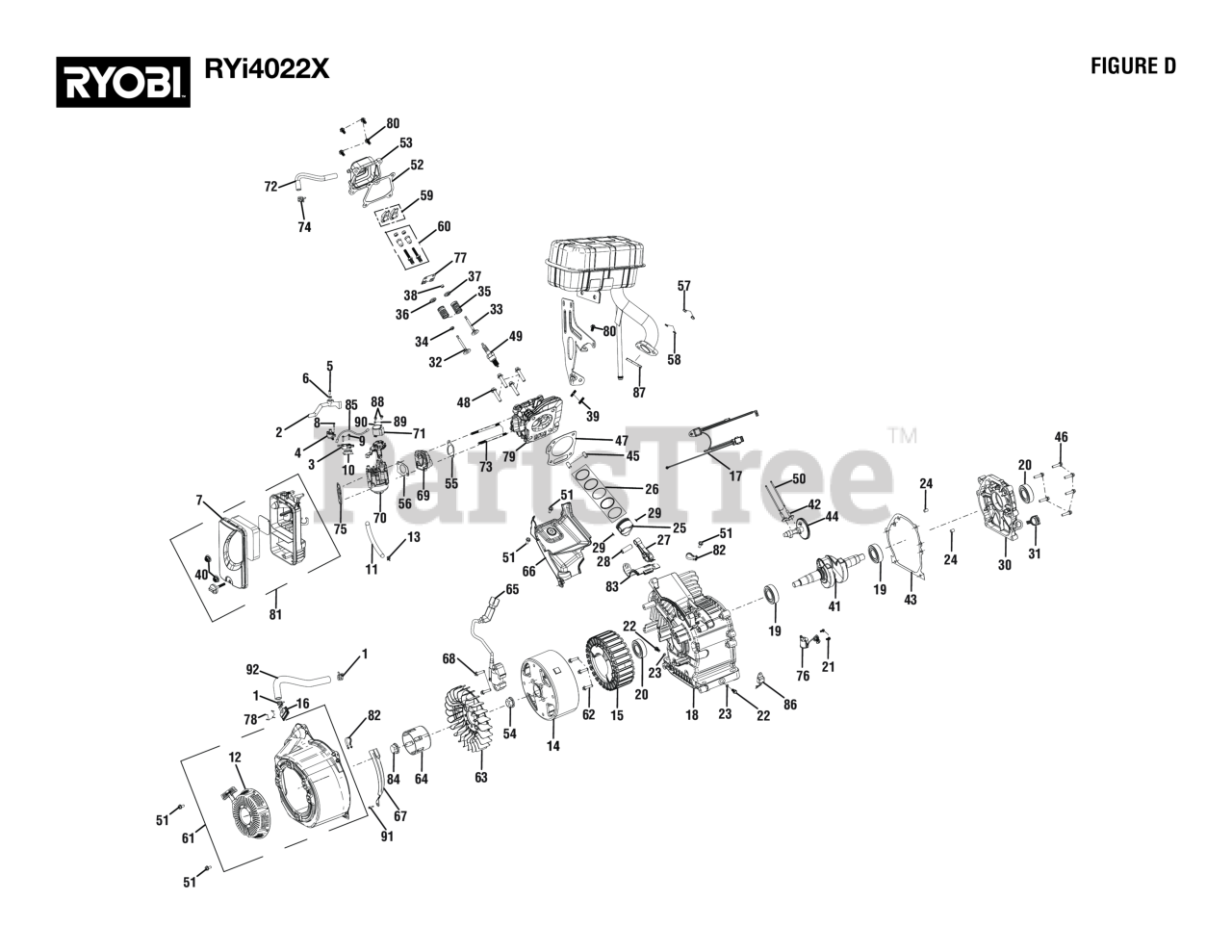

FIGURE D Parts Diagram

  • Title

1

Homelite 678409012

Fuel Hose Pinch Clamp

$3.49

$

Usually ships in 3-7 days

0

2

Homelite 525361004

Control Lever

$8.99

$

Usually ships in 3-7 days

0

3

Homelite 291443003

Enginge Stop Switch

$12.99

$

In Stock, only 1 left!

0

4

Homelite 678670007

Fuel Valve

$17.99

$

Usually ships in 3-7 days

0

5

Homelite 660465002

Screw (M4 x 10 mm, Phillips Pan Hd.)

$9.49

$

Usually ships in 3-7 days

0

6

Homelite 673156001

Washer (ID4.3 x OD10 x 0.9t)

$

$

Not available

7

Homelite 518248002

Engine Air Box Assembly

$39.99

$

In Stock, only 2 left!

0

8

Homelite 660972028

Screw (M6 x 10 mm, Pan Hd.)

$2.99

$

Usually ships in 3-7 days

0

9

Homelite 661864011

Screw (St 2.9 x 16 mm, Pan Hd)

$2.99

$

Usually ships in 3-7 days

0

10

Homelite 638970004

Engine Switch Bracket

$3.49

$

In Stock, Qty 5

0

11

Homelite 570358154

Fuel Hose (300 mm)

$12.99

$

Usually ships in 3-7 days

0

12

Homelite D247429-164A

Recoil Starter Assembly

$49.99

$

Usually ships in 3-7 days

0

13

Homelite 678409008

Fuel Line Clamp (3/8 in.)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 310771074

Rotor

$208.99

$

Usually ships in 3-7 days

0

15

Homelite 310772069

Stator

$162.99

$

Usually ships in 3-7 days

0

16

Homelite 678670015

Pair Valve

$30.99

$

Usually ships in 3-7 days

0

17

Homelite 290435073

Engine Shutdown Wire Harness

$17.99

$

Usually ships in 3-7 days

0

18

Homelite D240245

Crankcase

$150.99

$

Usually ships in 3-7 days

0

19

Homelite D93009

BALL BEARING

$4.99

$

Usually ships in 3-7 days

0

20

Homelite D93507

OIL SEAL

$4.49

$

In Stock, Qty 20+

0

21

Homelite D91329

Bolt (M6 x 16 mm)

$2.49

$

Usually ships in 3-7 days

0

22

Homelite D91816

BOLT, DRAIN PLUG

$2.99

$

Usually ships in 3-7 days

0

23

Homelite D94007

Drain Plug Washer

$1.99

$

Usually ships in 3-7 days

0

24

Homelite D240901

Casecover Dowel Pin

$2.49

$

Usually ships in 3-7 days

0

25

Homelite D241208

PISTON

$18.99

$

In Stock, only 1 left!

0

26

Homelite D241607

Piston Scraper Ring Set

$

$

Currently unavailable

27

Homelite D241503

ROD ASSEMBLY,CONNECTING

$10.99

$

Usually ships in 3-7 days

0

28

Homelite D245503

RING, PISTON

$13.99

$

Usually ships in 3-7 days

0

29

Homelite D241301

CLIP, PISTON

$2.49

$

Usually ships in 3-7 days

0

30

Homelite D240130

Crankcase Cover Assembly

$49.99

$

Usually ships in 3-7 days

0

31

Homelite D245601-313

Dipstick

$1.99

$

Usually ships in 3-7 days

0

32

Homelite D241704

VALVE, IN

$

$

Not available

33

Homelite D245904

VALVE, EXHAUST

$6.49

$

Usually ships in 3-7 days

0

34

Homelite D241806

RETURNER, INTAKE VALVE

$

$

Not available

35

Homelite D246001

VALVE, SPRING

$

$

Not available

36

Homelite D241801

SEAT, VALVE SPRING, IN

$2.99

$

Usually ships in 3-7 days

0

37

Homelite D241802

SEAT, VALVE SPRING, EX

$3.49

$

In Stock, only 1 left!

0

38

Homelite D241804

ROTATOR

$2.99

$

Usually ships in 3-7 days

0

39

Homelite D91007

Stud Bolt

$2.99

$

Usually ships in 3-7 days

0

40

Homelite D90016

Hex Nut (M6)

$2.49

$

Usually ships in 3-7 days

0

41

Homelite D248015

Crankshaft Assembly

$83.99

$

Usually ships in 3-7 days

0

42

Homelite D246102

LIFTER, VALVE

$3.49

$

In Stock, only 1 left!

0

43

Homelite D96041

PACKING, CASECOVER

$6.49

$

Usually ships in 3-7 days

0

44

Homelite D332006

Camshaft Assembly

$30.99

$

Usually ships in 3-7 days

0

45

Homelite D240905

PIN, DOWEL

$2.49

$

Usually ships in 3-7 days

0

46

Homelite D91347

Bolt (M8 x 30 mm)

$1.99

$

Usually ships in 3-7 days

0

47

Homelite D96058

GASKET, CYLINDER HEAD

$4.99

$

Usually ships in 3-7 days

0

48

Homelite D91359

Bolt (M8 x 60 mm)

$1.99

$

Usually ships in 3-7 days

0

49

Homelite D97108

Spark Pulg
(Superseded to DJ168F-18500-A)

$8.49

$

In Stock, only 2 left!

0

50

Homelite D241901

PUSH, ROD

$2.49

$

Usually ships in 3-7 days

0

51

Homelite D91325

Bolt (M6 x 12 mm)

$1.99

$

Usually ships in 3-7 days

0

52

Homelite D96256

Headcover Packing

$3.49

$

Usually ships in 3-7 days

0

53

Homelite D241119

Cylinder Head Cover

$11.99

$

Usually ships in 3-7 days

0

54

Homelite D90003

NUT

$2.49

$

Usually ships in 3-7 days

0

55

Homelite D96047

PACKING, INTAKE
(Superseded to DJ168F-14003)

$1.99

$

In Stock, only 4 left!

0

56

Homelite D96051

PACKING, CARBURETOR

$1.99

$

In Stock, only 3 left!

0

57

Homelite D90011

Hex Nut (M8)

$1.99

$

Usually ships in 3-7 days

0

58

Homelite D94206

Spring Washer

$1.99

$

Usually ships in 3-7 days

0

59

Homelite D242101

ROCKER ASSEMBLY

$2.99

$

Usually ships in 3-7 days

0

60

Homelite D91818

Rocker Arm Adujuster

$4.49

$

In Stock, only 2 left!

0

61

Homelite D247429-164A

Recoil Starter Assembly

$49.99

$

Usually ships in 3-7 days

0

62

Homelite D91312

Bolt (M6 x 45 mm)

$1.99

$

Usually ships in 3-7 days

0

63

Homelite D244602

Recoil StarterFan

$8.49

$

Usually ships in 3-7 days

0

64

Homelite D334502

Starter Pulley

$9.99

$

Usually ships in 3-7 days

0

65

Homelite D249813

Ignition Coil

$47.99

$

Usually ships in 3-7 days

0

66

Homelite D240520

Shroud

$10.99

$

Usually ships in 3-7 days

0

67

Homelite D240521

Shroud

$3.49

$

Usually ships in 3-7 days

0

68

Homelite D91334

Bolt (M6 x 30 mm)

$

$

Currently unavailable

69

Homelite D332301

Carburetor Insulator

$4.49

$

In Stock, only 1 left!

0

70

Homelite D247616

Carburetor Assembly

$51.99

$

Usually ships in 3-7 days

0

71

Homelite D359911

Stepper Motor

$23.99

$

Usually ships in 3-7 days

0

72

Homelite D95602

Breather Tube

$1.99

$

Usually ships in 3-7 days

0

73

Homelite D91029

Stud

$1.99

$

Usually ships in 3-7 days

0

74

Homelite D94412

Fuel Line Clip

$1.99

$

Usually ships in 3-7 days

0

75

Homelite D94226

SPACER, CARBURETOR

$2.49

$

Usually ships in 3-7 days

0

76

Homelite D245106

Oil Level Switch Assembly

$12.99

$

Usually ships in 3-7 days

0

77

Homelite D242202

PLATE, PUSH ROD GUIDE

$2.49

$

Usually ships in 3-7 days

0

78

Homelite D92032

Screw

$1.99

$

Usually ships in 3-7 days

0

79

Homelite D241028

Cylinder Head

$56.99

$

Usually ships in 3-7 days

0

80

Homelite D91969

Bolt (M6 x 16 mm)

$1.99

$

Usually ships in 3-7 days

0

81

Homelite D242932

Air Cleaner Assembly

$21.99

$

Usually ships in 3-7 days

0

82

Homelite D94447

Fuel Line Clamp

$2.99

$

Usually ships in 3-7 days

0

83

Homelite D240519

Shroud

$3.49

$

Usually ships in 3-7 days

0

84

Homelite D91864

Bolt

$6.49

$

In Stock, only 1 left!

0

85

Homelite D536418

Flameout Wire

$6.49

$

Usually ships in 3-7 days

0

86

Homelite D245116

Amplifier

$13.99

$

Usually ships in 3-7 days

0

87

Homelite D96255

Washer

$1.99

$

Usually ships in 3-7 days

0

88

Homelite D91805

Bolt (M3 x 8 mm)

$1.99

$

Usually ships in 3-7 days

0

89

Homelite D94203

Spring Washer

$1.99

$

Usually ships in 3-7 days

0

90

Homelite D94217

Flat Washer

$1.99

$

Usually ships in 3-7 days

0

91

Homelite D91330

Bolt (M6 x 20 mm)

$1.99

$

Usually ships in 3-7 days

0

92

Homelite 570358213

Pair Valve Hose

$9.49

$

Usually ships in 3-7 days

0

Homelite 120968052

High Altitude Kit

Note: Not Shown

$13.99

$

Usually ships in 3-7 days

0
