RY i4022 X (099930627) - Ryobi 4000 Watt Digital Inverter Generator, Rev 02 (2022-02) FIGURE E Parts Diagram

4000 Watt Digital Inverter Generator, Rev 02

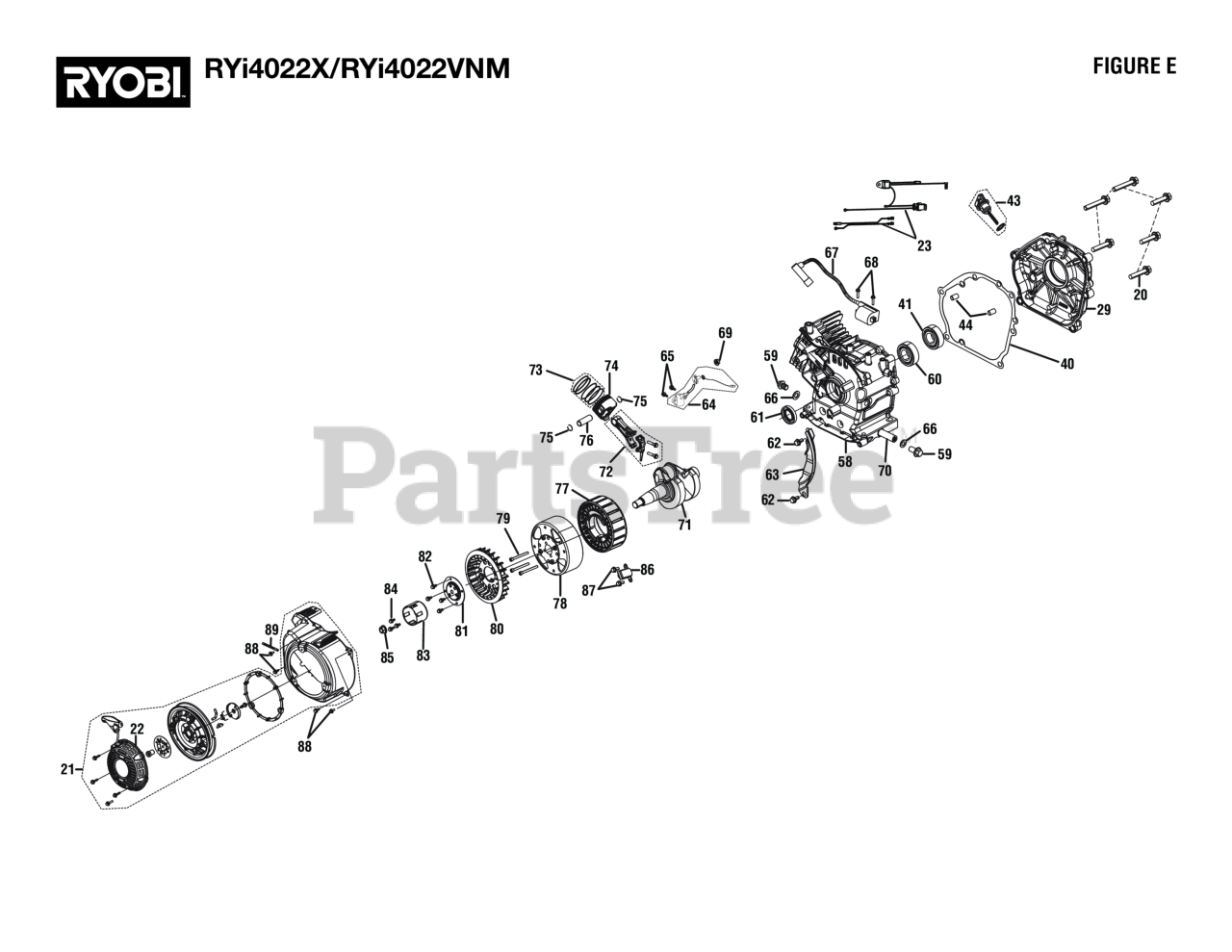

FIGURE E Parts Diagram

  • Title

20

Homelite 90001-0832-01

Bolt

$1.99

$

In Stock, only 1 left!

0

21

Homelite 28100-Z430910H6VAA

Recoil Starter Assembly

$102.99

$

Usually ships in 3-7 days

0

22

Homelite 282200-Z440610-H600

Engine Recoil Cover

$

$

Currently unavailable

23

Homelite 290435072

Ignition Wire Harness

$

$

Currently unavailable

29

Homelite 11411-Z430210-00A0

Crankcase Cover

$70.99

$

Usually ships in 3-7 days

0

40

Homelite 11001-Z440110-00A0

Crankcase Gasket

$9.49

$

In Stock, only 1 left!

0

41

Homelite 90547-0205-CL

Ball Bearing

$

$

Not available

43

Homelite 15010-Z010130-QG00

Oil Dipstick Assembly

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 90502-0912-00

Pin

$1.99

$

Usually ships in 3-7 days

0

58

Homelite 11310-Z430240-00A9

Crankcase Assembly

$263.99

$

Usually ships in 3-7 days

0

59

Homelite 11007-Z010110-0000

Drain Plug Bolt

$2.49

$

Usually ships in 3-7 days

0

60

Homelite 90548-0205-CLA0

Bearing

$15.99

$

Usually ships in 3-7 days

0

61

Homelite 90682-Z300110-00A0

Oil-Seal

$7.99

$

Usually ships in 3-7 days

0

62

Homelite 90001-0612-01

Bolt (need size)

Note: These part numbers are intentionally duplicated.

$2.49

$

Usually ships in 3-7 days

0

63

Homelite 19340-Z430110-0000

Lower Shield

$5.49

$

Usually ships in 3-7 days

0

64

Homelite 37060-Z010120-0000

Engine Oil Sensor

$12.99

$

Usually ships in 3-7 days

0

65

Homelite 90001-0614-01

Bolt

$2.49

$

Usually ships in 3-7 days

0

66

Homelite 90408-Z010510-0000

Washer

$1.99

$

Usually ships in 3-7 days

0

67

Homelite 30400-Z430210-0002

Ignition Coil

$47.99

$

Usually ships in 3-7 days

0

68

Homelite 90001-0520-01

Bolt

$2.49

$

Usually ships in 3-7 days

0

69

Homelite 90305-Z010210-0100

Nut

$1.99

$

Usually ships in 3-7 days

0

70

Homelite 11011-Z430120-0000

Oil Drain Tube

$10.99

$

Usually ships in 3-7 days

0

71

Homelite 13300-Z430310-0000

Crankshaft Assembly

$140.99

$

Usually ships in 3-7 days

0

72

Homelite 13010-Z440210-00A9

Connecting Rod

$

$

Not available

73

Homelite 13200-Z140210-00A9

Piston Ring Assembly

$17.99

$

Usually ships in 3-7 days

0

74

Homelite 13111-Z140220-0099

Piston Assembly

$21.99

$

In Stock, only 3 left!

0

75

Homelite 13122-Z010110-0000

Piston Pin Clip

$2.49

$

Usually ships in 3-7 days

0

76

Homelite 13121-Z010110-0000

Piston Pin

$5.99

$

Usually ships in 3-7 days

0

77

Homelite 310772070

Stator

$27.99

$

Usually ships in 3-7 days

0

78

Homelite 310771076

Rotor

$316.99

$

Usually ships in 3-7 days

0

79

Homelite 90102-0660-06

Bolt

$1.99

$

Usually ships in 3-7 days

0

80

Homelite 19352-Z150110-00A0

Impeller

$13.99

$

Usually ships in 3-7 days

0

81

Homelite 28020-Z150120-0000

Starter Cup Seat

$7.99

$

Usually ships in 3-7 days

0

82

Homelite 90001-0612-01

Bolt (need size)

Note: These part numbers are intentionally duplicated.

$2.49

$

Usually ships in 3-7 days

0

83

Homelite 28002-Z150110-0000

Starter Pulley

$9.99

$

Usually ships in 3-7 days

0

84

Homelite 90001-0610-01

Bolt

Note: These part numbers are intentionally duplicated.

$

$

Not available

85

Homelite 13501-Z010110-0000

Flywheel Nut

$2.49

$

Usually ships in 3-7 days

0

86

Homelite 30130-Z430310-0000

Trigger Assembly

$24.99

$

Usually ships in 3-7 days

0

87

Homelite 90001-0516-01

Bolt

$1.99

$

Usually ships in 3-7 days

0

88

Homelite 90001-0612-01

Bolt (need size)

Note: These part numbers are intentionally duplicated.

$2.49

$

Usually ships in 3-7 days

0

89

Homelite 90684-Z030120-0000

Clamp

$2.49

$

Usually ships in 3-7 days

0

Homelite 90408-0600-E1

Flat Washer

Note: Not Shown

$1.99

$

Usually ships in 3-7 days

0
