RY i4022 X (099930627) - Ryobi 4000 Watt Digital Inverter Generator, Rev 02 (2022-02) FIGURE D Parts Diagram

4000 Watt Digital Inverter Generator, Rev 02

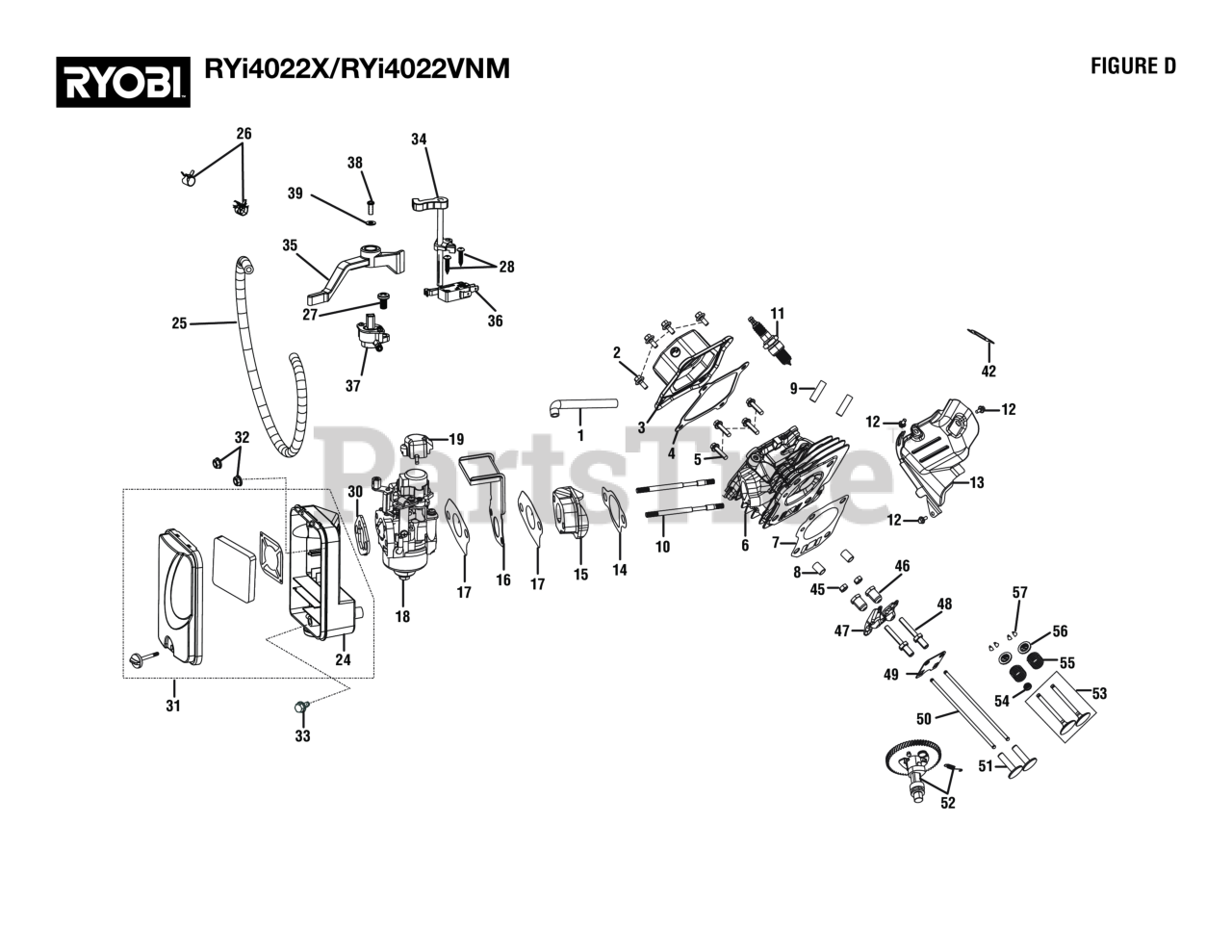

FIGURE D Parts Diagram

  • Title

1

Homelite 17004-Z430210-0000

Breather Tube

$2.49

$

In Stock, only 1 left!

0

2

Homelite 90001-0612-01

Bolt (need size)

Note: These part numbers are intentionally duplicated.

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 12410-Z440110-0099

Cylinder Head Cover Sub-assembly

$12.99

$

In Stock, only 2 left!

0

4

Homelite 12004-Z440110-00A0

Cylinder Head Cover Gasket

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 12003-Z010110-0000

Bolt (Cylinder Head)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 12140-Z810210-00A0

Cylinder Head Assembly

$82.99

$

Usually ships in 3-7 days

0

7

Homelite 12131-Z530320-0000

Cylinder Head Gasket

$7.49

$

In Stock, only 1 left!

0

8

Homelite 90502-1114-00

Pin

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 90203-Z010110-0000

Threaded Stud

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 90207-Z330210-0000

Threaded Stud

$2.99

$

Usually ships in 3-7 days

0

11

Homelite 30010-Z010110-0000

Spark Plug

$9.99

$

In Stock, only 1 left!

0

12

Homelite 90001-0610-01

Bolt

Note: These part numbers are intentionally duplicated.

$

$

Not available

13

Homelite 19304-Z430210-0000

Cylinder Body Shroud

$10.99

$

Usually ships in 3-7 days

0

14

Homelite 16002-Z010110-0000

Carburetor Insulator Gasket

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 16003-Z430110-0000

Carburetor Insulator Plate

$5.49

$

Usually ships in 3-7 days

0

16

Homelite 30053-Z430110-0000

Step Motor Heat Shield

$5.99

$

Usually ships in 3-7 days

0

17

Homelite 16001-Z010110-0000

Carburetor Gasket

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 16100-Z431010-0009

Carburetor Assembly

$114.99

$

Usually ships in 3-7 days

0

19

Homelite 14411-Y2V0110-0000

Cap

$

$

Currently unavailable

24

Homelite 518248009

Engine Air Box

$

$

Currently unavailable

25

Homelite 570358154

Fuel Hose (300 mm)

$12.99

$

Usually ships in 3-7 days

0

26

Homelite 678409008

Fuel Line Clamp (3/8 in.)

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 660972028

Screw (M6 x 10 mm, Pan Hd.)

$2.99

$

Usually ships in 3-7 days

0

28

Homelite 661864011

Screw (St 2.9 x 16 mm, Pan Hd)

$2.99

$

Usually ships in 3-7 days

0

30

Homelite 17001-Z010110-0000

Air Cleaner Gasket

$2.99

$

In Stock, Qty 5

0

31

Homelite 17100-Z301210-0099

Engine Air Box Assembly

$11.99

$

Usually ships in 3-7 days

0

32

Homelite 90305-0600-31

Governor Support Assembly

$2.49

$

Usually ships in 3-7 days

0

33

Homelite 90001-0625-01

Bolt

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 590458020

Choke Lever

$

$

Not available

35

Homelite 525361024

Control Lever

$

$

Currently unavailable

36

Homelite 270290030

Engine Stop Switch

$

$

Currently unavailable

37

Homelite 678670007

Fuel Valve

$17.99

$

Usually ships in 3-7 days

0

38

Homelite 660465002

Screw (M4 x 10 mm, Phillips Pan Hd.)

$9.49

$

Usually ships in 3-7 days

0

39

Homelite 673156001

Washer (ID4.3 x OD10 x 0.9t)

$

$

Not available

42

Homelite 18107-Z030110-0000

Air Valve Gasket

$

$

Not available

45

Homelite 14312-Z010110-0000

Valve Lock Nut

$2.49

$

Usually ships in 3-7 days

0

46

Homelite 14314-Z010110-0000

Valve Adjustment Nut

$3.49

$

Usually ships in 3-7 days

0

47

Homelite 14311-Z010110-0000

Valve Rocker

$2.49

$

Usually ships in 3-7 days

0

48

Homelite 14313-Z010110-0000

Valve Adjustment Bolt

$2.49

$

Usually ships in 3-7 days

0

49

Homelite 14090-Z010110-0000

Lifter Stopper Plate Sub-assembly

$2.99

$

Usually ships in 3-7 days

0

50

Homelite 14071-Z440110-0000

Valve Lifter

$3.49

$

In Stock, only 1 left!

0

51

Homelite 14081-Z040110-0000

Valve Tappet

$3.99

$

Usually ships in 3-7 days

0

52

Homelite 14200-Z530210-0099

Camshaft Assembly

$

$

Currently unavailable

53

Homelite 12110-Z810120-0099

Valve

$16.99

$

Usually ships in 3-7 days

0

54

Homelite 12101-Z810210-0000

Seal Guide

$

$

Not available

55

Homelite 12103-Z010110-0000

Valve Spring

$1.99

$

In Stock, only 4 left!

0

56

Homelite 12112-Z810210-0000

Valve Spring Seat

$37.99

$

Usually ships in 3-7 days

0

57

Homelite 12109-Z810110-0000

Valve Lock Clamp

$1.99

$

Usually ships in 3-7 days

0

Homelite 90408-0600-E1

Flat Washer

Note: Not Shown

$1.99

$

Usually ships in 3-7 days

0
