RY i3500 ES (090930321) - Ryobi Digital Inverter Generator, Rev 01 (2017-09) Figure A Parts Diagram

Digital Inverter Generator, Rev 01

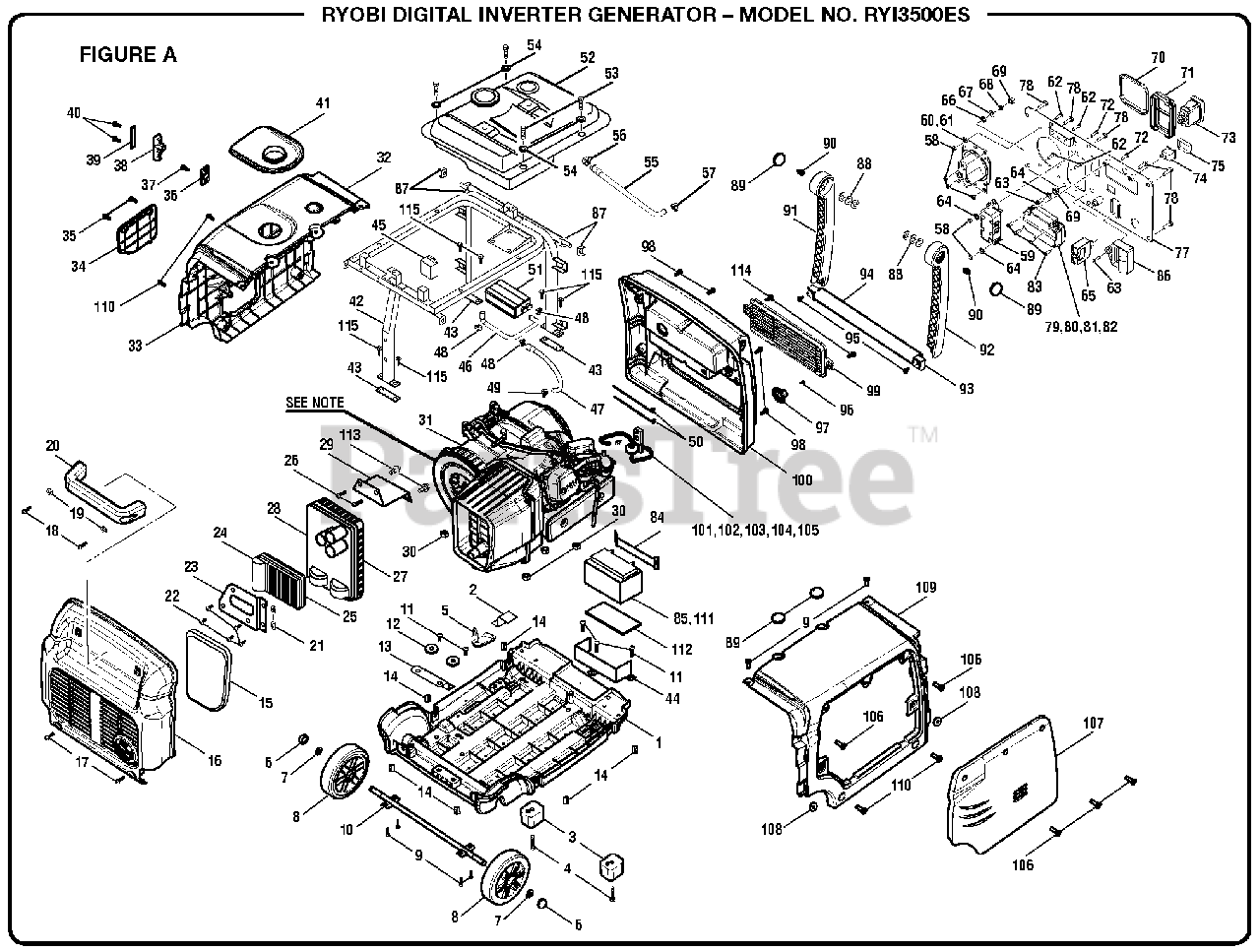

Figure A Parts Diagram

  • Title

1

Homelite 63013000200

Bottom Base

$

$

Not available

2

Homelite 63015000200

Stop Plate

$

$

Not available

3

Homelite 63014000200

Rubber Feet

$

$

Not available

4

Homelite 70300007500

Screw (M5 x 30 mm, Pan Hd.)

$

$

Not available

5

Homelite 63014000100

Oil Drain Plug

$

$

Not available

6

Homelite 70600003900

Clip (M12)

$

$

Not available

7

Homelite 70600004501

Washer (M12)

$

$

Currently unavailable

8

Homelite 63013000300

Wheel

$

$

Not available

9

Homelite 70300002300

Screw (M5 x 16 mm, Pan Hd.)

$

$

Not available

10

Homelite 63015000100

Wheel Axle

$

$

Not available

11

Homelite 70300003900

Screw (M5 x 12 mm, Pan Hd.)

$

$

Not available

12

Homelite 67014000700

Fuel Tank Isolator

$

$

Not available

13

Homelite 63015000300

Lower Bracket (Inverter Module)

$

$

Not available

14

Homelite 70200000501

Square Nut (M6)

$

$

Not available

15

Homelite 63014001000

Muffler Cover Strips

$

$

Not available

16

Homelite 63263000800

Rear Exhaust Housing

$

$

Not available

17

Homelite 70100001700

Flange Bolt (M6 x 20 mm)

$

$

Not available

18

Homelite 70300005900

Bolt (M6 x 35 mm, Hex. Soc. Hd.)

$

$

Not available

19

Homelite 70600001400

Washer

$

$

Not available

20

Homelite 63263001600

Rear Handle

$

$

Not available

21

Homelite 63015002000

Washer

$

$

Not available

22

Homelite 70100002900

Flange Bolt (M6 x 10 mm)

$

$

Not available

23

Homelite 63015001200

Start Module Bracket

$

$

Not available

24

Homelite 63186002600

Engine Start Module

$

$

Not available

25

Homelite 80033010394

Temperature Sensor

$

$

Not available

26

Homelite 70300007700

Screw (M6 x 25 mm, Pan Hd.)

$

$

Not available

27

Homelite 63022000300

Inverter Assembly (3.5Kw)

$

$

Not available

28

Homelite 63186002000

Inverter Grounding Harness

$

$

Not available

29

Homelite 63015001000

Inverter Module Bracket

$

$

Not available

30

Homelite 70200001700

Flange Nut (M8)

$

$

Not available

31

Engine, Ducar 212cc Inverter Elect. 2017

Note: Techtronic Industries Power Equipment, Inc., will not provide complete engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

32

Homelite 63263000200

Right Side Housing

$

$

Not available

33

Homelite 61017000300

Sponge (5 x 5)

$

$

Not available

34

Homelite 63263001200

Oil Maintenance Door

$

$

Not available

35

Homelite 70300000800

Screw (M5 x 16 mm)

$

$

Not available

36

Homelite 61013000200

Recoil Start Cover

$

$

Not available

37

Homelite 70300002500

Screw (M5 x 10 mm, Pan Hd.)

$

$

Not available

38

Homelite 61013000500

Recoil Handle

$

$

Not available

39

Homelite 61013000400

Recoil Handle Top Cover

$

$

Not available

40

Homelite 70300000100

Screw (M2.9 x 9.5 mm)

$

$

Not available

41

Homelite 63014000800

Fuel Overspill Guard

$

$

Not available

42

Homelite 63025000200

Chassis

$

$

Not available

43

Homelite 63015000800

Press Plate

$

$

Not available

44

Homelite 63055000100

Battery Tray

$

$

Not available

45

Homelite 63266000600

Main Internal Wiring

$

$

Not available

46

Homelite 63024000600

Fuel Tank Vent Hose

$

$

Not available

47

Homelite 63024000500

Canister Vapor Hose

$

$

Not available

48

Homelite 61015001600

Spring Clip (10.5)

$

$

Not available

49

Homelite 61015001400

Spring Clip (8)

$

$

Not available

50

Homelite 71200000401

Cable Ties

$

$

Not available

51

Homelite 63023000400

Carbon Canister Assembly

$

$

Not available

52

Homelite 63025001400

Fuel Tank

$

$

Not available

53

Homelite 70100004300

Flange Bolt (M6 x 25 mm)

$

$

Not available

54

Homelite 70600003100

Washer

$

$

Not available

55

Homelite 63024000700

Fuel Hose

$

$

Not available

56

Homelite 63265000400

Fuel Hose Clamp (10.5)

$

$

Not available

57

Homelite 62015001000

Fuel Hose Clamp (9.0)

$

$

Not available

58

Homelite 70200001000

Nut (M4)

$

$

Not available

59

Homelite 290400017

Duplex Receptacle (120 Volt 20 Amp)

$

$

Not available

60

Homelite 290400009

Receptacle (120V 30A)

$46.99

$

Usually ships in 3-7 days

0

61

Homelite 63266000500

Wiring Harness (AC Output)

$

$

Not available

62

Homelite 70300003200

Screw (M4 x 12 mm, Pan Hd.)

$

$

Not available

63

Homelite 70300001300

Screw (M4 x 10 mm, Pan Hd.)

$

$

Not available

64

Homelite 70600000900

Star Washer

$

$

Not available

65

Homelite 780350007

Circuit Breaker (20A)

$6.49

$

Usually ships in 3-7 days

0

66

Homelite 70600000600

Star Washer

$

$

Not available

67

Homelite 70600000500

Washer

$

$

Not available

68

Homelite 70600000800

Lock Washer

$

$

Not available

69

Homelite 70200000200

Nut (M5)

$

$

Not available

70

Homelite 570412013

Outlet Cover

$11.99

$

Usually ships in 3-7 days

0

71

Homelite 570412008

Rain Cover (120V Receptacle)

$12.99

$

Usually ships in 3-7 days

0

72

Homelite 70300001200

Screw (M4 x 10 mm, Pan Hd.)

$

$

Not available

73

Homelite 270290013

Engine Switch

$54.99

$

Usually ships in 3-7 days

0

74

Homelite 62486001200

Switch

$

$

Not available

75

Homelite 61013003400

Waterproof Cap

$

$

Not available

77

Homelite 63265000100

Electrical Faceplate

$

$

Not available

78

Homelite 70300002200

Screw (M5 x 12 mm, Pan Hd.)

$

$

Not available

79

Homelite 64013000800

Upper Cover Display Installation

$

$

Not available

80

Homelite 64013000900

Lower Cover Display Installation

$

$

Not available

81

Homelite 61076000700

Digitial Display

$

$

Not available

82

Homelite 64017002500

Soundproof Cotton, Display

$

$

Not available

83

Homelite 70300006400

Screw (M4 x 16 mm, Pan Hd.)

$

$

Currently unavailable

84

Homelite 63054000100

Battery Hold Down

$

$

Not available

85

Homelite 63186002200

Battery

$

$

Not available

86

Homelite 63016001400

Ignition Assembly

$

$

Not available

87

Homelite 70600004401

Saddle Washer (M12)

$

$

Not available

88

Homelite 70600004000

Washer

$

$

Not available

89

Homelite 63014000900

Rubber Plug

$

$

Not available

90

Homelite 70200000300

Flange Nut (M6)

$

$

Not available

91

Homelite 63263001300

Right Front Handle

$

$

Not available

92

Homelite 63263001400

Left Front Handle

$

$

Not available

93

Homelite 63263001500

Front Handle Pull Bar

$

$

Not available

94

Homelite 63014001200

Recoil Handle Rubber

$

$

Not available

95

Homelite 70100000200

Bolt Flange (M6 x 12 mm)

$

$

Not available

96

Homelite 70300002100

Screw (M4 x 16 mm, Pan Hd.)

$

$

Not available

97

Homelite 61013002200

Fuel Valve Control Knob

$

$

Not available

98

Homelite 70100001700

Flange Bolt (M6 x 20 mm)

$

$

Not available

99

Homelite 63263001800

Battery Maintenance Cover

$

$

Not available

100

Homelite 63263000600

Front Housing

$

$

Not available

101

Homelite 64015000700

Fuel Cock

$

$

Not available

102

Homelite 63024000800

Fuel Hose Fuel Valve

$

$

Not available

103

Homelite 308733008

Fuel Filter Inline (1/4 in.)

$7.49

$

In Stock, only 4 left!

0

104

Homelite 63024000300

Fule Filter Fuel Hose

$

$

Not available

105

Homelite 63265000300

Fuel Hose Clamp (8.0)

$

$

Not available

106

Homelite 70100002000

Flange Bolts (M6 x 16 mm)

$

$

Not available

107

Homelite 63263001000

Air Cleaner Maintenance Cover

$

$

Not available

108

Homelite 62014001300

Rubber Grommet

$

$

Not available

109

Homelite 63263000400

Left Side Housing

$

$

Not available

110

Homelite 70100003000

Flange Bolt (M6 x 16 mm)

$

$

Not available

111

Homelite 63186003200

Battery Wire Harness

$

$

Currently unavailable

112

Homelite 64014000700

Rubber Battery Pad

$

$

Not available

113

Screw

$

$

Not available

114

Screw

$

$

Not available

115

Screw

$

$

Not available

Homelite DJ5265

Spark Arrestor

Note: Not Shown

$

$

Not available

Homelite 120968045

High Altitude Kit (Ducar 212cc) (2000-7000 ft., Not Included)

$12.99

$

Usually ships in 3-7 days

0

Homelite 995000173

Operator's Manual

$

$

Not available

Homelite 995000174

Quick Start Guide

$1.99

$

Usually ships in 3-7 days

0
