RY i2300 BTA (090930330) - Ryobi Digital Inverter Generator, Rev 01 (2017-07) Figure C Parts Diagram

Digital Inverter Generator, Rev 01

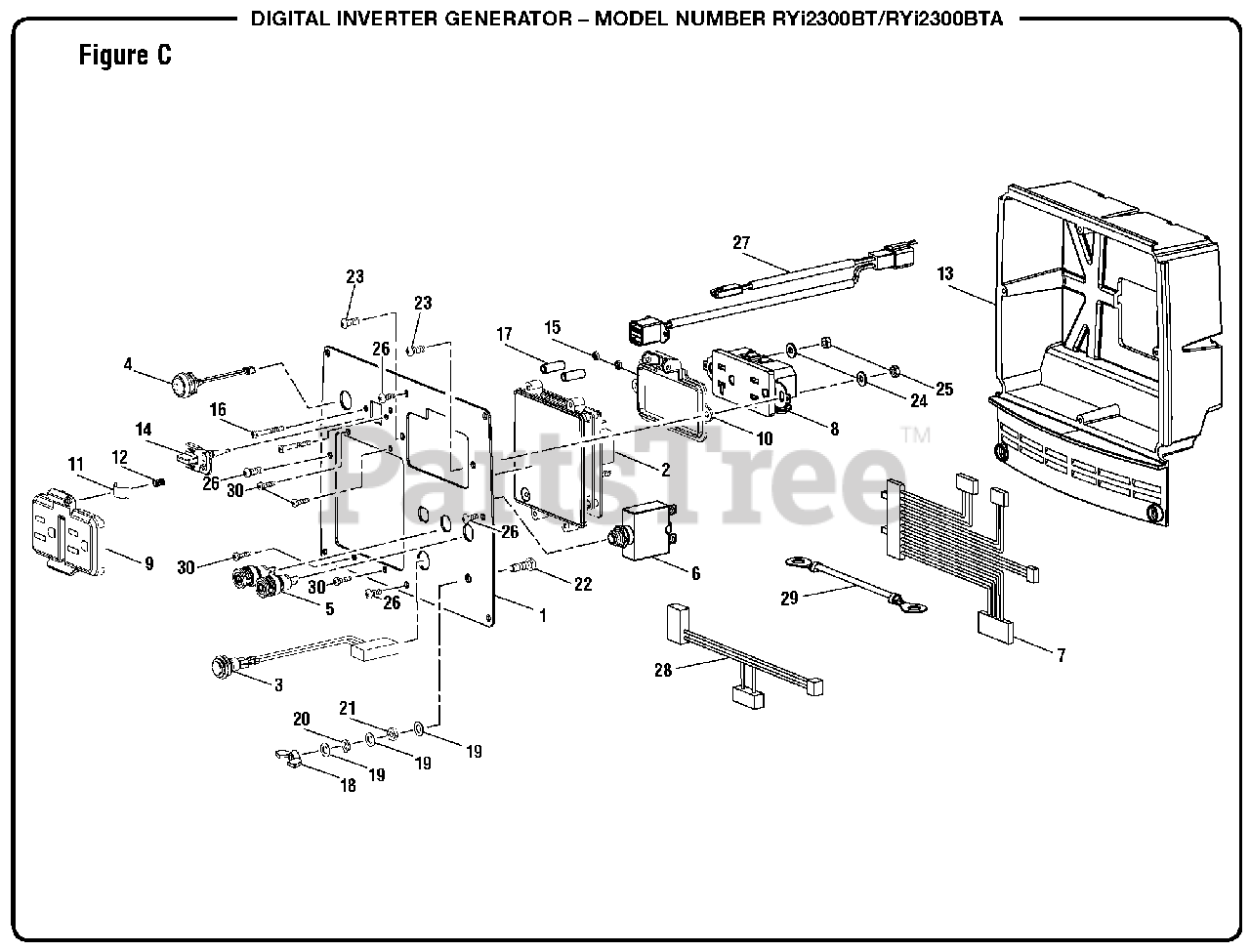

Figure C Parts Diagram

  • Title
1

Homelite 638700039

Faceplate

$16.99

$

Usually ships in 3-7 days

0

2

Homelite 290432012

GENControl(TM) Display Assembly

$

$

Not available

3

Homelite 760945003

Overload Reset Button

$6.49

$

Usually ships in 3-7 days

0

4

Homelite 760945004

Auto Idle Button

$3.99

$

Usually ships in 3-7 days

0

5

Homelite 870932002

Connector (Black)

$4.99

$

Usually ships in 3-7 days

0

6

Homelite 780350007

Circuit Breaker (20A)

$6.49

$

Usually ships in 3-7 days

0

7

Homelite 290514014

Wire Harness (GENControl(TM) Display)

$5.49

$

Usually ships in 3-7 days

0

8

Homelite 290400017

120 Volt Duplex Receptacle (20 Amp)

$

$

Not available

9

Homelite 570412014

Movable Outlet Cover

$2.99

$

Usually ships in 3-7 days

0

10

Homelite 570412015

Fixed Outlet Cover

$

$

Not available

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 679449001

Compression Spring

$

$

Not available

13

Homelite 519707014

Electrical Panel Housing

$19.99

$

Usually ships in 3-7 days

0

14

Homelite 563684002

Dual USB Cover

$2.99

$

Usually ships in 3-7 days

0

15

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 662111001

Screw (M3)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 662112001

Spacer (17.2 mm)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 678016009

Wing Nut (M5)

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 638623005

Washer (ID5.3 x OD10 x 0.5t)

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 678343003

Lock Washer (ID5 x OD9 x 1.3t)

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 678016008

Hex Nut (M5)

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 660976002

Bolt (M5 x 16 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 660345025

Bolt (M4 x 10 mm, T15 Torx Drive Hd.)

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 690969002

Flat Washer (ID4.2 x OD10)
(Superseded to 690969001)

$1.99

$

In Stock, Qty 5

0

25

Homelite 661514002

Hex Nut (M4)

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 660901004

Screw (#6-20 x 3/8 in., T15 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 290435037

Regulator Wire Harness w/ USB Ports

$5.99

$

Usually ships in 3-7 days

0

28

Homelite 290514013

Internal Wire Assembly

$6.99

$

Usually ships in 3-7 days

0

29

Homelite 290404011

Ground Wire

$2.49

$

Usually ships in 3-7 days

0

30

Homelite 660975016

Screw (M3.1 x 10 mm, Torx Hd.)

$2.49

$

Usually ships in 3-7 days

0
