RY i2200 H (090930218) - Ryobi Digital Inverter Generator Figure D Parts Diagram

Digital Inverter Generator

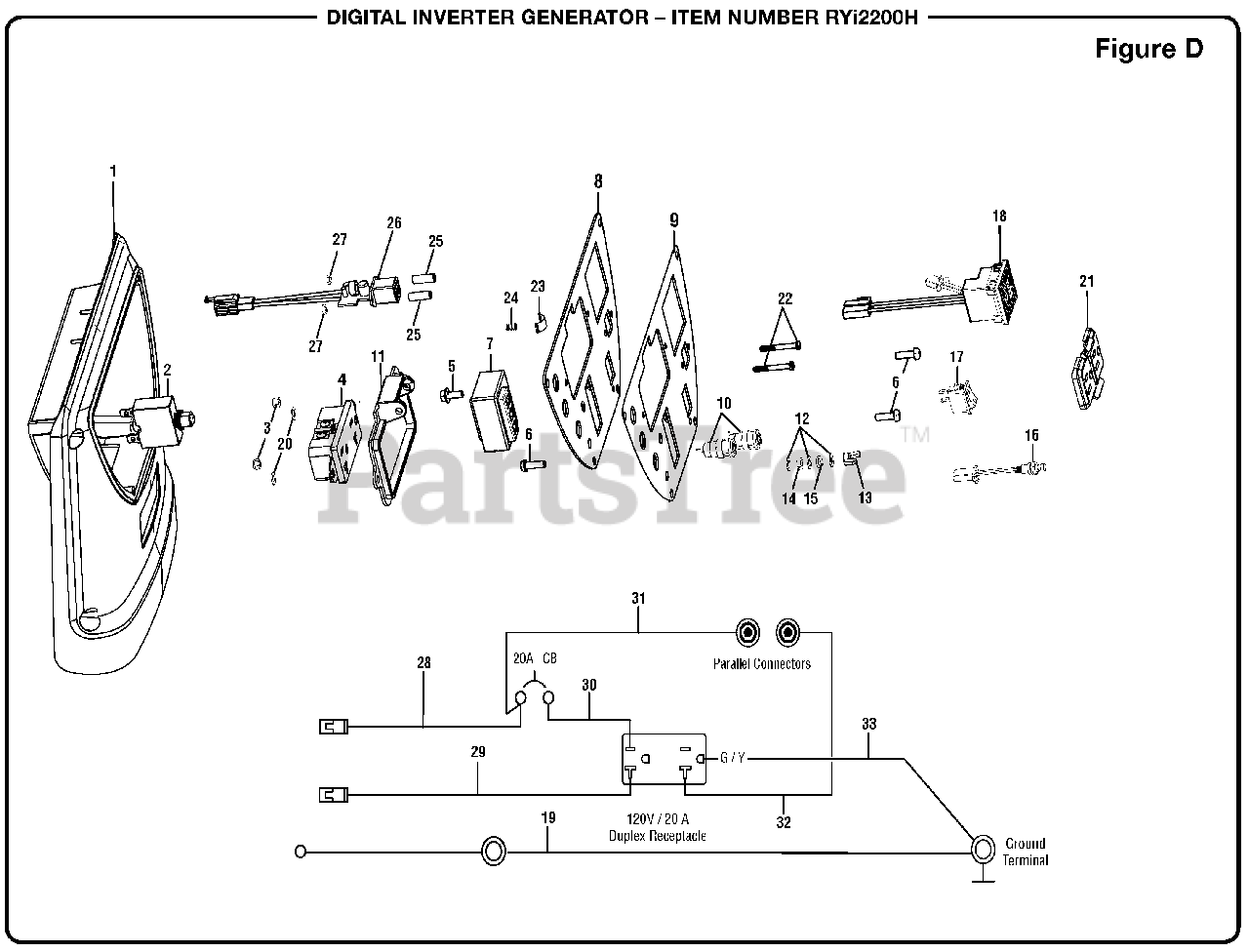

Figure D Parts Diagram

  • Title

1

Homelite 518728002

Front Cover w/Labels & Foam
(Superseded to 518728005)

$

$

Not available

2

Homelite 780350007

Circuit Breaker (20A)

$6.49

$

Usually ships in 3-7 days

0

3

Homelite 661514002

Hex Nut (M4)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 290400017

120 Volt Duplex Receptacle (20 Amp)

$

$

Not available

5

Homelite 661345009

Screw (M5 x 12 mm, Flange Hd)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 660976002

Bolt (M5 x 16 mm, Pan Hd)

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 850201002

Ignition Module

$

$

Not available

8

Homelite 638700032

Control Panel

$7.99

$

Usually ships in 3-7 days

0

9

Homelite 940040046

Front Panel Label

$3.49

$

Usually ships in 3-7 days

0

10

Homelite 870932002

Connector (Black)

$4.99

$

Usually ships in 3-7 days

0

11

Homelite 570412011

Receptacle Cover (Back)

$2.99

$

Usually ships in 3-7 days

0

12

Homelite 638623005

Flat Washer (OD10 x ID53 x 05t)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 678016009

Wing Nut (M5)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 678016008

Hex Nut (M5)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 678343003

Lock Washer (OD9 x ID5 x 13t)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 760945001

Reset Button

$

$

Not available

17

Homelite 760504016

Auto Idle Switch

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 290400021

12V DC Receptacle

$14.99

$

Usually ships in 3-7 days

0

19

Homelite 290360009

Wire Lead (14AWG-220 mm, Yellow-Green)

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 690969002

Flat Washer (OD10 x 42 x 1t)
(Superseded to 690969001)

$1.99

$

In Stock, Qty 5

0

21

Homelite 570412010

Receptacle Cover (Front)

$

$

Not available

22

Homelite 662111001

Screw (M3 x 25 mm, Phillips Pan Hd )

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 570412012

Clip

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 679449001

Spring

$

$

Not available

25

Homelite 662112001

Spacer (172 mm)

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 870267001

Circuit Board (USB PORT CHARGER)

$22.99

$

Usually ships in 3-7 days

0

27

Homelite 673288001

Nut (M3)

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 290360002

Wire Lead (14 AWG-220 mm)

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 290360003

Wire Lead (14 AWG-220 mm w/Dj441-4B)

$2.49

$

Usually ships in 3-7 days

0

30

Homelite 290360005

Wire Lead (14 AWG-110 mm w/Dj441-4B)

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 290360006

Wire Lead (14AWG-80 mm)

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 290360007

Wire Lead (14AWG-110 mm W/Dj622-D6-3B)

$2.49

$

Usually ships in 3-7 days

0

33

Homelite 290360008

Wire Lead (14AWG-120 mm)

$2.49

$

Usually ships in 3-7 days

0
