RY i2200 GRA (090930338) - Ryobi Digital Inverter Generator, Rev 02 (2018-03) Figure A Parts Diagram

Digital Inverter Generator, Rev 02

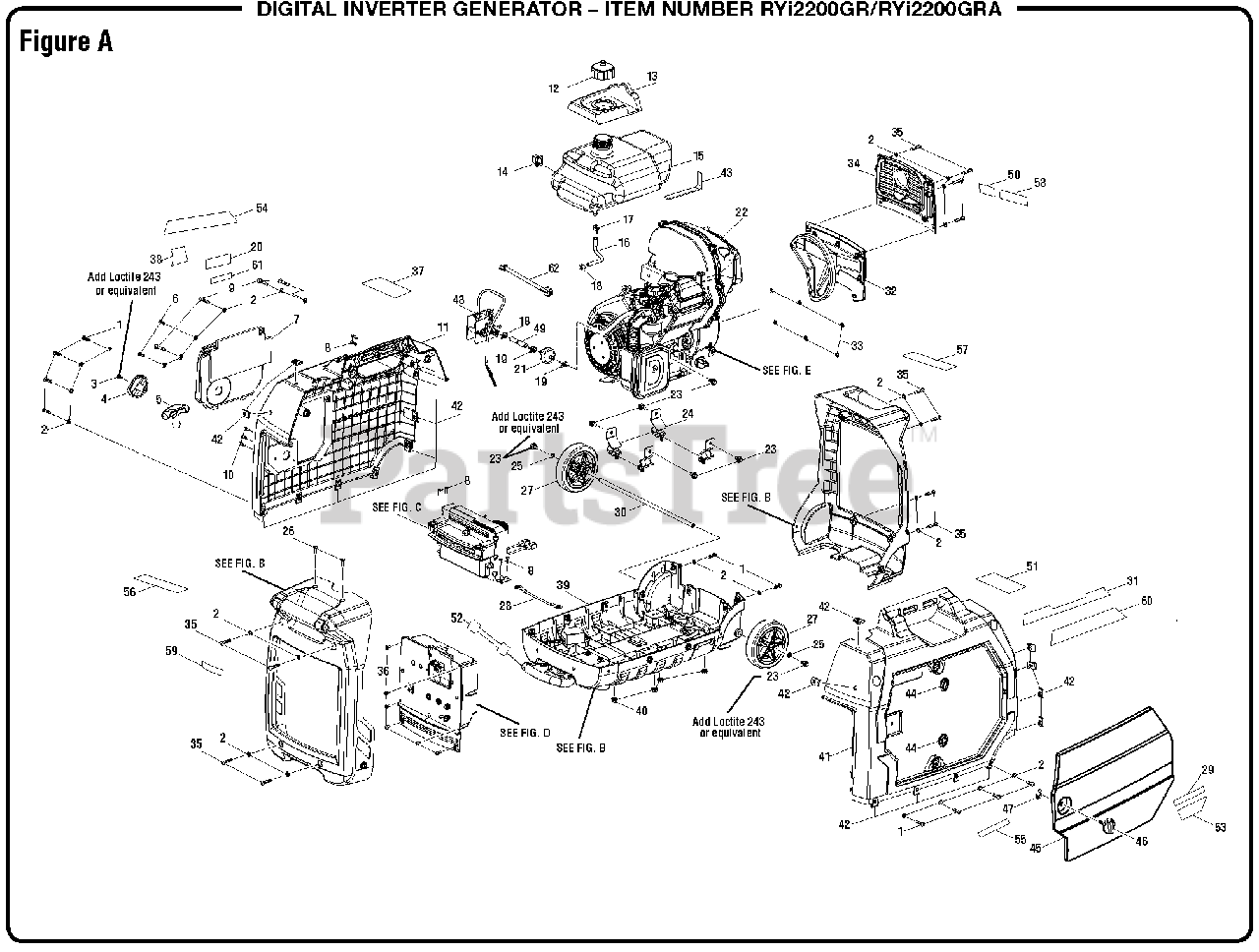

Figure A Parts Diagram

  • Title

1

Homelite 660764010

Screw (M5 x 20 mm, Button Soc. Hd.)

$1.99

$

In Stock, Qty 5

0

2

Homelite 638128014

Washer (M5.3)

$

$

Not available

3

Homelite 661346001

Screw (M4 x 10 mm)

$1.66

$

Usually ships in 3-7 days

0

4

Homelite 525361008

Control Knob

$1.99

$

In Stock, only 4 left!

0

5

Homelite 524015004

Recoil Handle

$4.99

$

Usually ships in 3-7 days

0

6

Homelite 660764007

Screw (M5 x 12 mm, Button Soc. Hd.)

$1.99

$

In Stock, only 1 left!

0

7

Homelite 525297005

Starter Cover Assembly

$

$

Not available

8

Homelite 660345015

Screw (M4 x 12 mm, T15 Torx Hd.)

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 660345018

Screw (M5 x 30 mm, Phillips Hd.)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 661864012

Screw (M4 x 16 mm, Flat Hd.)

$

$

Not available

11

Homelite 524001012

Left Housing Assembly

Note: (Incl. Key No. 42)

$14.99

$

Usually ships in 3-7 days

0

12

Homelite 519709007

Vented Fuel Cap

$

$

Not available

13

Homelite 570818005

Overspill Guard

$12.99

$

Usually ships in 3-7 days

0

14

Homelite 570356010

Fuel Tank Support

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 310711196

Fuel System Assembly

Note: (Incl. Key Nos. 14 and 16 - 18)

$

$

Currently unavailable

16

Homelite 570358170

Fuel Hose (6mm and 4.5 mm)

$6.99

$

Usually ships in 3-7 days

0

17

Homelite 678815015

Clamp (10 mm)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 678409008

Fuel Hose Clamp (3/8 in.)

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 678815010

Fuel Hose Clamp (9.5 mm)

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 941008042

Easy Start Logo Label

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 308733008

Fuel Filter

$7.49

$

In Stock, only 4 left!

0

22

Engine (Ducar) (See Figure E)

Note: Techtronic Industries, Inc., will not provide complete engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

23

Homelite 660975004

Bolt (M6 x 12 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 679940011

Engine Isolator (45 Degree)

$5.99

$

In Stock, only 1 left!

0

25

Homelite 678012001

Lock Washer
(Superseded to 83009)

$8.49

$

Usually ships in 3-7 days

0

26

Homelite 660764012

Screw (M5 x 16 mm, Flat Hd.)

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 310223008

Wheel

$10.99

$

In Stock, only 4 left!

0

28

Homelite 290404012

Ground Wire

$

$

Not available

29

Homelite 941486008

Inquiries Label

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 620599031

Axle

$7.99

$

Usually ships in 3-7 days

0

31

Homelite 940974020

Fire Distance Label

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 524012018

Lower Exhaust Panel Assembly

Note: (Incl. Key No. 33)

$

$

Not available

33

Homelite 638704006

Washer (5 mm)

$2.99

$

Usually ships in 3-7 days

0

34

Homelite 524012016

Upper Exhaust Panel Assembly

Note: (Incl. Key No. 35)

$33.99

$

Usually ships in 3-7 days

0

35

Homelite 660764011

Screw (M5 x 25 mm, Button Soc. Hd.)

$1.99

$

In Stock, Qty 10

0

36

Homelite 660345009

Screw w/Washer (M4 x 10 mm, T20 Torx Hd.)

$1.99

$

Usually ships in 3-7 days

0

37

Homelite 940654323

Danger Label

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 940647139

Choke Label

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 525529003

Bottom Base Assembly

Note: (Incl. Key Nos. 1-2, 23 and 25; See Figure B)

$

$

Not available

40

Homelite 678774019

Lock Nut (M6)

$1.99

$

Usually ships in 3-7 days

0

41

Homelite 524003012

Right Housing Assembly

Note: (Incl. Key Nos. 42-43)

$15.99

$

Usually ships in 3-7 days

0

42

Homelite 678900014

U-Clip (M5)

$

$

Not available

43

Homelite 560878004

Rubber Pad

$

$

Not available

44

Homelite 570766011

Grommet

$2.49

$

Usually ships in 3-7 days

0

45

Homelite 523430013

Maintenance Cover Assembly

Note: (Incl. Key Nos. 46-47)

$

$

Not available

46

Homelite 525361014

Lock Knob

$

$

Not available

47

Homelite 638623008

Retaining Ring

$2.99

$

Usually ships in 3-7 days

0

48

Homelite 310437021

Engine Start/Stop Mechanism Assembly

$58.99

$

Usually ships in 3-7 days

0

49

Homelite 570358171

Fuel Hose (4.5 mm and 6 mm)

$2.99

$

In Stock, Qty 7

0

50

Homelite 940947025

Combustion Label

$1.99

$

Usually ships in 3-7 days

0

51

Homelite 940515017

CPSC Label

$2.99

$

Usually ships in 3-7 days

0

52

Homelite 940758016

Handle Release Label

$1.99

$

Usually ships in 3-7 days

0

53

Homelite 940708028

Lubricant Label

$1.99

$

Usually ships in 3-7 days

0

54

Homelite 940779200

Performance Label

$3.99

$

Usually ships in 3-7 days

0

55

Homelite 940911003

Maintenance Label
(Superseded to 940911013)

$1.49

$

Usually ships in 3-7 days

0

56

Homelite 940782004

Fuel Stabilizer Label

$1.99

$

Usually ships in 3-7 days

0

57

Homelite 940513030

Ground Warning Label (English/French)

$1.99

$

Usually ships in 3-7 days

0

58

Homelite 940680086

Hot Surface Label

$1.99

$

Usually ships in 3-7 days

0

59

Homelite 940705362

Logo Label

$1.99

$

Usually ships in 3-7 days

0

60

Homelite 940779199

Performance Label (Maintenance Door)

$2.99

$

Usually ships in 3-7 days

0

61

Homelite 940617178

Start Label

$1.99

$

Usually ships in 3-7 days

0

62

Homelite 290514016

Engine Wire Harnes

$4.49

$

Usually ships in 3-7 days

0

Homelite 120694001

Accessory Kit

Note: Not Shown

$4.99

$

Usually ships in 3-7 days

0

Homelite 995000505

Operator's Manual

$

$

Not available
