RY i2200 G (100930237) - Ryobi Digital Inverter Generator Figure C Parts Diagram

Digital Inverter Generator

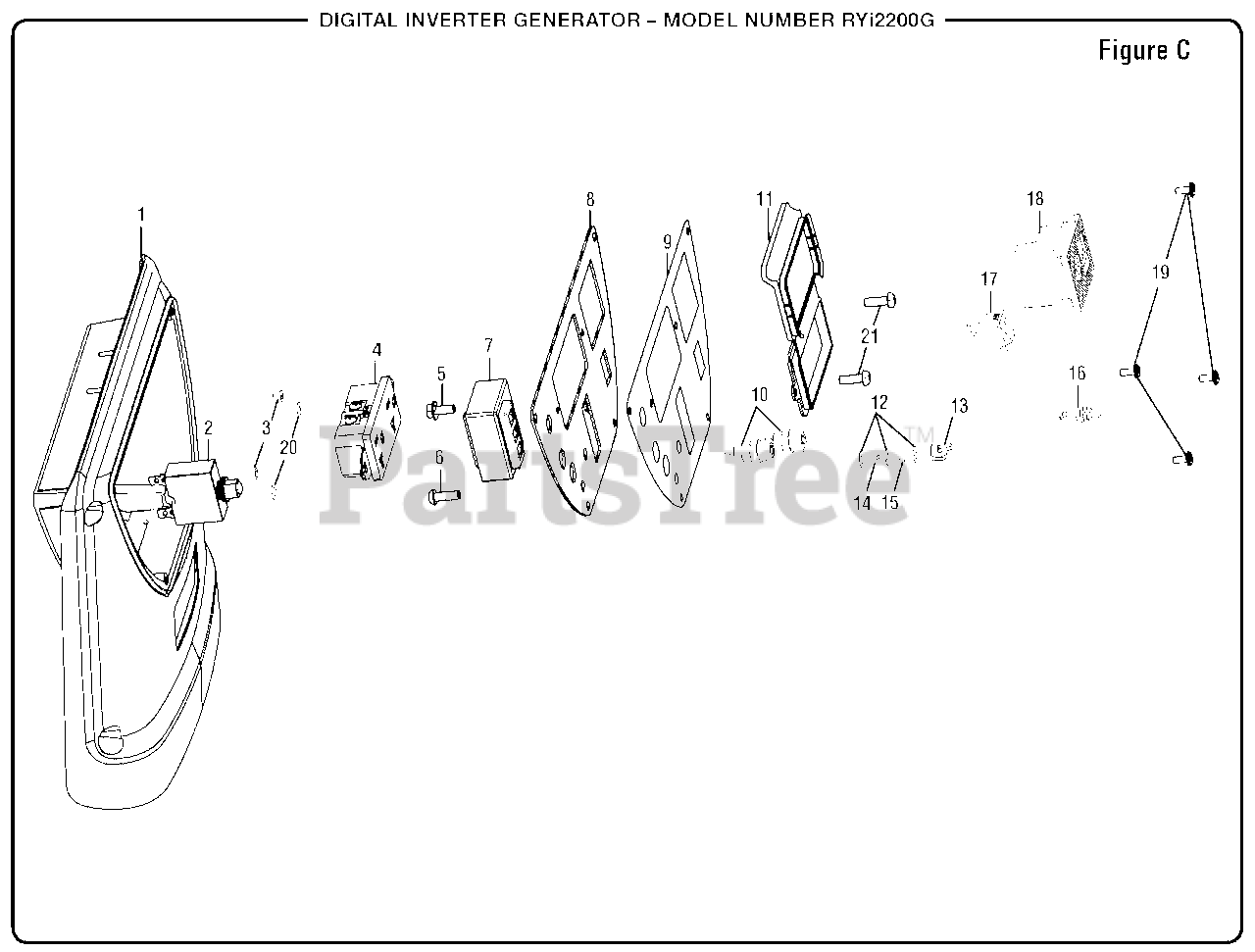

Figure C Parts Diagram

  • Title

1

Homelite 518728002

Front Cover
(Superseded to 518728005)

$

$

Not available

2

Homelite 780350001

Circuit Breaker (20 Amp)

$

$

Not available

3

Homelite 661514002

Flange Nut (M4)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 290400017

120 Volt Duplex Receptacle

$

$

Not available

5

Homelite 661345009

Bolt (#10 x 12 mm, Flanged Hd.)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 660976002

Screw (M5 x 16 mm, Phillips Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 850201002

Ignition Module

$

$

Not available

8

Homelite 638700022

Control Panel

$8.49

$

Usually ships in 3-7 days

0

9

Homelite 940040035

Front Panel Label

$5.49

$

In Stock, only 1 left!

0

10

Homelite 870932002

Connector

$4.99

$

Usually ships in 3-7 days

0

11

Homelite 570412003

120 Volt Outlet Cover

$4.99

$

Usually ships in 3-7 days

0

12

Homelite 638623005

Washer (M5 x 10 mm x 0.5t)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 678016009

Wing Nut (M5)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 678016008

Hex Nut (M5)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 678343001

Lock Washer (OD9 x ID5 x 1.3t)
(Superseded to 099069001005)

$2.99

$

Usually ships in 3-7 days

0

16

Homelite 760945001

Reset Button

$

$

Not available

17

Homelite 760504009

Intelligent Switch

$2.99

$

In Stock, Qty 5

0

18

Homelite 290400019

Receptacle DC

$

$

Not available

19

Homelite 660345009

Screw w/Washer (M4 x 10 mm, T20 Torx Button Hd.)

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 638623006

Washer (OD8 x ID4.3 x 0.5t)

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 660465002

Screw (M4 x 10 mm, Phillips Pan Hd.)

$9.49

$

Usually ships in 3-7 days

0
