RY i2200 A (090930296) - Ryobi Digital Inverter Generator, Rev 02 (2016-11) Figure A Parts Diagram

Digital Inverter Generator, Rev 02

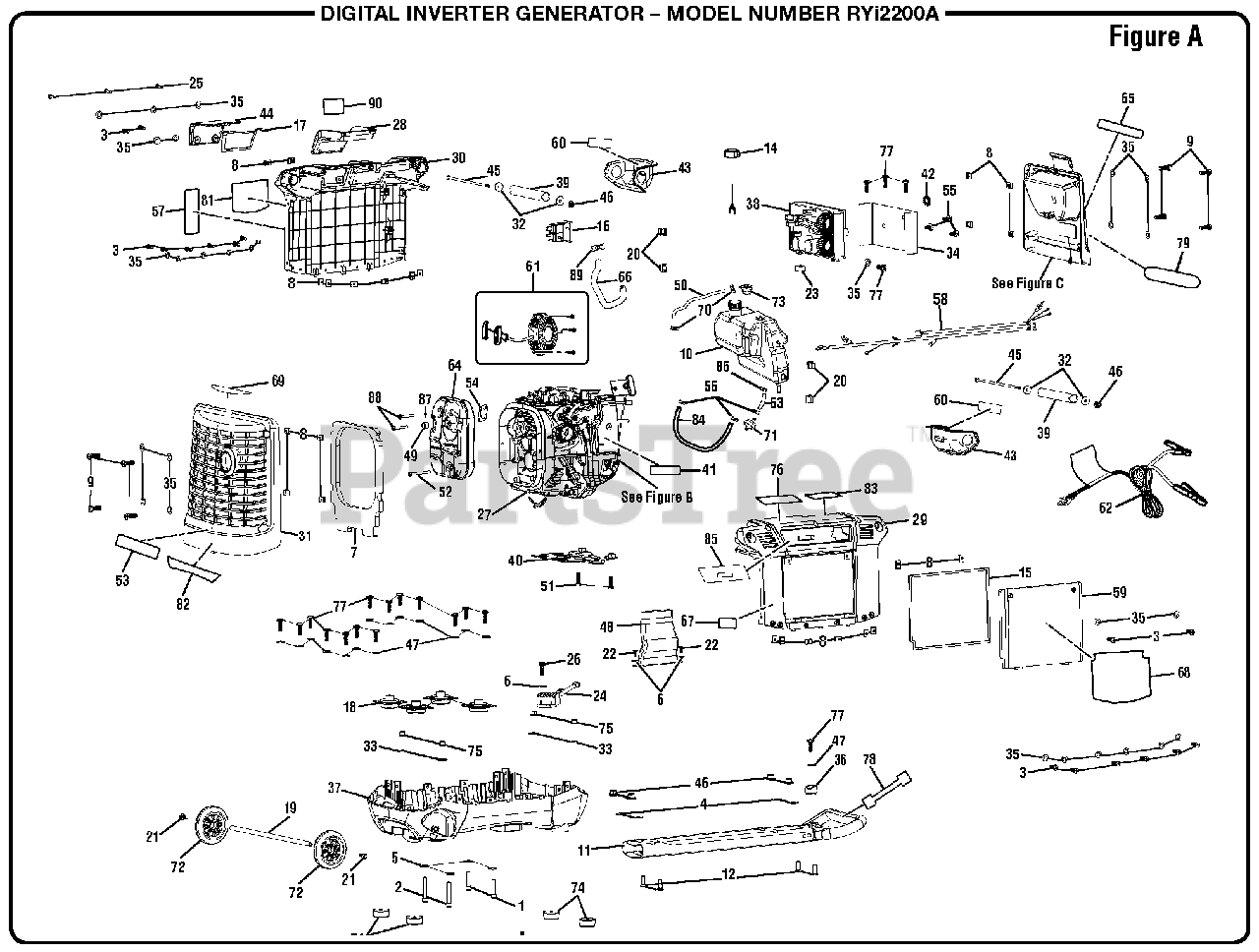

Figure A Parts Diagram

  • Title

1

Homelite 660764005

Bolt (M8 x 35 mm, Hex Soc. Hd.)

$3.99

$

Usually ships in 3-7 days

0

2

Homelite 660764006

Bolt (M8 x 50 mm, Hex Soc. Hd.)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 660342013

Screw (M5 x 12 mm, Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 638128017

Washer (ID5.3 x OD15 x 1t)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 638128019

Washer (ID8.3 x OD16 x 2t)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 690969001

Washer (ID4.2 x OD10 x 1t )

$1.99

$

In Stock, Qty 5

0

7

Homelite 980412001

Foam Pad (Isolator)

$

$

Not available

8

Homelite 678900010

U-Clip (M5 x 0.8 in.)

$

$

Not available

9

Homelite 660342009

Screw (M5 x 15 mm, Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 310711112

Fuel Tank

$

$

Not available

11

Homelite 308790053

Handle Assembly

$62.99

$

In Stock, only 1 left!

0

12

Homelite 661843001

Screw (M5 x 14 mm, Flat Hd.)

$2.99

$

Usually ships in 3-7 days

0

13

Homelite 524012003

Muffler Noise Cover

$44.99

$

Usually ships in 3-7 days

0

14

Homelite 519709004

Fuel Tank Cap

$

$

Not available

15

Homelite 980413001

Seal (Maintenance Cover)

$

$

Not available

16

Homelite 310722006

Carbon Canister

$

$

Not available

17

Homelite 980414001

Spark Plug Cover (Foam)

$2.99

$

Usually ships in 3-7 days

0

18

Homelite 570356009

Engine Bracket (Isolator)

$3.49

$

Usually ships in 3-7 days

0

19

Homelite 620599023

Wheel Axle

$4.49

$

Usually ships in 3-7 days

0

20

Homelite 570356010

Support (Fuel Tank)

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 660345005

Screw (M6 x 20 mm, Hex Flange Hd.)

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 660345006

Screw (M3.5 x 9 mm, Pan Hd.)

$

$

Not available

23

Homelite 570355008

Base Support

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 290433005

Bridge Rectifier

$46.99

$

Usually ships in 3-7 days

0

25

Homelite 660345007

Screw (M5 x 30 mm, Pan Hd.)

$2.49

$

In Stock, only 1 left!

0

26

Homelite 660345008

Screw (M4 x 10 mm, Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

27

Engine (106cc Top Sun)

Note: OWT Industries, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

28

Homelite 570818001

Fuel Over spill Guard

$

$

Not available

29

Homelite 311025002

Left Side Housing w/Labels

$

$

Currently unavailable

30

Homelite 310025003

Right Side Housing w/Labels

$85.99

$

Usually ships in 3-7 days

0

31

Homelite 524012002

Muffler Cover
(Superseded to 524012006)

$8.49

$

Usually ships in 3-7 days

0

32

Homelite 638128015

Washer (ID6.3 x OD25 x 1.5t)

$2.49

$

In Stock, only 2 left!

0

33

Homelite 638128016

Washer (ID6.3 x OD18 x 1.5t)

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 901663002

Air Guide Sheet

$

$

Not available

35

Homelite 638623005

Washer (ID5.3 x OD10 x0.5t)

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 570712003

Handle Bumper

$2.49

$

Usually ships in 3-7 days

0

37

Homelite 525296001

Base
(Superseded to 525296004)

$2.99

$

Usually ships in 3-7 days

0

38

Homelite 290991004

Inverter Module

$609.99

$

Usually ships in 3-7 days

0

39

Homelite 638701021

Handle (Upper)

$8.99

$

In Stock, only 1 left!

0

40

Homelite 311060001

Engine Bracket Assembly

$

$

Not available

41

Homelite 940911003

Maintenance Label
(Superseded to 940911013)

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 638704002

Star Washer

$2.49

$

Usually ships in 3-7 days

0

43

Homelite 524011002

Handle Cover
(Superseded to 524011004)

$44.99

$

In Stock, Qty 15

0

44

Homelite 310029003

Access Cover (Spark Plug)

$9.49

$

Usually ships in 3-7 days

0

45

Homelite 660972025

Bolt (M5 x 195 mm, Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

46

Homelite 678774007

Flange Lock Nut (M5 x 0.8 in.)

$1.99

$

Usually ships in 3-7 days

0

47

Homelite 638128014

Washer (ID5.3 x OD10 x 1t)

$

$

Not available

48

Homelite 525363001

Air Filter Duct

$15.99

$

Usually ships in 3-7 days

0

49

Homelite 638147005

Spark Arrestor

$4.49

$

Usually ships in 3-7 days

0

50

Homelite 570358090

Air Hose (Fuel Tank)

$23.99

$

Usually ships in 3-7 days

0

51

Homelite 660764004

Bolt (M8 x 30 mm, Flange Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 661315004

Bolt (M6 x 65 mm, Flange Hex Hd.)

$

$

Not available

53

Homelite 940947008

Combustion Label

$

$

Not available

54

Homelite 570740031

Exhaust Pipe Gasket

$2.49

$

Usually ships in 3-7 days

0

55

Homelite 660975004

Bolt (M6 x 12 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

56

Homelite 678815010

Clamp (D9.5 mm)

$1.99

$

Usually ships in 3-7 days

0

57

Homelite 940654266

Danger Icon Label

$2.49

$

Usually ships in 3-7 days

0

58

Homelite 290514012

Internal Wire Assembly

$

$

Not available

59

Homelite 310029002

Maintenance Cover w/Label & Sound Foam

$31.99

$

Usually ships in 3-7 days

0

60

Homelite 940654214

Warning Transport w/Handle Label

$2.49

$

Usually ships in 3-7 days

0

61

Homelite 310755007

Recoil Starter Assembly

$

$

Not available

62

Homelite 290425003

DC Cable Assembly w/Label

$15.99

$

Usually ships in 3-7 days

0

63

Homelite 570358103

Fuel Hose (50 mm)

$

$

Not available

64

Homelite 308990048

Muffler

$227.99

$

Usually ships in 3-7 days

0

65

Homelite 941732003

Logo Label (Small)

$

$

Not available

66

Homelite 570358089

Air Hose (Carbon Canister To Air Box)

$4.49

$

Usually ships in 3-7 days

0

67

Homelite 940708023

Check Oil Label

$1.49

$

Usually ships in 3-7 days

0

68

Homelite 940705325

Logo Label (Large)

$12.99

$

Usually ships in 3-7 days

0

69

Homelite 940680049

Hot Surface Label

$2.49

$

Usually ships in 3-7 days

0

70

Homelite 678815016

Clamp (7 mm)

$2.49

$

Usually ships in 3-7 days

0

71

Homelite 308733008

Fuel Filter (1/4 in.)

$7.49

$

In Stock, only 3 left!

0

72

Homelite 310223005

Wheel

$

$

Not available

73

Homelite 310854002

Rollover Vent

$

$

Not available

74

Homelite 561454002

Rubber Foot w/Metal Insert

$4.99

$

Usually ships in 3-7 days

0

75

Homelite 678774009

Flange Lock Nut (M6 x 1 mm)

$1.99

$

In Stock, only 1 left!

0

76

Homelite 940515017

CPSC Label

$2.99

$

Usually ships in 3-7 days

0

77

Homelite 661864006

Screw (M4.2 x 12 mm, Pan Hd.)

$2.99

$

Usually ships in 3-7 days

0

78

Homelite 940758016

Handle Release Label

$1.99

$

Usually ships in 3-7 days

0

79

Homelite 940513030

Ground Warning Label

$1.99

$

Usually ships in 3-7 days

0

80

Homelite 660972026

Bolt (M6 x 16 mm, Hex Flange Hd.)

$1.99

$

Usually ships in 3-7 days

0

81

Homelite 940779161

Performance Label

$12.99

$

Usually ships in 3-7 days

0

82

Homelite 940974094

Fire Distance Label

$2.99

$

Usually ships in 3-7 days

0

83

Homelite 940872003

E85 Label

$1.99

$

In Stock, only 2 left!

0

84

Homelite 570358083

Fuel Hose (Fuel Tank To Fuel Pump)

$7.49

$

Usually ships in 3-7 days

0

85

Homelite 940617161

Quick Start Label

$6.49

$

Usually ships in 3-7 days

0

86

Homelite 678815015

Clamp (10 mm)

$1.99

$

Usually ships in 3-7 days

0

87

Homelite 661864010

Screw (M4.2 x 8 mm, Pan Hd.)

$2.99

$

Usually ships in 3-7 days

0

88

Homelite 661315003

Bolt (M6 x 45 mm, Hex Flange Hd.)

$

$

Not available

89

Homelite 678815011

Clamp (8.5 mm)

$1.49

$

Usually ships in 3-7 days

0

90

Homelite 940705290

Danger Label

$4.99

$

Usually ships in 3-7 days

0

Homelite 120968013

High Altitude Kit (2000-7000 ft., Not Included)

Note: Not Shown

$232.99

$

Usually ships in 3-7 days

0

Homelite 23123-B001-0000

Spark Plug Wrench

$9.49

$

Usually ships in 3-7 days

0

Homelite 991000635

Operator's Manual

$

$

Not available
