RY i2022 VNM (095930358) - Ryobi Digital Inverter Generator, Rev 02 (2022-04) FIGURE D Parts Diagram

Digital Inverter Generator, Rev 02

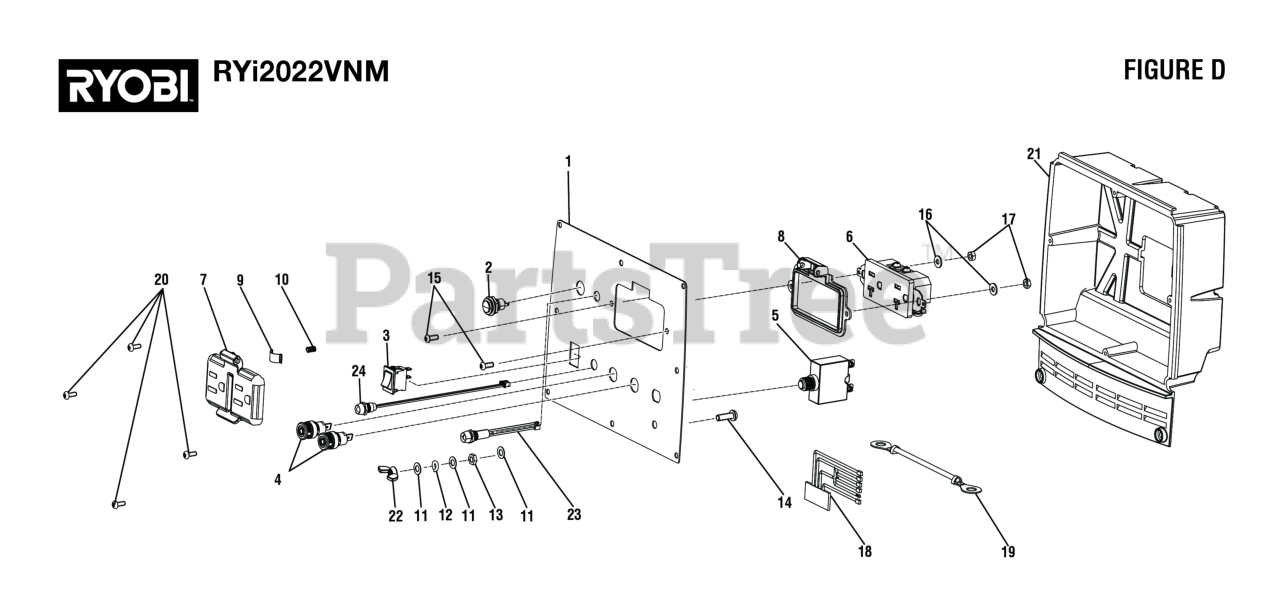

FIGURE D Parts Diagram

  • Title

1

Homelite 638496058

Front Cover

$

$

Currently unavailable

2

Homelite 760945005

Reset Button

$7.49

$

Usually ships in 3-7 days

0

3

Homelite 760504016

Auto Idle Switch

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 870932002

Connector (Black)

$4.99

$

Usually ships in 3-7 days

0

5

Homelite 780350007

Circuit Breaker (20 Amp, 125 Volt)

$6.49

$

Usually ships in 3-7 days

0

6

Homelite 290400017

120 Volt Duplex Receptacle (BM903611)

$

$

Not available

7

Homelite 570412014

Receptacle Cover (Front)

$2.99

$

Usually ships in 3-7 days

0

8

Homelite 570412015

Fixed Outlet Cover

$

$

Not available

9

Homelite 570412012

Clip

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 679449001

Governor Damping Spring

$

$

Not available

11

Homelite 638623005

Flat Washer (OD10 x ID5.3 x 0.5t)

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 678343003

Lock Washer (OD9 x ID5 x 1.3t)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 678016008

Hex Nut (M5)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 660976002

Screw (M5 x 16 mm, Phillips Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 660345025

Bolt (M4 x 10 mm, T15 Torx Drive Hd.)

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 690969002

Flat Washer (OD10 x 42 x 1t)
(Superseded to 690969001)

$1.99

$

In Stock, Qty 5

0

17

Homelite 661514002

Flange Nut (M4)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 290514015

Internal Wire Assembly

$

$

Not available

19

Homelite 290404011

Ground Wire

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 660901004

Screw (#6-20 x 3/8 in., T15 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 519707020

Electrical Panel Housing

$

$

Currently unavailable

22

Homelite 678016009

Wing Nut (M5)

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 270290022

Indicator (Red LED 3.3V-4mA)

$

$

Not available

24

Homelite 291789002

CO Indicator

$

$

Currently unavailable
