RY i2000 T - Ryobi Digital Inverter Generator General Assembly Parts Diagram

Digital Inverter Generator

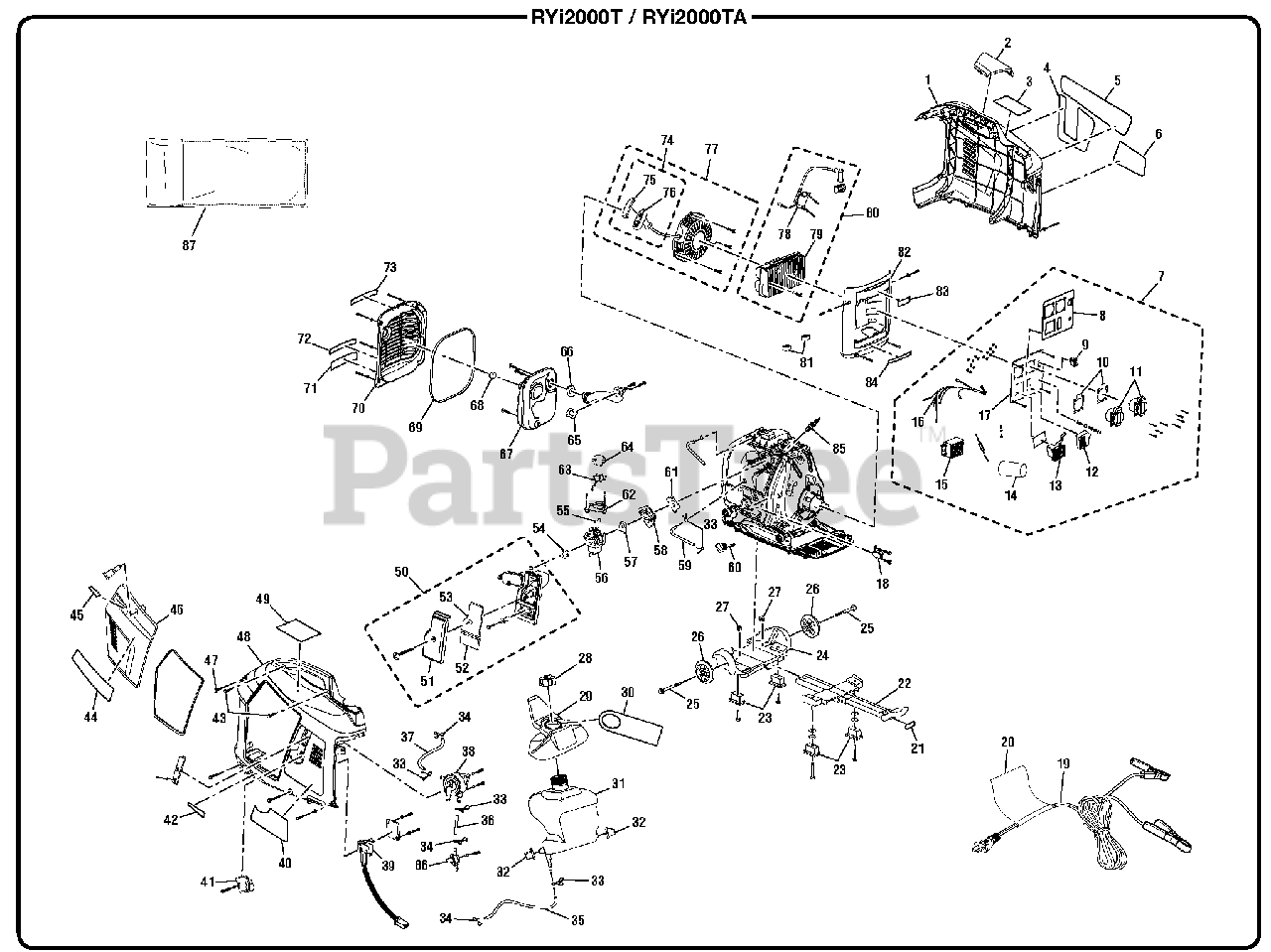

General Assembly Parts Diagram

  • Title

1

Homelite 522708002

Right Housing Assembly w/Labels

$

$

Not available

2

Homelite 519813013

Spark Plug Access Cover

$

$

Not available

3

Homelite 940707085

E85 Label

$

$

Not available

4

Homelite 940779052

Performance Label

$

$

Not available

5

Homelite 940748008

2000 Watt Inverter Label (Left)

$

$

Not available

6

Homelite 940789008

Features Label

$

$

Not available

7

Homelite 310714039

Control Panel Assembly

Note: (Inc. Key Nos. 8-17)

$

$

Not available

8

Homelite 940040019

Control Panel Label

$4.99

$

In Stock, only 1 left!

0

9

Homelite 760504009

Auto Idle Switch

$2.99

$

In Stock, Qty 5

0

10

Homelite 570780001

AC Receptacle Insulator

$

$

Not available

11

Homelite 290400013

AC Receptacle (120 Volt)

$6.49

$

Usually ships in 3-7 days

0

12

Homelite 850201001

Ignition Module

Note: (Ryi2000T)

$

$

Not available

12

Homelite 290992002

Ignition Module

Note: (Ryi2000TA)

$

$

Not available

13

Homelite 290400012

DC Receptacle

$

$

Not available

14

Homelite 570779001

Heat Shrink Tube

$3.49

$

Usually ships in 3-7 days

0

15

Homelite 290433004

Bridge Rectifier

$30.99

$

Usually ships in 3-7 days

0

16

Homelite 290514003

Wiring Harness (Internal)

$31.99

$

Usually ships in 3-7 days

0

17

Homelite 638496015

Control Panel

$

$

Not available

18

Homelite 760504012

Pick-Up Coil

$9.99

$

Usually ships in 3-7 days

0

19

Homelite 290425003

Battery Charging Cable

$15.99

$

Usually ships in 3-7 days

0

20

Homelite 940654075

Cord Label

$3.49

$

Usually ships in 3-7 days

0

21

Homelite 940758016

Handle Release Label

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 308790003

Handle Assembly

$71.99

$

Usually ships in 3-7 days

0

23

Homelite 570355005

Rubber Foot

$4.49

$

Usually ships in 3-7 days

0

24

Homelite 310224027

Rear Handle and Wheel Bracket

$

$

Not available

25

Homelite 620599021

Wheel Mounting Bolt

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 310223005

Wheel

$

$

Not available

27

Homelite 661514001

Hex Nut (Wheel Mounting)

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 310733004

Fuel Cap Assembly

$

$

Not available

29

Homelite 518549002

Fuel Overspill Guard

$11.99

$

Usually ships in 3-7 days

0

30

Homelite 940735003

Hangtag (Warning)

$

$

Not available

31

Homelite 310711083

Fuel Tank

$

$

Not available

32

Homelite 570355007

Fuel Tank Support

$2.99

$

Usually ships in 3-7 days

0

33

Homelite 678815010

Clamp (D9 x 1.2 mm)

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 678815011

Clamp (D7 x 0.8 mm)

$1.49

$

In Stock, only 1 left!

0

35

Homelite 570358050

Fuel Line (D4 x D8 x 260 mm)

$5.99

$

In Stock, only 2 left!

0

36

Homelite 570358051

Fuel Line (D4 x D8 x 130 mm)

$5.99

$

Usually ships in 3-7 days

0

37

Homelite 570358049

Fuel Line (D4 x D8 x 170 mm)

$5.99

$

Usually ships in 3-7 days

0

38

Homelite 308459007

Fuel Pump

$44.99

$

Usually ships in 3-7 days

0

39

Homelite 760504008

Engine Shut Off Switch

$1.99

$

Usually ships in 3-7 days

0

40

Homelite 940617082

Quick Start Label

$

$

Not available

41

Homelite 524002001

Switch Handle

$

$

Not available

42

Homelite 940708014

Lubricant Label

$

$

Not available

43

Homelite 660972024

Bolt (M6 x 30 mm)

$

$

Not available

44

Homelite 940748007

2000 Watt Inverter Label (Right)

$

$

Not available

45

Homelite 940647057

Choke Label

$

$

Not available

46

Homelite 524091001

Maintenance Cover w/Labels

$12.99

$

Usually ships in 3-7 days

0

47

Homelite 660972023

Bolt (M6 x 100 mm)

$2.49

$

Usually ships in 3-7 days

0

48

Homelite 522707002

Left Housing Assembly w/Labels

$

$

Not available

49

Homelite 940515017

CPSC Label

$2.99

$

Usually ships in 3-7 days

0

50

Homelite 310760002

Air Filter Assembly

Note: (Inc. Key Nos. 51-53)

$

$

Not available

51

Homelite 524007001

Air Filter Cover

$

$

Not available

52

Homelite 901709001

Air Filter (Lower)

$1.99

$

In Stock, Qty 9

0

53

Homelite 901709002

Air Filter (Upper)

$2.99

$

In Stock, only 2 left!

0

54

Homelite 570740029

Intake Gasket

$

$

Not available

55

Homelite 679449001

Governor Damping Spring

$

$

Not available

56

Homelite 308054057

Carburetor Assembly

$

$

Not available

57

Homelite 570740028

Carburetor Gasket

$1.99

$

In Stock, only 2 left!

0

58

Homelite 524006001

Heat Dam Insulator

$2.99

$

In Stock, only 2 left!

0

59

Homelite 570358052

Pulse Line (D7 x D11 x 160 mm)

$2.49

$

Usually ships in 3-7 days

0

60

Homelite 310302003

Dipstick

$

$

Not available

61

Homelite 570740027

Insulator Gasket

$2.49

$

Usually ships in 3-7 days

0

62

Homelite 524021001

Governor Bottom Cover

$1.49

$

Usually ships in 3-7 days

0

63

Homelite 230404001

Governor

$

$

Not available

64

Homelite 524023001

Governor Top Cover

$2.49

$

Usually ships in 3-7 days

0

65

Homelite 570740030

Manifold Gasket

$2.49

$

Usually ships in 3-7 days

0

66

Homelite 570740031

Muffler Gasket

$2.49

$

Usually ships in 3-7 days

0

67

Homelite 308990042

Muffler

$57.99

$

Usually ships in 3-7 days

0

68

Homelite 638147005

Spark Arrestor

$4.49

$

Usually ships in 3-7 days

0

69

Homelite 638238003

Muffler Cover Seal

$9.99

$

In Stock, only 1 left!

0

70

Homelite 524092001

Muffler Cover w/Labels

Note: (RYi2000T)

$17.99

$

Usually ships in 3-7 days

0

70

Homelite 524092002

Muffler Cover w/Labels

Note: (RYi2000TA)

$

$

Not available

71

Homelite 940678201

Data Label

Note: (RYi2000T)

$

$

Not available

71

Homelite 940678212

Data Label

Note: (RYi2000TA)

$2.49

$

Usually ships in 3-7 days

0

72

Homelite 940947005

Combustion Label

$2.49

$

Usually ships in 3-7 days

0

73

Homelite 940680041

Hot Surface Label

$

$

Not available

74

Homelite 310552001

Rope Handle Assembly

Note: (Inc. Key Nos. 75-76)

$2.49

$

Usually ships in 3-7 days

0

75

Homelite 524011001

Handle Cover (Rope)

$1.99

$

In Stock, only 3 left!

0

76

Homelite 524015001

Rope Handle

$2.49

$

Usually ships in 3-7 days

0

77

Homelite 310755007

Recoil Starter Assembly

Note: (Inc. Key Nos. 75-76)

$

$

Not available

78

Homelite 850202001

Ignition Coil

Note: (RYi2000T)

$30.99

$

Usually ships in 3-7 days

0

78

Homelite 850202002

Ignition Coil

Note: (RYi2000TA)

$61.99

$

Usually ships in 3-7 days

0

79

Homelite 290991002

Inverter Module

Note: (RYi2000T)

$651.99

$

Usually ships in 3-7 days

0

79

Homelite 290991003

Inverter Module

Note: (RYi2000TA)

$

$

Not available

80

Homelite 291400001

Inverter Module w/Ignition Coil

Note: (RYi2000T) (Inc. Key Nos. 78-79)

$

$

Not available

80

Homelite 291400002

Inverter Module w/Ignition Coil

Note: (RYi2000TA) (Inc. Key Nos. 78-79)

$

$

Not available

81

Homelite 570355008

Inverter Module Support

$2.49

$

Usually ships in 3-7 days

0

82

Homelite 524018001

Control Panel Holder

$5.49

$

Usually ships in 3-7 days

0

83

Homelite 940748011

Logo Label (Small)

$2.49

$

Usually ships in 3-7 days

0

84

Homelite 940513019

Ground Warning Label

$2.49

$

Usually ships in 3-7 days

0

85

Homelite 870174004

Spark Plug

$7.49

$

In Stock, Qty 10

0

86

Homelite 519711005

Fuel Shut Off Valve

$

$

Not available

87

Homelite 120900157

Tool Kit

$12.99

$

Usually ships in 3-7 days

0

Homelite 988000413

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
