RY i2000 GRA (090930355) - Ryobi Digital Inverter Generator, Rev 01 (2019-07) Figure E Parts Diagram

Digital Inverter Generator, Rev 01

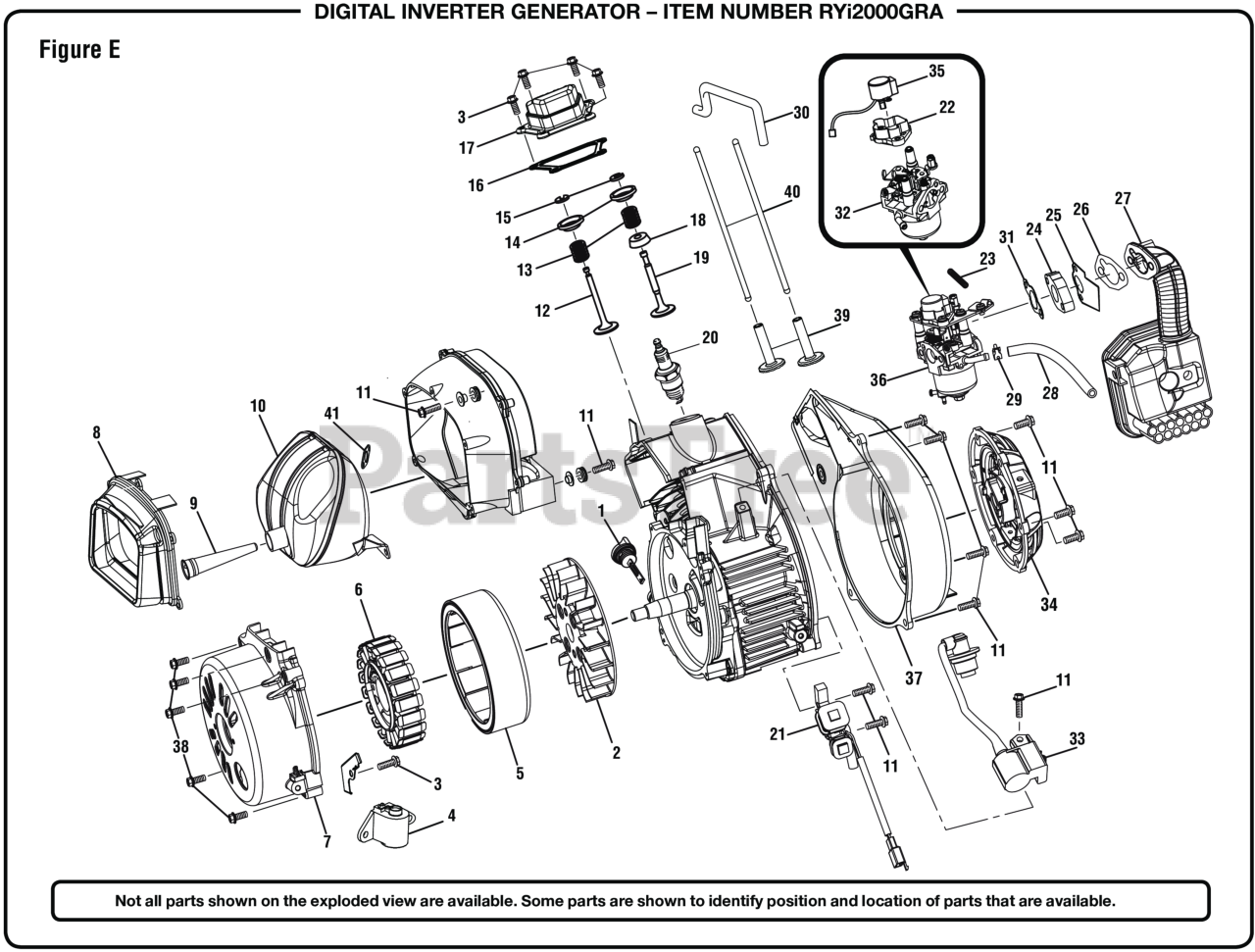

Figure E Parts Diagram

  • Title

1

Homelite 310302005

Oil Dipstick

$3.99

$

Usually ships in 3-7 days

0

2

Homelite 310757003

Fan

$

$

Not available

3

Homelite 91325

Bolt (M6 x 12 mm)

$2.99

$

Usually ships in 3-7 days

0

4

Homelite 205101

Low Oil Sensor

$19.99

$

Usually ships in 3-7 days

0

5

Homelite 310771053

Rotor

$166.99

$

Usually ships in 3-7 days

0

6

Homelite 310772054

Stator

$238.99

$

Usually ships in 3-7 days

0

7

Homelite 678289012

Alternator Cover

$59.99

$

Usually ships in 3-7 days

0

8

Homelite 638497046

Muffler Heat Shield

$37.99

$

Usually ships in 3-7 days

0

9

Homelite 638147013

Spark Arrestor

$9.49

$

Usually ships in 3-7 days

0

10

Homelite 308990055

Muffler

$141.99

$

Usually ships in 3-7 days

0

11

Homelite 91329

Bolt (M6 x 16 mm)

$2.99

$

Usually ships in 3-7 days

0

12

Homelite 205901

Exhaust Valve

$12.99

$

Usually ships in 3-7 days

0

13

Homelite 206001

Valve Spring

$2.99

$

Usually ships in 3-7 days

0

14

Homelite 201801

Plate

$3.49

$

Usually ships in 3-7 days

0

15

Homelite 200801

Valve Lock Clamp

$3.49

$

In Stock, only 2 left!

0

16

Homelite 96006

Gasket (Over Head Cover)

$5.49

$

In Stock, only 1 left!

0

17

Homelite 201101

Over Head Cover

$18.99

$

Usually ships in 3-7 days

0

18

Homelite 201802

Inlet Valve Spring Seat

$4.99

$

Usually ships in 3-7 days

0

19

Homelite 201701

Inlet Valve

$7.99

$

Usually ships in 3-7 days

0

20

Homelite 97101

Spark Plug

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$20.99

$

In Stock, only 1 left!

0

21

Homelite 760504020

RPM Sensor

$37.99

$

Usually ships in 3-7 days

0

22

Homelite 524021005

Governor Motor Housing

$13.99

$

In Stock, only 1 left!

0

23

Homelite 679449002

Compression Spring

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 202301

Thermal Insulation Seat (Carburator)

$3.99

$

Usually ships in 3-7 days

0

25

Homelite 96121

Paper Gasket

$3.49

$

In Stock, Qty 5

0

26

Homelite 96009

Air Box Gasket

$3.49

$

Usually ships in 3-7 days

0

27

Homelite 518248005

Air Filter Assembly

$35.99

$

In Stock, only 1 left!

0

28

Homelite 570358172

Fuel Hose (6 mm)

$8.49

$

Usually ships in 3-7 days

0

29

Homelite 678409003

Fuel Line Clamp (7/16 in., BM903611)

$1.99

$

In Stock, Qty 5

0

30

Homelite 95614

Breather

$3.49

$

In Stock, only 2 left!

0

31

Homelite 96007

Gasket (Connection Block)

$

$

Not available

32

Homelite 308054124

Carburetor

$124.99

$

Usually ships in 3-7 days

0

33

Homelite 850202005

Ignition Coil

$77.99

$

In Stock, only 1 left!

0

34

Homelite 636996002

Engine Recoil

$

$

Not available

35

Homelite 230404002

Stepper Motor

$26.99

$

Usually ships in 3-7 days

0

36

Homelite 308054123

Carburetor Assembly

$

$

Not available

37

Homelite 204901

Engine Cover

$26.99

$

Usually ships in 3-7 days

0

38

Homelite 91334

Bolt (M6 x 30 mm)

$2.99

$

Usually ships in 3-7 days

0

39

Homelite 206101

Lifter Valve

$

$

Not available

40

Homelite 201901

Pushing Rod

$3.49

$

Usually ships in 3-7 days

0

41

Homelite 96008

Gasket (Muffler)

$2.99

$

In Stock, Qty 5

0
