RY i1802 BT VNM (095930353DG9) - Ryobi 40V Power Station Portable Generator, Rev 01 (2021-10) General Assembly Parts Diagram

40V Power Station Portable Generator, Rev 01

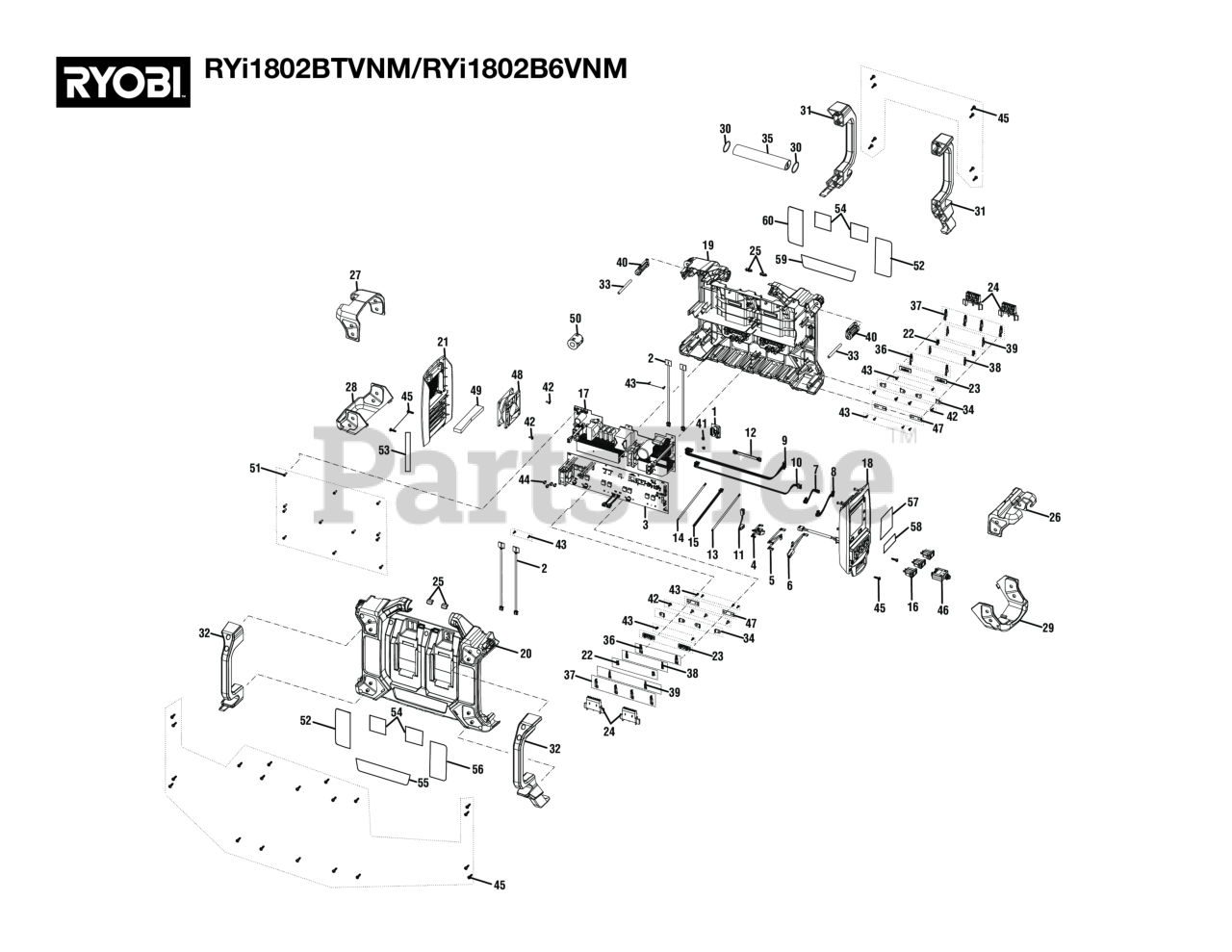

General Assembly Parts Diagram

  • Title

1

Homelite 280755001

Program Circuit Board Assembly

$

$

Currently unavailable

2

Homelite 280850001

LED Circuit Board Assembly

$

$

Currently unavailable

3

Homelite 280851001

Main Circuit Board Assembly

$

$

Currently unavailable

4

Homelite 290361008

Output Assembly

$

$

Currently unavailable

5

Homelite 290361009

Harness Circuit Breaker to Receptacle

$

$

Currently unavailable

6

Homelite 290361010

Harness Parallel to Circuit Breaker

$

$

Currently unavailable

7

Homelite 290361017

Controller Harness

$

$

Currently unavailable

8

Homelite 290361018

Firmware Harness

$

$

Currently unavailable

9

Homelite 290361019

Inverter Harness

$

$

Currently unavailable

10

Homelite 290361020

Inverter to Controller Harness

$

$

Currently unavailable

11

Homelite 290361021

BMS to Controller Harness

$

$

Currently unavailable

12

Homelite 290361022

PH-5Y Female Harness

$

$

Currently unavailable

13

Homelite 290361024

Negative Battery Cable

$

$

Currently unavailable

14

Homelite 290361025

Positive Battery Cable.

$

$

Currently unavailable

15

Homelite 290361026

Battery Harness

$

$

Currently unavailable

16

Homelite 290400029

120V Power Outlet Receptacle

$

$

Currently unavailable

17

Homelite 290991040

1600W Inverter Circuit Board Assembly

$

$

Currently unavailable

18

Homelite 310714067

Front Cover Assembly (Inc. Key Nos. 57-58)

Note: (Inc. Key Nos. 57-58)

$

$

Currently unavailable

19

Homelite 524001019

Housing Cover (Right, Inc. Key Nos. 52, 54 & 59-60)

Note: (Inc. Key Nos. 52, 54 & 59-60)

$

$

Currently unavailable

20

Homelite 524003077

Housing Cover (Left, Inc. Key Nos. 52 & 54-56)

Note: (Inc. Key Nos. 52 & 54-56)

$

$

Currently unavailable

21

Homelite 524012041

Rear Housing Cover (Inc. Key No. 53)

Note: (Inc. Key No. 53)

$

$

Currently unavailable

22

Homelite 525361023

Contact Holder

$

$

Currently unavailable

23

Homelite 525651003

Battery Cover Connector

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 525692003

Battery Contact Holder

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 529685003

LED Light Lens

$

$

Currently unavailable

26

Homelite 529907007

Top Bumper (Front)

$

$

Currently unavailable

27

Homelite 529907008

Top Bumper (Rear)

$

$

Currently unavailable

28

Homelite 529907009

Bottom Bumper (Rear)

$

$

Currently unavailable

29

Homelite 529907010

Bottom Bumper (Front)

$

$

Currently unavailable

30

Homelite 561384020

O-Ring

$

$

Currently unavailable

31

Homelite 561454011

Handle (Right)

$

$

Currently unavailable

32

Homelite 561454012

Handle (Left)

$

$

Currently unavailable

33

Homelite 620599037

Strap Pin

$

$

Currently unavailable

34

Homelite 638700046

Brush Skirt Clip

$

$

Currently unavailable

35

Homelite 638701037

Handle Tube

$

$

Currently unavailable

36

Homelite 638991001

STAMPING I BATTERY CONTACT PLATE TERMINA

$1.99

$

Usually ships in 3-7 days

0

37

Homelite 638991004

Contact Plate Terminal

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 639504003

T2 Contact Strip (Upper)

$

$

Currently unavailable

39

Homelite 639504004

T2 Contact Strip (Lower)

$

$

Currently unavailable

40

Homelite 641802003

Strap Retainer

$

$

Currently unavailable

41

Homelite 660200002

SCREW (M2.3 X 6 mm)

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 660202001

Screw (M3 x 10 mm)

$

$

Currently unavailable

43

Homelite 660203001

Screw (M3 x 8 mm, Pan Hd., Pan Hd)

$1.99

$

In Stock, only 4 left!

0

44

Homelite 660481028

Screw (M4 x 16 mm, Pan Hd.)

$

$

Not available

45

Homelite 661403016

Screw (M4.2 x 15 mm, Phillips Hd. S.T.)

$1.99

$

Usually ships in 3-7 days

0

46

Homelite 780350011

15A Circuit Breaker

$

$

Currently unavailable

47

Homelite 860948003

Battery Connector Cover

$

$

Currently unavailable

48

Homelite 890025005

Fan

$

$

Currently unavailable

49

Homelite 980414042

Foam

$

$

Currently unavailable

50

Homelite 890052002

Magnet Ring

$

$

Currently unavailable

51

Homelite 661610009

Screw (M3.5 x 12 mm, T15 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

52

Homelite 940779261

Charging Indicator Label

$

$

Currently unavailable

53

Homelite 940310009

FCC Label

$2.49

$

Usually ships in 3-7 days

0

54

Homelite 940911015

Battery Callout Label

$

$

Currently unavailable

55

Homelite 940779262

RYOBI/Power Station Logo Label

$

$

Currently unavailable

56

Homelite 940513037

Warning Label

$

$

Currently unavailable

57

Homelite 940040056

Main Power label

$

$

Currently unavailable

58

Homelite 940705414

Logo Label

$

$

Currently unavailable

59

Homelite 940654440

Battery Warning Label

$

$

Currently unavailable

60

Homelite 941588897

Data Label

$

$

Currently unavailable

Homelite 995000819

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
