RY i1000 (991000072) - Ryobi Digital Inverter Generator, Rev 04 (2016-01) Figure A Parts Diagram

Digital Inverter Generator, Rev 04

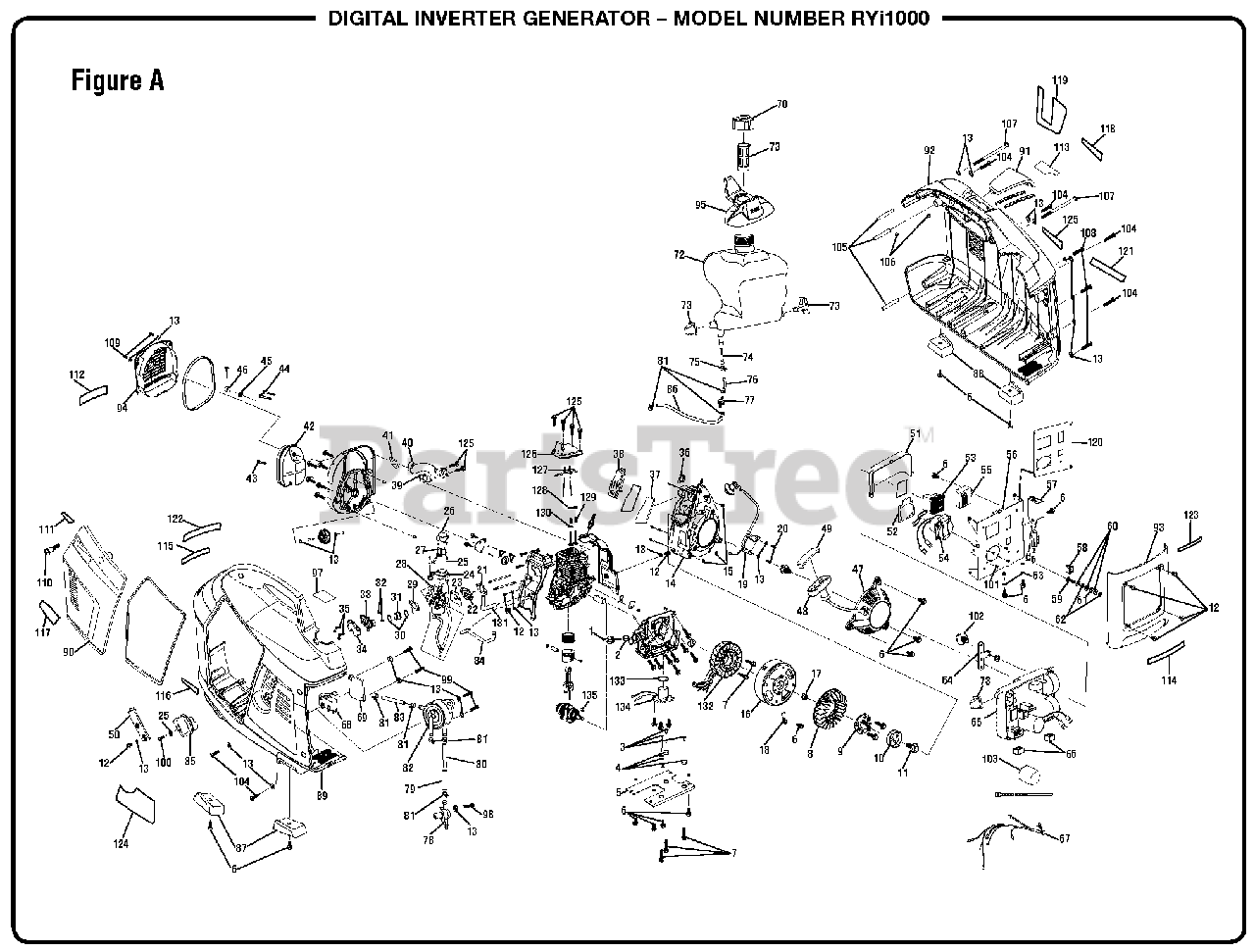

Figure A Parts Diagram

  • Title

1

Homelite 11221-A142-0000

Oil Dipstick

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 11222-A142-0000

Oil Dipstick Seal

$2.49

$

In Stock, only 3 left!

0

3

Homelite 21006-B001-0000

Bottom Isolator Bushing

$

$

Not available

4

Homelite 21012-B001-0000

Bottom Isolator

$

$

Not available

5

Homelite 21005-B001-0000

Mounting Plate

$

$

Not available

6

Homelite 01-02-0023

Bolt (M5 x 12 mm)

$

$

Not available

7

Homelite 01-02-0043

Bolt (M6 x 25 mm)

$

$

Not available

8

Homelite 16201-A142-0000

Cooling Fan

$

$

Not available

9

Homelite 17102-A142-0000

Recoil Starter Cup Seat

$2.99

$

Usually ships in 3-7 days

0

10

Homelite 17101-A142-0000

Recoil Starter Driving Cup

$2.99

$

Usually ships in 3-7 days

0

11

Homelite 01-02-0063

Bolt (M6 x 12 mm)

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 01-01-1571

Screw (M5 x 8 mm)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 01-04-0121

Washer

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 17201-A142-0000

Engine Shroud

$10.99

$

Usually ships in 3-7 days

0

15

Homelite 01-03-0163

Nut (M5)

$

$

Not available

16

Homelite 16300-A142-0000

Rotor

$

$

Not available

17

Homelite 01-03-0173

Nut (M10)

$

$

Not available

18

Homelite 16130-A142-0000

Magnet Coil Pick Up

$15.99

$

Usually ships in 3-7 days

0

19

Homelite 16120-A142-0000

Ignition Coil

$28.99

$

Usually ships in 3-7 days

0

20

Homelite 01-01-1501

Screw (M48 x 19 mm)

$

$

Not available

21

Homelite 14001-A142-0000

Insulating Gasket

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 14002-A142-0000

Carburetor Seat

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 14004-A142-0000

Carburetor Gasket

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 14422-A142-0000

Lower Cover (Motor Governor)

$

$

Not available

25

Homelite 01-04-0251

Washer (4 mm)

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 14421-A142-0000

Top Cover (Motor Governor)

$

$

Not available

27

Homelite 14430-A142-0000

Motor Governor

$21.99

$

Usually ships in 3-7 days

0

28

Homelite 14100-A144-0000

Carburetor

$

$

Not available

29

Homelite 14201-A142-0000

Intake Pipe Gasket

$

$

Not available

30

Homelite 14203-A142-0000

Intake Pipe Clip

$

$

Not available

31

Homelite 14202-A142-0000

Intake Pipe Joint

$

$

Not available

32

Homelite 14223-A142-0000

Intake Pipe Nest

$

$

Not available

33

Homelite 14221-A142-0001

PVC Intake Pipe (Lower Cover)

$

$

Not available

34

Homelite 14222-A142-0000

PVC Intake Pipe (Top Cover)

$

$

Not available

35

Homelite 01-01-1351

Screw (M42 x 8 mm)

$

$

Not available

36

Homelite 14204-A142-0000

Air Cleaner Baffle

$2.49

$

Usually ships in 3-7 days

0

37

Homelite 14206-A142-0000

Air Filter Element

$

$

Not available

38

Homelite 14205-A142-0000

Air Cleaner Cover

$1.49

$

Usually ships in 3-7 days

0

39

Homelite 15001-A142-0000

Exaust Pipe Gasket

$1.99

$

Usually ships in 3-7 days

0

40

Homelite 15002-A142-0000

Exhaust Pipe Outlet

$11.99

$

Usually ships in 3-7 days

0

41

Homelite 15003-A142-0000

Muffler Gasket

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 15120-A142-0000

Muffler

$47.99

$

Usually ships in 3-7 days

0

43

Homelite 01-02-0071

Bolt (M6 x 40 mm)

$

$

Not available

44

Homelite 01-02-0071

Bolt (M6 x 55 mm)

$

$

Not available

45

Homelite ZJ158F-10-02-1

Spark Arrestor

$2.49

$

Usually ships in 3-7 days

0

46

Homelite ZJ158F-10-02-2

Spark Arrestor Bracket

$

$

Not available

47

Homelite 05-01-04-1181

Starter Recoil

$40.99

$

Usually ships in 3-7 days

0

48

Homelite 17131-A142-0000

Recoil Handle

$

$

Not available

49

Homelite 17132-A142-0000

Handle Cover

$2.49

$

Usually ships in 3-7 days

0

50

Homelite 21004-B001-0000

Handle Support

$3.49

$

Usually ships in 3-7 days

0

51

Homelite 23002-B001-0000

Electrical Panel Inner Cover

$4.49

$

Usually ships in 3-7 days

0

52

Homelite 23141-B001-0000

AC Socket Mat

$

$

Not available

53

Homelite 23130-B001-0000

DC Socket

$15.99

$

Usually ships in 3-7 days

0

54

Homelite 23140-B001-0002

AC Receptacle (15A)

$8.49

$

Usually ships in 3-7 days

0

55

Homelite 16150-A142-0000

Ignition Module

$48.99

$

Usually ships in 3-7 days

0

56

Homelite 23101-B001-0000

Faceplate

$

$

Not available

57

Homelite 23160-B001-0000

Bridge Rectifier

$31.99

$

Usually ships in 3-7 days

0

58

Homelite 760504009

Switch

$2.99

$

In Stock, Qty 5

0

59

Homelite 01-01-1062

Screw (M5 x 16 mm)

$

$

Not available

60

Homelite 01-04-0282

Washer (M5)

$

$

Not available

61

Homelite 01-04-0292

Lock Washer (5 mm)

$

$

Not available

62

Homelite 01-03-0182

Nut (M5)

$

$

Not available

63

Homelite 06-03-312

Star Washer (6 mm)

$

$

Not available

64

Homelite 17205-B001-0000

Ground Plate

$

$

Not available

65

Homelite 290991010

Inverter Module

$

$

Not available

66

Homelite 22002-B001-0000

Lower Support

$

$

Not available

67

Homelite 290514008

Wiring Harness

$

$

Not available

68

Homelite 23106-B001-0000

Engine Switch

$1.99

$

Usually ships in 3-7 days

0

69

Homelite 21101-B001-0000

Engine Switch Cover

$2.49

$

Usually ships in 3-7 days

0

70

Homelite 12-01-0037

Fuel Cap

$37.99

$

Usually ships in 3-7 days

0

71

Homelite TG2000I-02-3

Filter Cup

$

$

Not available

72

Homelite 310711167

Fuel Tank

$

$

Not available

73

Homelite 14309-A142-0000

Fuel Tank Support

$3.49

$

Usually ships in 3-7 days

0

74

Homelite 14350-A142-0000

Inline Fuel Filter

$1.99

$

Usually ships in 3-7 days

0

75

Homelite TG2000I-02-9

Clamp (10 mm)

$2.49

$

Usually ships in 3-7 days

0

76

Homelite 14301-A142-0000

Fuel Tube (M4 x 8 mm)

$

$

Not available

77

Homelite 308733008

Fuel Filter Inline (25 in)

$7.49

$

In Stock, only 2 left!

0

78

Homelite 619711005

Fuel Valve

$

$

Currently unavailable

79

Homelite 16302-A142-0001

Sleeve (8 mm)

$

$

Not available

80

Homelite 14302-A142-0000

Fuel Tube (M4 x 8 mm)

$

$

Not available

81

Homelite TG2000I-02-8

Fuel Hose Clamp (M95 x 08 mm)

$

$

Not available

82

Homelite 308459007

Fuel Pump

$44.99

$

Usually ships in 3-7 days

0

83

Homelite 14303-A142-0000

Fuel Tube (M4 x 8 mm)

$2.49

$

Usually ships in 3-7 days

0

84

Homelite 14304-A142-0000

Vacuum Hose (Engine To Fuel Pump)

$2.49

$

Usually ships in 3-7 days

0

85

Homelite 14323-A142-0000

Switch Handle

$2.49

$

Usually ships in 3-7 days

0

86

Homelite 03-03-1-0124

Fuel Hose (Filter To Valve)

$5.99

$

Usually ships in 3-7 days

0

87

Homelite 21130-B001-0000

Rubber Foot (Left)

$

$

Not available

88

Homelite 21240-B001-0000

Rubber Foot (Right)

$

$

Not available

89

Homelite 21003-B001-0000

Housing Assembly w/Label (Left)

$

$

Not available

90

Homelite 12-01-0685

Maintenance Cover w/Seal

$

$

Not available

91

Homelite 12-01-0684

Spark Plug Maintenance Cover

$2.49

$

Usually ships in 3-7 days

0

92

Homelite 21220-B001-0000

Housing Assembly w/Label (Right)

$

$

Not available

93

Homelite 23001-B001-0000

Front Panel w/Labels

$26.99

$

Usually ships in 3-7 days

0

94

Homelite 12-01-0686

Muffler Cover

$52.99

$

Usually ships in 3-7 days

0

95

Homelite 14311-A142-0001

Fuel Overspill Guard

$15.99

$

Usually ships in 3-7 days

0

96

Homelite 940707036

Danger Icon Label (Sp)

$

$

Not available

97

Homelite 940515017

CPSC Label

$2.99

$

Usually ships in 3-7 days

0

98

Homelite 01-01-1661

Screw (M42 x 16 mm)

$

$

Not available

99

Homelite 01-01-1641

Screw (M42 x 12 mm)

$2.49

$

Usually ships in 3-7 days

0

100

Homelite 01-01-1453

Screw (M4 x 16 mm)

$2.49

$

Usually ships in 3-7 days

0

101

Homelite 01-01-1631

Screw (M4 x 8 mm)

$

$

Not available

102

Homelite 01-02-0153

Screw (M6 x 10 mm)

$

$

Not available

103

Homelite 16301-A142-0000

Heat Shrink Tube

$

$

Not available

104

Homelite 01-01-1561

Screw (M5 x 20 mm)

$2.49

$

Usually ships in 3-7 days

0

105

Homelite 21011-B001-0000

Spacer

$

$

Not available

106

Homelite 01-03-0091

Nut (M5)

$2.49

$

Usually ships in 3-7 days

0

107

Homelite 01-01-1591

Screw (M5 x 100 mm)

$2.49

$

Usually ships in 3-7 days

0

108

Homelite 01-01-1541

Screw (M48 x 16 mm)

$

$

Not available

109

Homelite 01-01-1061

Screw (M5 X 16 mm)

$

$

Not available

110

Homelite 21133-B001-0000

Maintenance Cover Screw

$2.49

$

Usually ships in 3-7 days

0

111

Homelite 940647057

Choke Label

$

$

Not available

112

Homelite 940947005

Combustion Label

$2.49

$

Usually ships in 3-7 days

0

113

Homelite 940707085

Danger/E85 Label

$

$

Not available

114

Homelite 940513020

Ground Warning Label

$

$

Not available

115

Homelite 940680027

Hot Surface Label

$1.49

$

Usually ships in 3-7 days

0

116

Homelite 940708014

Lubricant Label

$

$

Not available

117

Homelite 940748009

Logo Label (Right)

$4.49

$

Usually ships in 3-7 days

0

118

Homelite 940748010

Logo Label (Left)

$4.99

$

Usually ships in 3-7 days

0

119

Homelite 940779055

Performance Label

$

$

Not available

120

Homelite 940040020

Control Panel Label

$14.99

$

Usually ships in 3-7 days

0

121

Homelite 940678385

Data Label

$2.49

$

Usually ships in 3-7 days

0

122

Homelite 940974094

Fire Distance Label

$2.99

$

Usually ships in 3-7 days

0

123

Homelite 940748011

Ryobi Logo Label

$2.49

$

Usually ships in 3-7 days

0

124

Homelite 940617081

Start Label

$3.49

$

Usually ships in 3-7 days

0

125

Homelite 01-02-00311

Bolt (M5 x 20 mm)

$

$

Not available

126

Homelite 05-01-01-168

Cylinder Head Cover

$

$

Not available

127

Homelite 06-06-329

Rocker Arm

$

$

Not available

128

0606348

Valve Retainer

$

$

Not available

129

Homelite 06-03-119

Valve Spring

$

$

Not available

130

Homelite 03-03-1-021

Valve Seal

$

$

Not available

131

Homelite 03-03-1-011

Engine Ventilation Hose

$

$

Not available

132

Homelite 16200-A142-0000

Stator Assembly

$

$

Not available

133

03031023

Oil Sensor Seal

$

$

Not available

134

023309

Oil Sensor

$

$

Not available

135

01060190

Engine Shaft Key

$

$

Not available

Homelite 120968011

High Altitude Kit (1500-7000 ft, Not Included)

Note: Not Shown

$135.99

$

Usually ships in 3-7 days

0

Homelite 290425003

DC Cable Assembly

$15.99

$

Usually ships in 3-7 days

0

Homelite 23123-B001-0000

Spark Plug Wrench

$9.49

$

Usually ships in 3-7 days

0

Homelite 23124-B001-0000

Plug Wrench Rod

$

$

Currently unavailable

Homelite 991000460

Operator's Manual

$

$

Not available

Homelite 991000461

Quick Reference Guide

$1.99

$

Usually ships in 3-7 days

0
