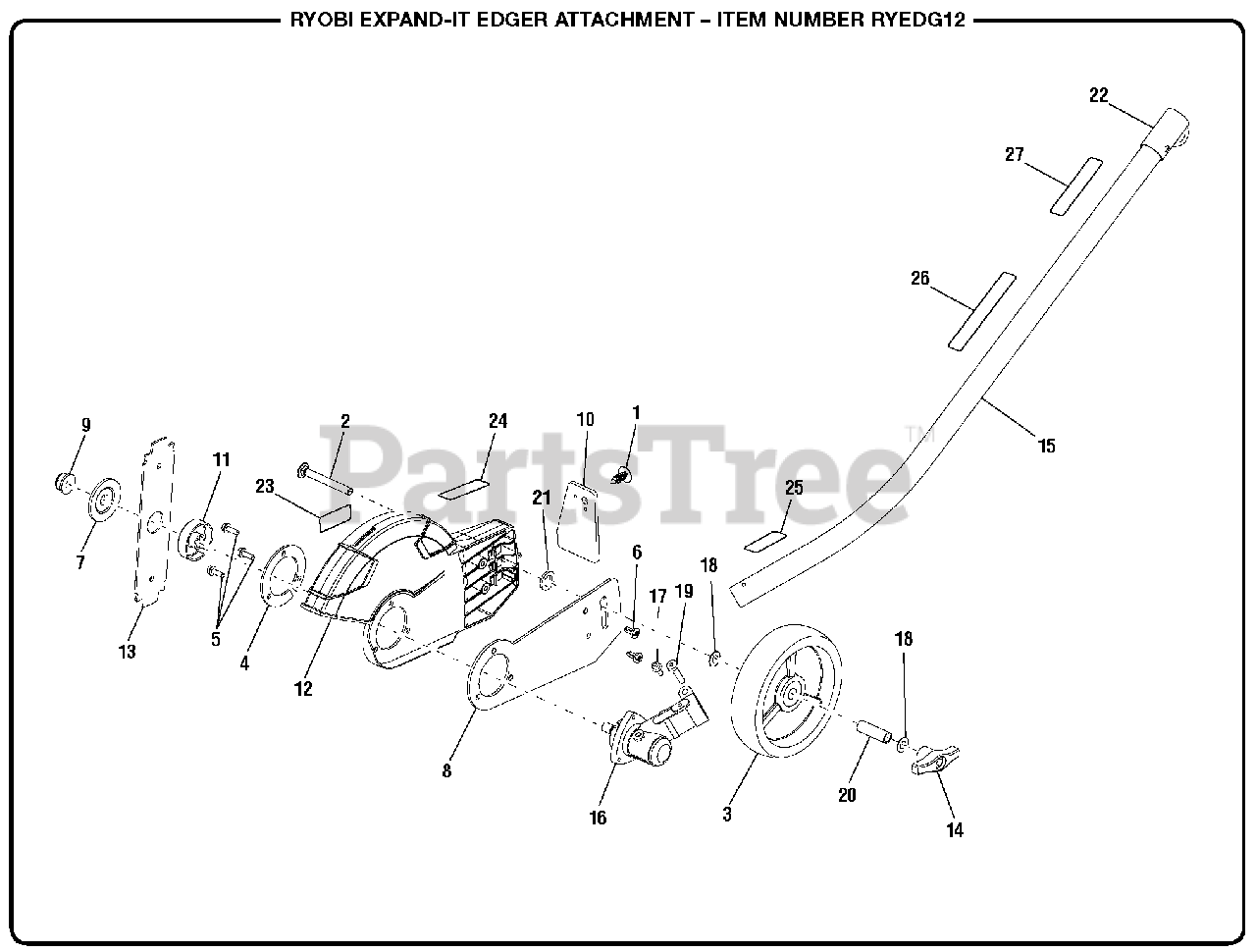

RY EDG12 (090410010) - Ryobi Expand-it Edger Attachment General Assembly Parts Diagram

Expand-it Edger Attachment

General Assembly Parts Diagram

  • Title

1

Homelite 531944001

Trim Clip

$1.99

$

In Stock, only 1 left!

0

2

Homelite 661526008

Carriage Bolt (M8 x 1.25 in.)

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 531503001

Wheel (dia150 mm)

$10.99

$

Usually ships in 3-7 days

0

4

Homelite 678262002

Mounting Ring

$3.99

$

In Stock, only 2 left!

0

5

Homelite 660354001

Screw (M5 x 16 mm, T25 Torx Soc. Hd.)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 660621001

Screw (10-14 x 1/2 in., T25 Torx Soc. Hd.)
(Superseded to 82632)

$1.99

$

In Stock, Qty 9

0

7

Homelite 613072001

Blade Washer

$3.49

$

In Stock, only 3 left!

0

8

Homelite 637404001

Main Bracket

$15.99

$

Usually ships in 3-7 days

0

9

Homelite 678018002

Blade Lock Nut (M10 x 1.25 in.)

$2.99

$

In Stock, only 3 left!

0

10

Homelite 561382003

Mud Flap

$2.99

$

Usually ships in 3-7 days

0

11

Homelite 613071001

Flange Washer

$5.49

$

In Stock, only 1 left!

0

12

Homelite 312432002

Grass Shield Assembly

Note: (Inc. Key Nos. 23-24)

$5.49

$

Usually ships in 3-7 days

0

13

Homelite 638006013

Blade (8 in., AC04215)

$10.99

$

Usually ships in 3-7 days

0

14

Homelite 308730006

Adjusting Knob w/Hex Nut

$4.49

$

In Stock, only 2 left!

0

15

Homelite 312432001

Boom Assembly

Note: (Inc. Key Nos. 25-27)

$35.99

$

Usually ships in 3-7 days

0

16

Homelite 312017001

Gear Case Assembly

$75.99

$

In Stock, only 1 left!

0

17

Homelite 660641002

Screw (10-24 x 5/8 in., Hex Soc. Hd.)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 636233001

Washer (ID8.5 x OD20.5 x 2t)

$1.99

$

In Stock, only 4 left!

0

19

Homelite 660642002

Screw (1/4-20 x 1-1/4 in., Hex Soc. Hd.)

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 695528001

Axle Spacer

$1.99

$

In Stock, Qty 5

0

21

Homelite 637434002

Washer (ID12 x OD20 x 2.5t)

$1.99

$

In Stock, only 2 left!

0

22

Homelite 518019002

Hanger Cap
(Superseded to 518019004)

$1.99

$

In Stock, Qty 6

0

23

Homelite 941002276

Logo Label

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 941018002

Shield Icon Warning Label

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 941489003

Hot Surface Warning Label

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 940726013

Expand-It Label

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 940657026

Boom Icon Warning Label

$1.99

$

Usually ships in 3-7 days

0

Homelite 991000979

Operator's Manual

$

$

Not available
