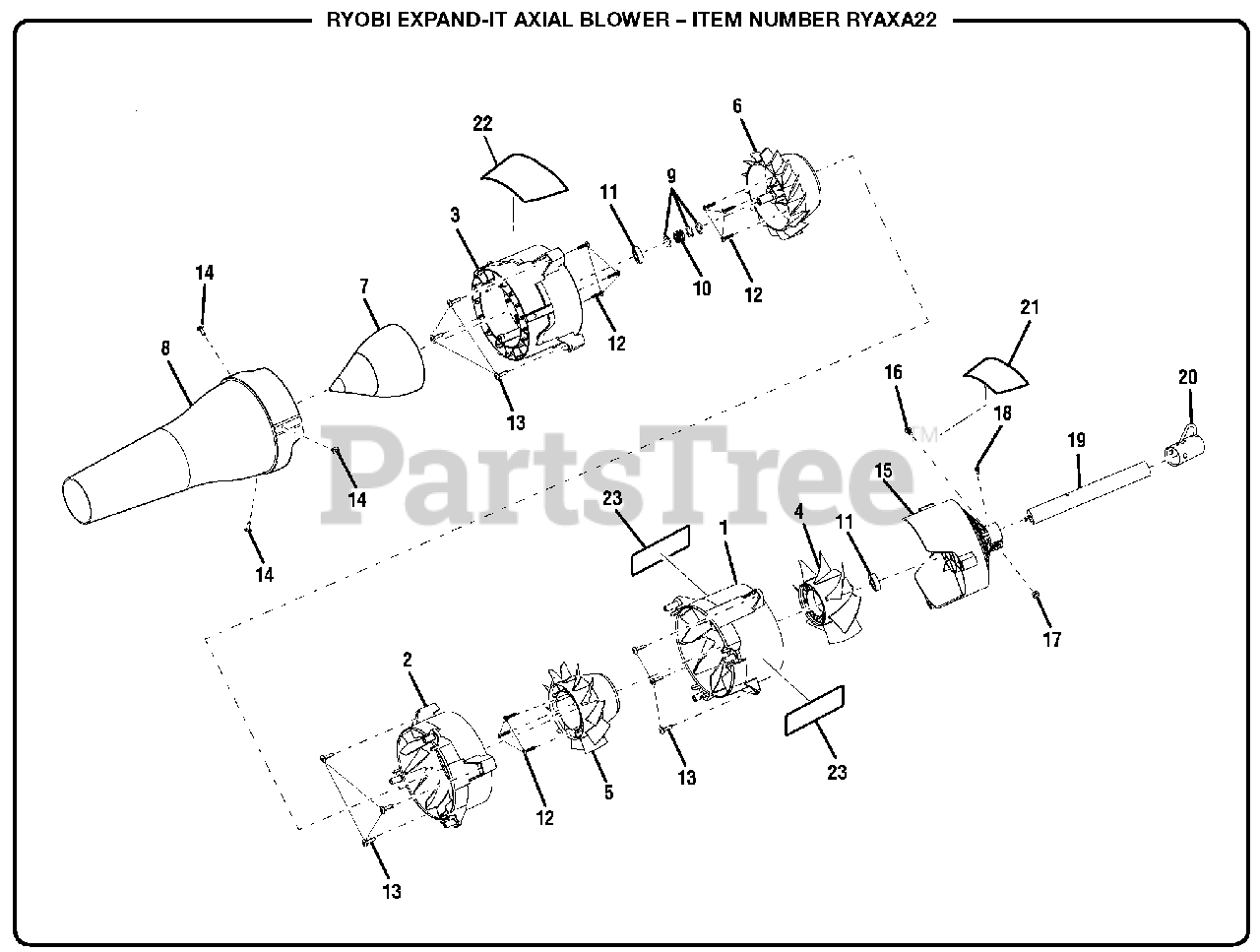

RY AXA22 (090249002) - Ryobi Expand-it Axial Blower, Rev 01 (2016-10) General Assembly Parts Diagram

Expand-it Axial Blower, Rev 01

General Assembly Parts Diagram

  • Title

1

Homelite 529727002

Axial Stator (Stage One)

$23.99

$

In Stock, only 1 left!

0

2

Homelite 529728002

Axial Stator (Stage Two)

$18.99

$

Usually ships in 3-7 days

0

3

Homelite 529729002

Axial Stator (Stage Three)

$34.99

$

Usually ships in 3-7 days

0

4

Homelite 531249001

Axial Fan (Stage One)

$24.99

$

Usually ships in 3-7 days

0

5

Homelite 529731001

Axial Fan (Stage Two)

$15.99

$

In Stock, only 1 left!

0

6

Homelite 529732001

Axial Fan (Stage Three)

$17.99

$

Usually ships in 3-7 days

0

7

Homelite 529734001

Reducer Cone

$5.49

$

Usually ships in 3-7 days

0

8

Homelite 531918001

Reducer Nozzle

$11.99

$

Usually ships in 3-7 days

0

9

Homelite 637311001

Washer (OD18 x ID12.15 x 1.5t)

$1.99

$

In Stock, Qty 5

0

10

Homelite 637049002

Wave Spring

$5.49

$

In Stock, only 1 left!

0

11

Homelite 690697001

Ball Bearing (6001-ZZ)

$3.49

$

In Stock, only 1 left!

0

12

Homelite 660563001

Screw (M4 x 18 mm, T20 Torx Pan Hd.)
(Superseded to 660734001)

$1.99

$

In Stock, only 3 left!

0

13

Homelite 660629005

Screw (10-14 x 19 mm, T25 Torx Truss Pan Hd. T.F.)

$1.99

$

In Stock, Qty 10

0

14

Homelite 660621001

Screw (10-14 x 13 mm, T25 Torx Truss Pan Hd. T.F.)
(Superseded to 82632)

$1.99

$

In Stock, Qty 9

0

15

Homelite 529735002

Intake

$24.99

$

Usually ships in 3-7 days

0

16

Homelite 660697003

Screw (M6 x 12 mm, T27 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 678029002

Hex Nut (M6 x 1)

$1.99

$

In Stock, Qty 6

0

18

Homelite 660925011

Screw (M4 x 8 mm, T20 Torx Pan Hd.)

$1.99

$

In Stock, only 3 left!

0

19

Homelite 308893005

Boom Assembly

$18.99

$

Usually ships in 3-7 days

0

20

Homelite 518019002

End Cap
(Superseded to 518019004)

$1.99

$

In Stock, Qty 6

0

21

Homelite 940705354

Logo Label

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 940657227

Safety Icon Label

$

$

Not available

23

Homelite 940705365

Jet Fan Logo Label

$1.99

$

Usually ships in 3-7 days

0

Homelite 991000969

Operator's Manual

Note: Not Shown

$

$

Not available
