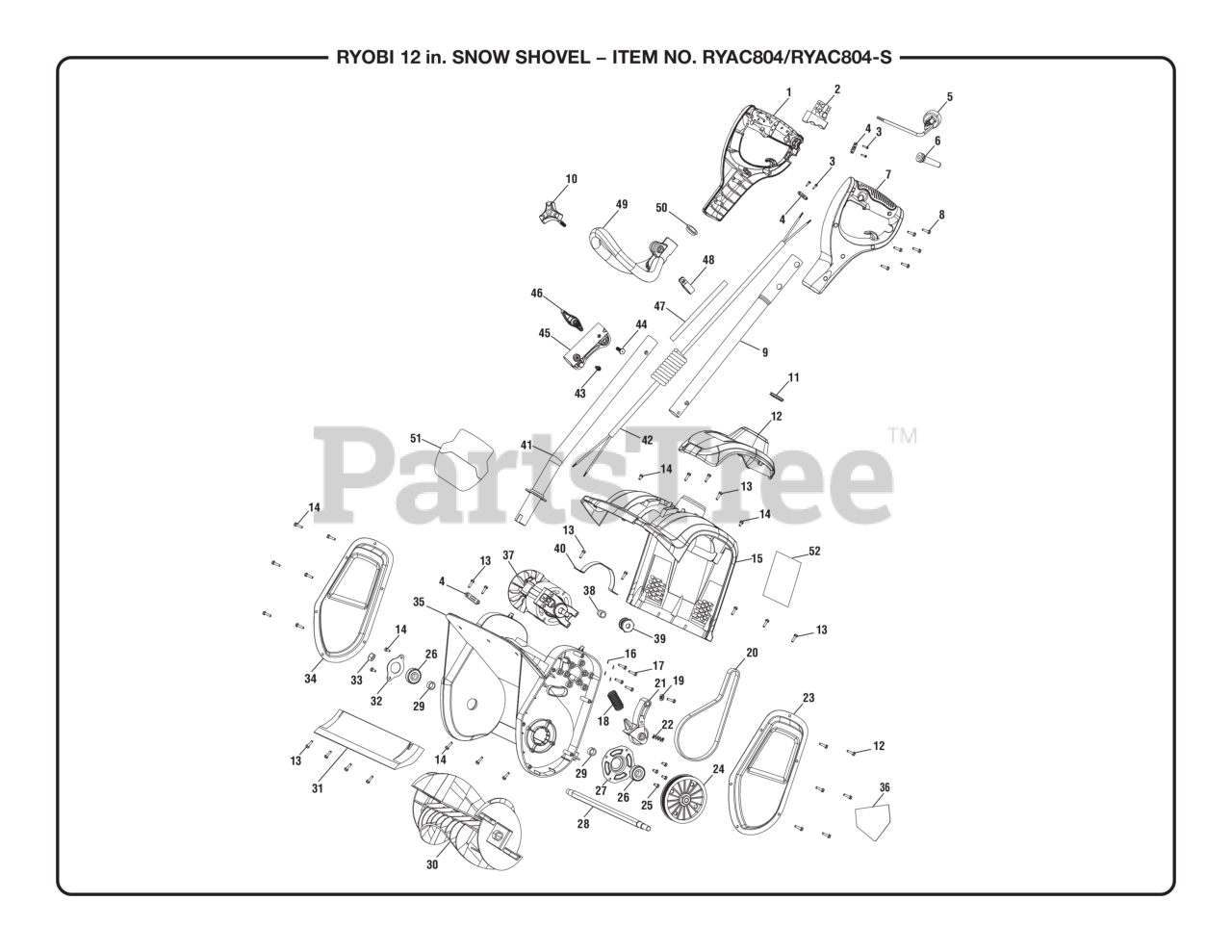

RY AC804 (099735004) - Ryobi 12" Snow Shovel, Rev 02 (2019-12) General Assembly Parts Diagram

12" Snow Shovel, Rev 02

General Assembly Parts Diagram

  • Title

1

Homelite 34107263AC

Handle (Right)

$

$

Not available

2

Homelite 36301263AD

Switch

$

$

Not available

3

Homelite 32202517

Screw (M4 x 10 mm)

$

$

Not available

4

Homelite 3410302

Strain Relief

$

$

Not available

5

Homelite 36401263

Power Cord

$

$

Not available

6

Homelite 3420102-1

Bushing

$

$

Not available

7

Homelite 34106263AC

Handle (Left)

$

$

Not available

8

Homelite 3220505D

Screw (M4 x 16 mm)

$

$

Not available

9

Homelite 333011470AC

Upper Shaft

$

$

Not available

10

Homelite 34116884AG

Knob Screw (Front Handle)

$

$

Not available

11

Homelite 342011468

Seal

$

$

Not available

12

Homelite 341061468B

Top Cover

$

$

Not available

13

Homelite 32205877

Screw (M4.2 x 16 mm)

$

$

Not available

14

Homelite 32205836

Screw (M4.2 x 12 mm)

$

$

Not available

15

Homelite 341011468B

Shroud

Note: (RYAC804)

$

$

Not available

16

Homelite 3290250

Washer

$

$

Not available

17

Homelite 3220598

Screw (Pan Hd.)

$

$

Not available

18

Homelite 3390198

Compression Spring

$

$

Not available

19

Homelite 34901897

Gasket

$

$

Not available

20

Homelite 329011468

Belt

$

$

Not available

21

Homelite 3111198

Idler Assembly

$

$

Not available

22

Homelite 3390298

Compression Spring

$

$

Not available

23

Homelite 333051468

Cover (Left)

$

$

Not available

24

Homelite 341051468

Large Pulley Assembly w/Insert

$

$

Not available

25

Homelite 3220401

Screw (M4.2 × 9.5 mm)

$

$

Not available

26

Homelite 321011468

Ball Bearing (6201-2RS)

$

$

Not available

27

Homelite 333011468

Bearing Plate (Left)

$

$

Not available

28

Homelite 332011468

Shaft

$

$

Not available

29

Homelite 332021468

Sleeve Bearing

$

$

Not available

30

Homelite 341031468AD

Auger (Impeller)

$

$

Not available

31

Homelite 341041468

Scraper Blade

$

$

Not available

32

Homelite 333021468

Bearing Plate (Right)

$

$

Not available

33

Homelite 32910131

Lock Nut (M10)

$

$

Not available

34

Homelite 333061468

Cover (Right)

$

$

Not available

35

Homelite 341021468AC

Lower Housing.

$

$

Not available

36

Homelite 941641001

Danger Label (No Hands/Feet)

$

$

Not available

37

Homelite 361012615

Motor Assembly

$

$

Not available

38

Homelite 333021206

Motor Pulley Spacer

$

$

Not available

39

Homelite 3320399-12

Small Pulley

$

$

Not available

40

Homelite 333031470

Motor Bracket

$

$

Not available

41

Homelite 333021470AC

Lower Shaft

$

$

Not available

42

Homelite 364011470

Coiled Wire Assembly

$

$

Not available

43

Homelite 32201155

Screw (M5 x 9 mm, Pan Hd.)

$

$

Not available

44

Homelite 322041437

Bolt

$

$

Not available

45

Homelite 333031437

Coupler

$

$

Not available

46

Homelite 341111437AE

Knob (Shaft)

$

$

Not available

47

Homelite 36301623

Tube

$

$

Not available

48

Homelite 333051429

Clamp

$

$

Not available

49

Homelite 34105874

Front Handle

$

$

Not available

50

Homelite 34203625

Bushing

$

$

Not available

51

Homelite 941194074

Performance Label

$

$

Not available

52

Homelite 941588266

Data Label

Note: (RYAC804)

$

$

Not available

Homelite 995000559

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
