RY AC803 (099871001) - Ryobi 20" Snow Blower General Assembly Parts Diagram

20" Snow Blower

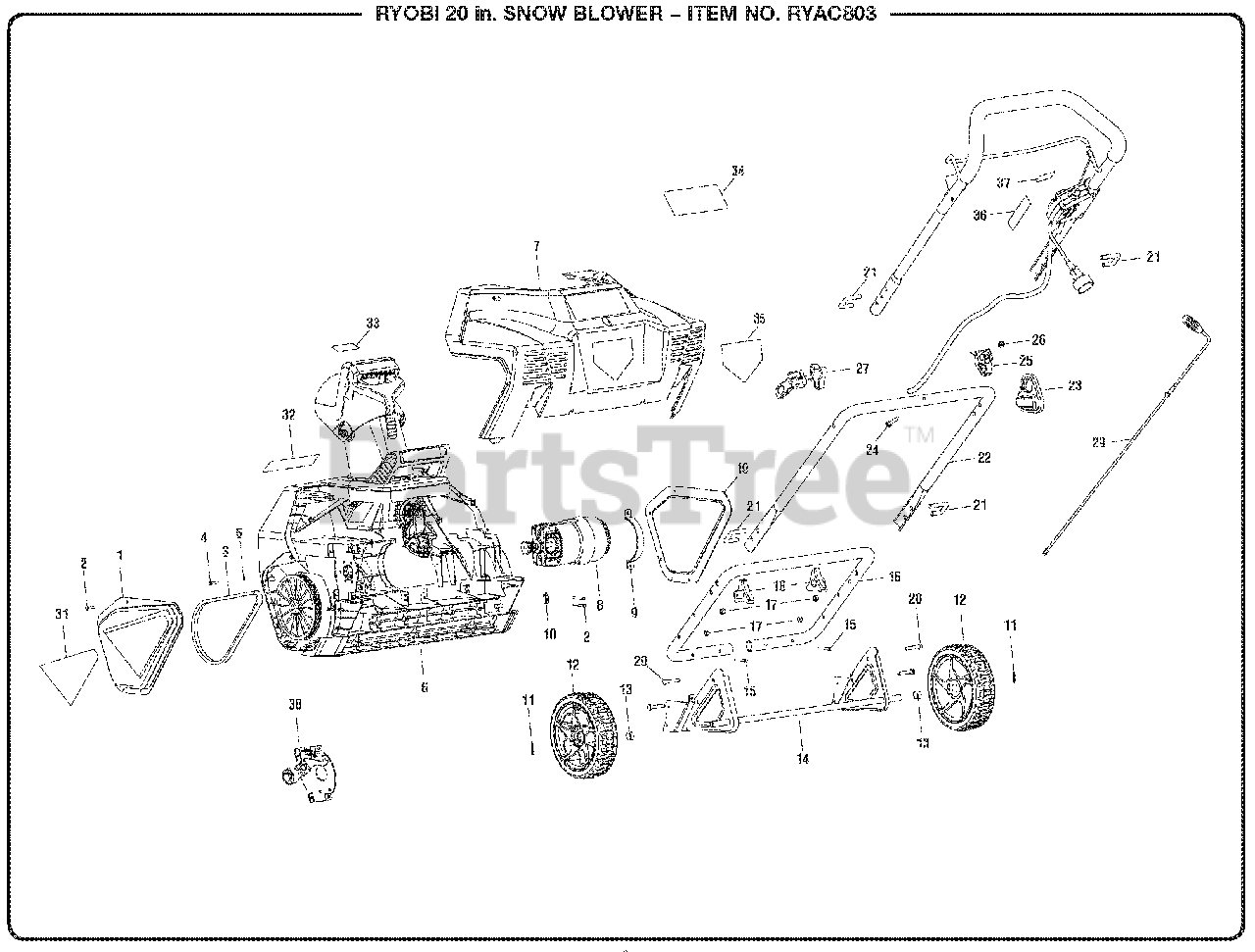

General Assembly Parts Diagram

  • Title

1

Homelite 099871001001

Left Side Cover
(Superseded to 099871002001)

Note: (Inc. Key No. 31)

$

$

Not available

2

Homelite 099871001002

Screw

$

$

Not available

3

Homelite 099871001003

Belt

$

$

Not available

4

Homelite 099871001004

Screw

$

$

Not available

5

Homelite 099871001005

Washer

$

$

Not available

6

Homelite 099871001006

Front Housing

Note: (Inc. Key Nos. 32-33)

$

$

Not available

7

Homelite 099871001007

Back Housing
(Superseded to 099871002007)

Note: (Inc. Key Nos. 34-35)

$

$

Not available

8

Homelite 099871001008

Motor
(Superseded to 099871002008)

$

$

Not available

9

Homelite 099871001009

Motor Bracket

$

$

Not available

10

Homelite 099871001010

Wire Clamp

$

$

Not available

11

Homelite 099871001011

Hitch Pin

$

$

Not available

12

Homelite 099871001012

Wheel

$

$

Not available

13

Homelite 099871001013

Spacer

$

$

Not available

14

Homelite 099871001014

Axle

$

$

Not available

15

Homelite 099871001015

Screw

$

$

Not available

16

Homelite 099871001016

Lower Handle Assembly

$

$

Not available

17

Homelite 099871001017

Nut

$

$

Not available

18

Homelite 099871001018

Knob

$

$

Not available

19

Homelite 099871001019

Right Side Cover
(Superseded to 099871002019)

$15.99

$

Usually ships in 3-7 days

0

20

Homelite 099871001020

Bolt

$

$

Not available

21

Homelite 099871001021

U-Bolt

$

$

Not available

22

Homelite 099871001022

Middle Handle Assembly

$

$

Not available

23

Homelite 099871001023

Cord Retainer

$

$

Not available

24

Homelite 099871001024

Bolt

$

$

Not available

25

Homelite 099871001025

Lever Bracket

$

$

Not available

26

Homelite 099871001026

Nut

$

$

Not available

27

Homelite 099871001027

Clamp Knob

$

$

Not available

28

Homelite 099871001028

Upper Handle Assembly
(Superseded to 099871002028)

Note: (Inc. Key Nos. 36-37)

$76.99

$

Usually ships in 3-7 days

0

29

Homelite 099871001029

Chute Adjustment Lever

$

$

Not available

30

Homelite 099871001030

Belt Tensioner Assembly

$

$

Not available

31

Homelite 940851114

Logo Label

$

$

Not available

32

Homelite 940705316

Front Logo Label

$

$

Not available

33

Homelite 940657084

Chute Icon Label

$

$

Not available

34

Homelite 941588112

Data Label

$

$

Not available

35

Homelite 941641001

Danger Label, No Hands/Feet

$

$

Not available

36

Homelite 940851108

Start Label

$

$

Not available

37

Homelite 940705315

Handle Logo Label

$

$

Not available

Homelite 991000675

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
