RY AC801 - Ryobi Snow Blower General Assembly Parts Diagram

Snow Blower

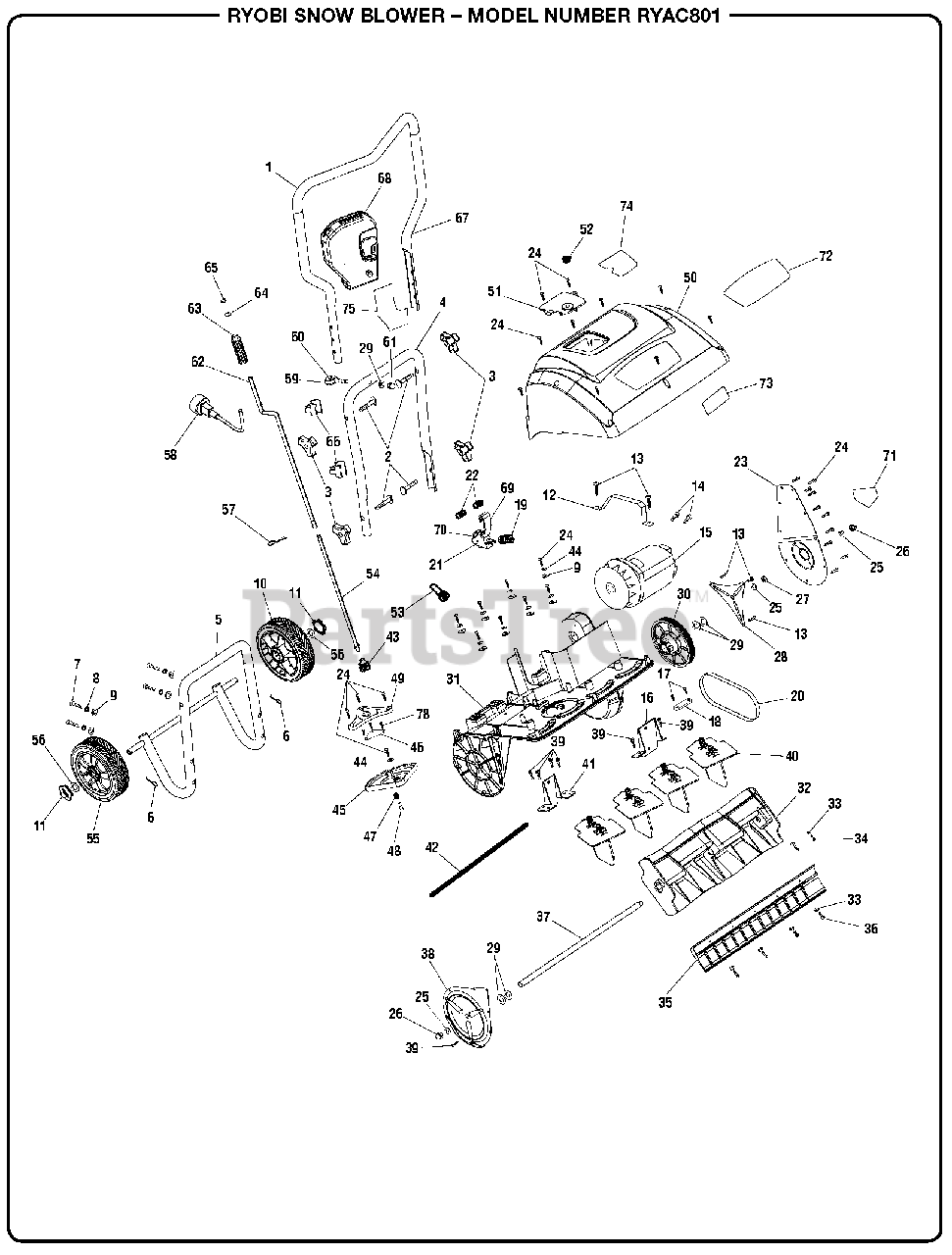

General Assembly Parts Diagram

  • Title

1

Homelite 099734001001

Grip

$

$

Not available

2

Homelite 099734001002

Bolt (M8 x 50 mm))

$

$

Not available

3

Homelite 099734001003

Knob

$

$

Not available

4

Homelite 099734001004

Handle (Middle)

$

$

Not available

5

Homelite 099734001005

Handle (Lower)

$

$

Not available

6

Homelite 099734001006

Hitch Pin

$

$

Not available

7

Homelite 099734001007

Screw (M6 x 40 mm)

$

$

Not available

8

Homelite 099734001008

Spring Washer

$

$

Not available

9

Homelite 099734001009

Flat Washer (M6)

$

$

Not available

10

Homelite 099734001010

Wheel (Left)

$

$

Not available

11

Homelite 099734001011

Wheel Cap

$

$

Not available

12

Homelite 099734001012

Motor Bracket

$

$

Not available

13

Homelite 099734001013

Screw (M5 x 20 mm)

$

$

Not available

14

Homelite 099734001014

Screw (M5 x 18 mm))

$

$

Not available

15

Homelite 099734001015

Motor Assembly

$

$

Not available

16

Homelite 099734001016

Left Bracket

$

$

Not available

17

Homelite 099734001017

Screw (M4 x 20 mm)

$

$

Not available

18

Homelite 099734001018

Wire Clamp.

$

$

Not available

19

Homelite 099734001019

Spring (Tension Wheel)

$

$

Not available

20

Homelite 099734001020

Belt

$

$

Not available

21

Homelite 099734001021

Board (Tension Wheel)

$

$

Not available

22

Homelite 099734001022

Spring (Tension Wheel)

$

$

Not available

23

Homelite 099734001023

Belt Cover

$

$

Not available

24

Homelite 099734001024

Screw (M4 x 15 mm)

$

$

Not available

25

Homelite 099734001025

Washer (M10)

$

$

Not available

26

Homelite 099734001026

Nut (M10)

$

$

Not available

27

Homelite 099734001027

Nut (M10)

$

$

Not available

28

Homelite 099734001028

Pulley Bracket

$

$

Not available

29

Homelite 099734001029

Washer (ID13.5 x 1.5 t)

$

$

Not available

30

Homelite 099734001030

Belt Pulley Assembly

$

$

Not available

31

Homelite 099734001031

Lower Housing

$

$

Not available

32

Homelite 099734001032

Auger

$

$

Not available

33

Homelite 099734001033

Washer (M4).

$

$

Not available

34

Homelite 099734001034

Screw (M4 x 13 mm)

$

$

Not available

35

Homelite 099734001035

Scrapper

$

$

Not available

36

Homelite 099734001036

Screw (M4 x 13 mm)

$

$

Not available

37

Homelite 099734001037

Auger Shaft

$

$

Not available

38

Homelite 099734001038

Board

$

$

Not available

39

Homelite 099734001039

Screw (M4 x 13 mm)

$

$

Not available

40

Homelite 099734001040

Snow Direction Finj

$

$

Not available

41

Homelite 099734001041

Steel Bracket (Right)

$

$

Not available

42

Homelite 099734001042

Connection Rod.

$

$

Not available

43

Homelite 099734001043

Pinion

$

$

Not available

44

Homelite 099734001044

Washer (M8)

$

$

Not available

45

Homelite 099734001045

Gear

$

$

Not available

46

Homelite 099734001046

Metal Plate

$

$

Not available

47

Homelite 099734001047

Gear Spring

$

$

Not available

48

Homelite 099734001048

Spring Board

$

$

Not available

49

Homelite 099734001049

Clip.

$

$

Not available

50

Homelite 099734001050

Upper Housing

$

$

Not available

51

Homelite 099734001051

Cover

$

$

Not available

52

Homelite 099734001052

Rubber Seal Ring

$

$

Not available

53

Homelite 099734001053

Rubber Bushing

$

$

Not available

54

Homelite 099734001054

Rod Lower

$

$

Not available

55

Homelite 099733001058

Wheel (Right)

$

$

Not available

56

Homelite 099734001056

Washer (ID13 x 2t)

$

$

Not available

57

Homelite 099734001057

Hitch Pin

$

$

Not available

58

Homelite 099734001058

Power Cord

$

$

Not available

59

Homelite 099734001059

Screw

$

$

Not available

60

Homelite 099733001043

Rubber Eyelet

$

$

Not available

61

Homelite 099734001061

Nut (M8)

$

$

Not available

62

Homelite 099734001062

Upper Rod

$

$

Not available

63

Homelite 099734001063

Handle

$

$

Not available

64

Homelite 099734001064

Washer (M5)

$

$

Not available

65

Homelite 099734001065

Clip

$

$

Not available

66

Homelite 099734001066

Wire Hook

$

$

Not available

67

Homelite 099733001047

Upper Handle

$

$

Not available

68

Homelite 099734001068

Switch Box

$

$

Not available

69

Homelite 099734001069

Bracket (Tension Wheel)

$

$

Not available

70

Homelite 099734001070

Bearing

$

$

Not available

71

Homelite 941641001

Danger Label (No Hands/Feet)

$

$

Not available

72

Homelite 940851018

Performance/Logo Label

$

$

Not available

73

Homelite 940657084

Chute Icon Label

$

$

Not available

74

Homelite 940657083

Data/Warning Label

$

$

Not available

75

Homelite 9408511020

Starting Instructions/Logo Label

$

$

Currently unavailable

Homelite 991000137

Operator's Manual

Note: Not Shown

$

$

Not available
