RY AC800 - Ryobi Snow Blower General Assembly Parts Diagram

Snow Blower

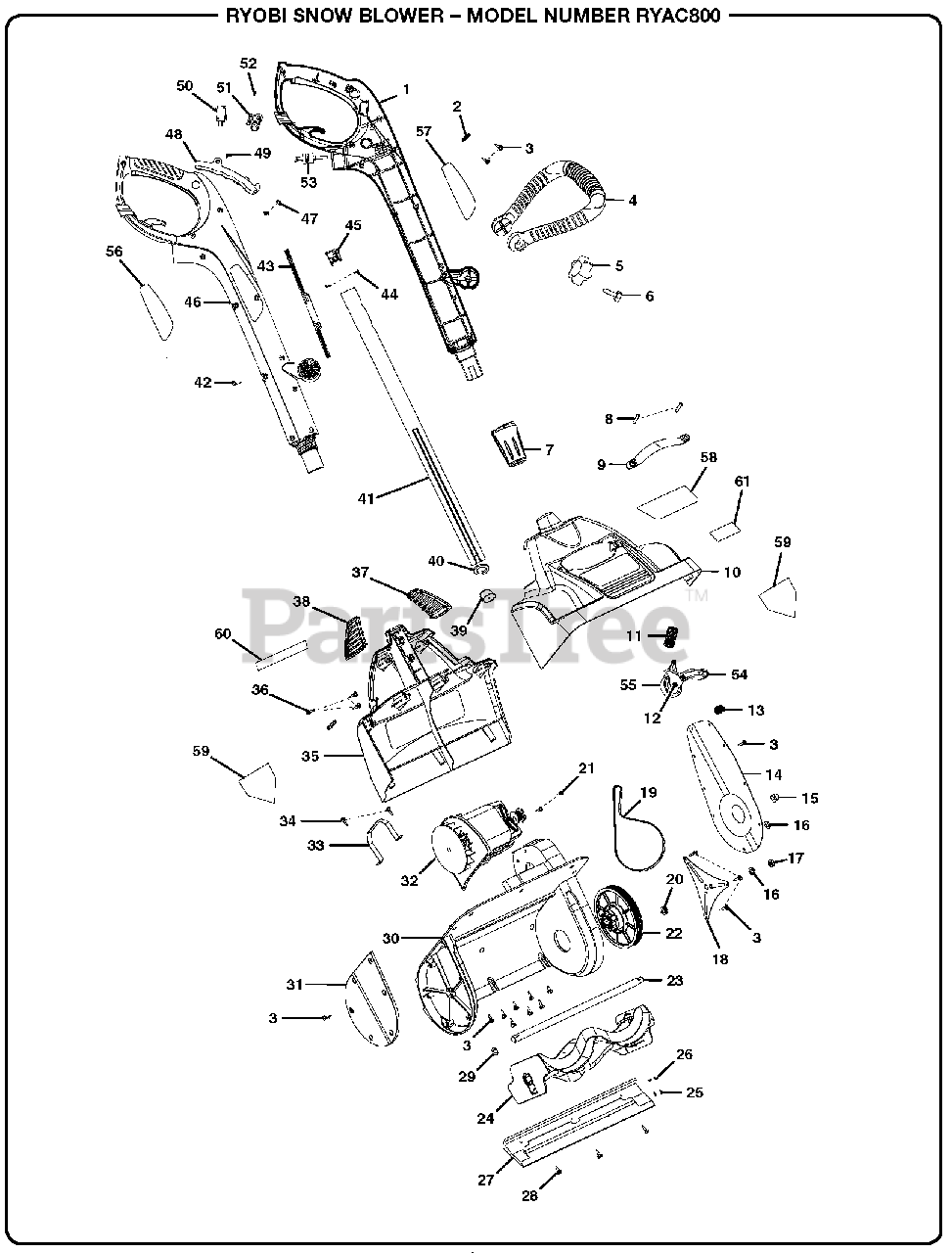

General Assembly Parts Diagram

  • Title

1

Homelite 099735001001

Left Handle

$

$

Not available

2

Homelite 099735001003

Wire Clamp

$

$

Not available

3

Homelite 099735001004

Screw (M4 x 15 mm)

$

$

Not available

4

Homelite 099735001005

Auxiliary Handle

$

$

Not available

5

Homelite 099735001006

Knob

$

$

Not available

6

Homelite 099735001007

Bolt

$

$

Not available

7

Homelite 099735001008

Coupler

$

$

Not available

8

Homelite 099735001009

Screw (M6 x 25 mm)

$

$

Not available

9

Homelite 099735001055

Handle

$

$

Not available

10

Homelite 099735001010

Front Housing (Upper)

$

$

Not available

11

Homelite 099735001011

Spring

$

$

Not available

12

Homelite 099735001012

Board (Tension Wheel)

$

$

Not available

13

Homelite 099735001013

Spring

$

$

Not available

14

Homelite 099735001014

Left Cover

$

$

Not available

15

Homelite 099735001015

Nut (M10)

$

$

Not available

16

Homelite 099735001016

Washer (M10)

$

$

Not available

17

Homelite 099735001017

Nut (M10)

$

$

Not available

18

Homelite 099735001018

Pulley Bracket

$

$

Not available

19

Homelite 099735001019

Belt

$

$

Not available

20

Homelite 099735001020

Washer (M13)

$

$

Not available

21

Homelite 099735001021

Screw (M5 x 18 mm)

$

$

Not available

22

Homelite 099735001022

Belt Pulley
(Superseded to 099734001030)

$

$

Not available

23

Homelite 099735001023

Shaft

$

$

Not available

24

Homelite 099735001024

Auger

$

$

Not available

25

Homelite 099735001025

Screw (M4 x 12 mm)

$

$

Not available

26

Homelite 099735001026

Washer (M4)

$

$

Not available

27

Homelite 099735001027

Scraper

$

$

Not available

28

Homelite 099735001028

Screw (M4 x 13 mm)

$

$

Not available

29

Homelite 099735001029

Washer (M4)

$

$

Not available

30

Homelite 099735001030

Lower Housing

$

$

Not available

31

Homelite 099735001031

Right Cover

$

$

Not available

32

Homelite 099735001032

Motor Assembly

$

$

Not available

33

Homelite 099735001033

Motor Bracket

$

$

Not available

34

Homelite 099735001034

Screw (M48 x 15 mm)

$

$

Not available

35

Homelite 099735001035

Upper Back Housing

$

$

Not available

36

Homelite 099735001036

Screw (M4 x 18 mm)

$

$

Not available

37

Homelite 099735001037

Left Venting

$

$

Not available

38

Homelite 099735001038

Right Venting

$

$

Not available

39

Homelite 099735001039

Bend Relief

$

$

Not available

40

Homelite 099735001040

Washer (Rubber)

$

$

Not available

41

Homelite 099735001041

Tube

$

$

Not available

42

Homelite 099735001042

Screw (M4 x 10 mm)

$

$

Not available

43

Homelite 099735001043

Wire

$

$

Not available

44

Homelite 099735001044

Screw (M35 x 8 mm)

$

$

Not available

45

Homelite 099735001045

Bushing

$

$

Not available

46

Homelite 099735001002

Right Handle

$

$

Not available

47

Homelite 099735001046

Terminal (B)

$

$

Not available

48

Homelite 099735001047

Trigger

$

$

Not available

49

Homelite 099735001048

Spring

$

$

Not available

50

Homelite 099735001049

Switch

$

$

Not available

51

Homelite 099735001050

Lockout Button

$

$

Not available

52

Homelite 099735001051

Lockout Spring

$

$

Not available

53

Homelite 099735001052

Prong

$

$

Not available

54

Homelite 099735001053

Bracket (Tension Wheel)

$

$

Not available

55

Homelite 099735001054

Bearing

$

$

Not available

56

Homelite 940851015

Logo Label (Left)

$

$

Not available

57

Homelite 940851016

Logo Label (Right)

$

$

Not available

58

Homelite 940851017

Performance/Logo Label

$

$

Not available

59

Homelite 941641001

Danger Label (No Hands/Feet)

$

$

Not available

60

Homelite 940657082

Data/Warning Label

$

$

Not available

61

Homelite 940657084

Chute Icon Label

$

$

Not available

Homelite 991000135

Operator's Manual

Note: Not Shown

$

$

Not available
