RY AC701 (099040002) - Ryobi Cultivator, Electric, Rev 02 (2019-05) General Assembly Parts Diagram

Cultivator, Electric, Rev 02

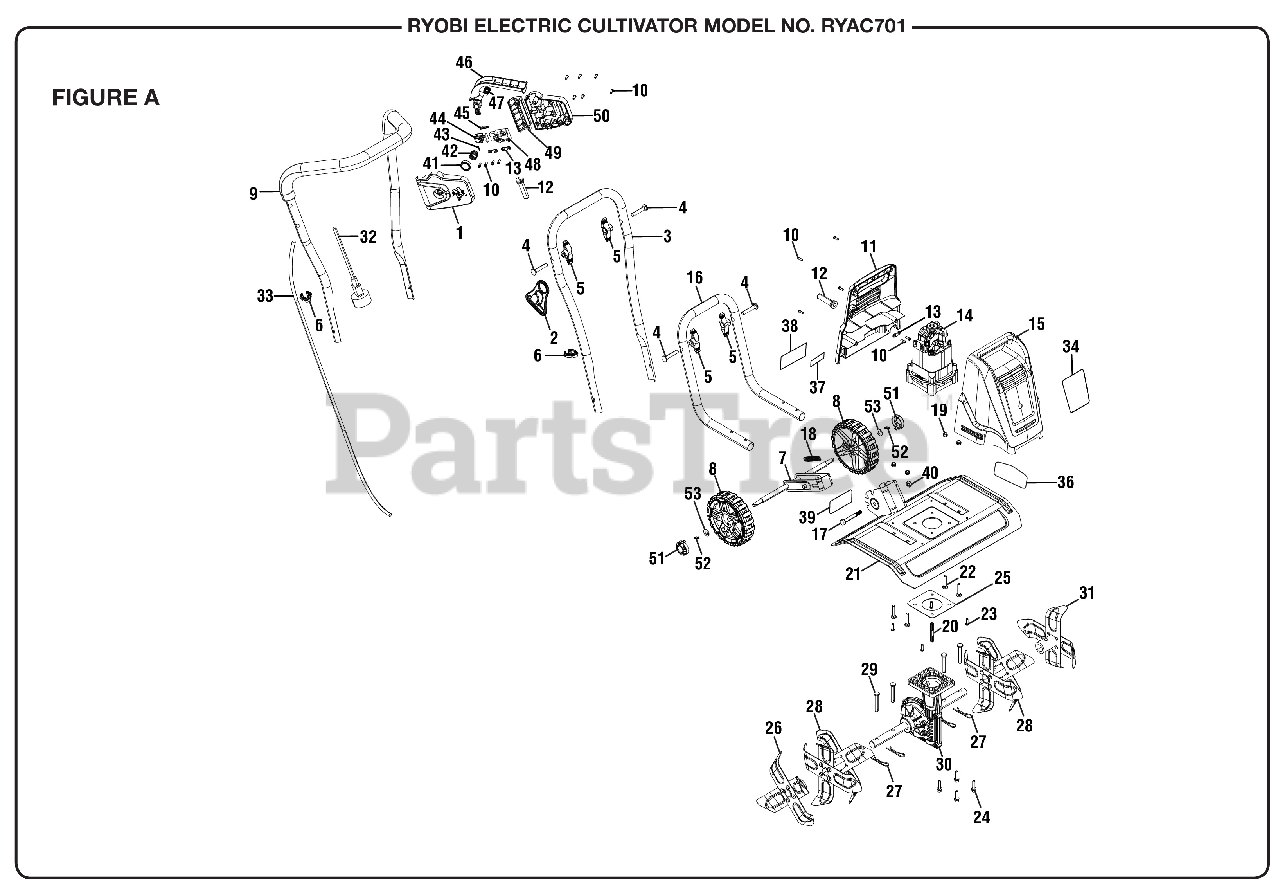

General Assembly Parts Diagram

  • Title

1

Homelite 996808001

Switch Box (Upper)

$5.49

$

Usually ships in 3-7 days

0

2

Homelite 996816001

Cord Retainer

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 996818001

Lower Handle

$26.99

$

Usually ships in 3-7 days

0

4

Homelite 996814001

Carriage Bolt (M8 x 45 mm)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 996815001

Knob

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 996817001

Cord Hook

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 996940001

Wheel Height Adjusting Assembly

$22.99

$

Usually ships in 3-7 days

0

8

Homelite 996912001

Wheel Assembly

$11.99

$

In Stock, only 2 left!

0

9

Homelite 996891001

Upper Handle Assembly

$36.99

$

Usually ships in 3-7 days

0

10

Homelite 996799001

Screw (M4 x 12 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 996827001

Motor Housing (Rear)

$10.99

$

Usually ships in 3-7 days

0

12

Homelite 996798001

Bend Relief

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 996800001

Cord Clamp

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 996962001

Motor Assembly

$304.99

$

Usually ships in 3-7 days

0

15

Homelite 996828001

Motor Housing (Front)

$18.99

$

Usually ships in 3-7 days

0

16

Homelite 996941001

Handle Frame (Lower)

$22.99

$

Usually ships in 3-7 days

0

17

Homelite 996924001

Bolt (M6 x 50 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 996956001

Height Adjustment Spring

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 996836001

Lock Nut (M6)

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 996916001

Shaft

$5.49

$

Usually ships in 3-7 days

0

21

Homelite 996955001

Blade Shield

$71.99

$

Usually ships in 3-7 days

0

22

Homelite 996849001

Carriage Bolt (M6 x 35 mm)

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 996834001

Screw (M5 x 16 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 996854001

Screw (M6 x 25 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 996850001

Seal

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 996915001

Blade Assembly (Right)

$29.99

$

Usually ships in 3-7 days

0

27

Homelite 997122001

Cotter Pin

$1.99

$

In Stock, only 1 left!

0

28

Homelite 996902001

Blade Assembly

$50.99

$

In Stock, only 1 left!

0

29

Homelite 997121001

Clevis Pin

$1.99

$

In Stock, only 3 left!

0

30

Homelite 996954001

Transmission Assembly

$229.99

$

Usually ships in 3-7 days

0

31

Homelite 996914001

Blade Assembly (Left)

$29.99

$

Usually ships in 3-7 days

0

32

Homelite 996960001

Power Cord w/Plug

$9.99

$

Usually ships in 3-7 days

0

33

Homelite 996961001

Power Cord

$15.99

$

Usually ships in 3-7 days

0

34

Homelite 941021012

Logo Label

$3.49

$

Usually ships in 3-7 days

0

35

Homelite 941021016

Icon Warning Label

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 940851447

Warning Label (French/Spanish)

$1.99

$

Usually ships in 3-7 days

0

37

Homelite 941021018

No Hands/No Feet Label

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 941021013

Data Warning Label

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 941021015

Wheel Adjustment Label

$1.99

$

Usually ships in 3-7 days

0

40

Homelite 996966001

Lock Nut (M8)

$1.99

$

Usually ships in 3-7 days

0

41

Homelite 996810001

Switch Button

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 996809001

Compression Spring (Switch Button)

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 996811001

Pin

$1.99

$

Usually ships in 3-7 days

0

44

Homelite 996806001

Switch Push Rod

$1.99

$

In Stock, only 4 left!

0

45

Homelite 996805001

Compression Spring (Switch Push Rod)

$1.99

$

In Stock, only 4 left!

0

46

Homelite 996804001

Lever

$2.49

$

In Stock, Qty 7

0

47

Homelite 996803001

Torsion Spring (Trigger Lever)

$1.99

$

In Stock, only 4 left!

0

48

Homelite 996807001

Switch

$12.99

$

Usually ships in 3-7 days

0

49

Homelite 996801001

Handle Fixing Plate

$2.49

$

Usually ships in 3-7 days

0

50

Homelite 996802001

Switch Box (Lower)

$4.99

$

Usually ships in 3-7 days

0

51

Homelite 996848001

Wheel Hub

$1.99

$

Usually ships in 3-7 days

0

52

Homelite 996847001

Steel Hook

$1.99

$

Usually ships in 3-7 days

0

53

Homelite 996903001

Washer (ID10 x OD18 x 1.5t)

$1.99

$

Usually ships in 3-7 days

0

Homelite 995000657

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
